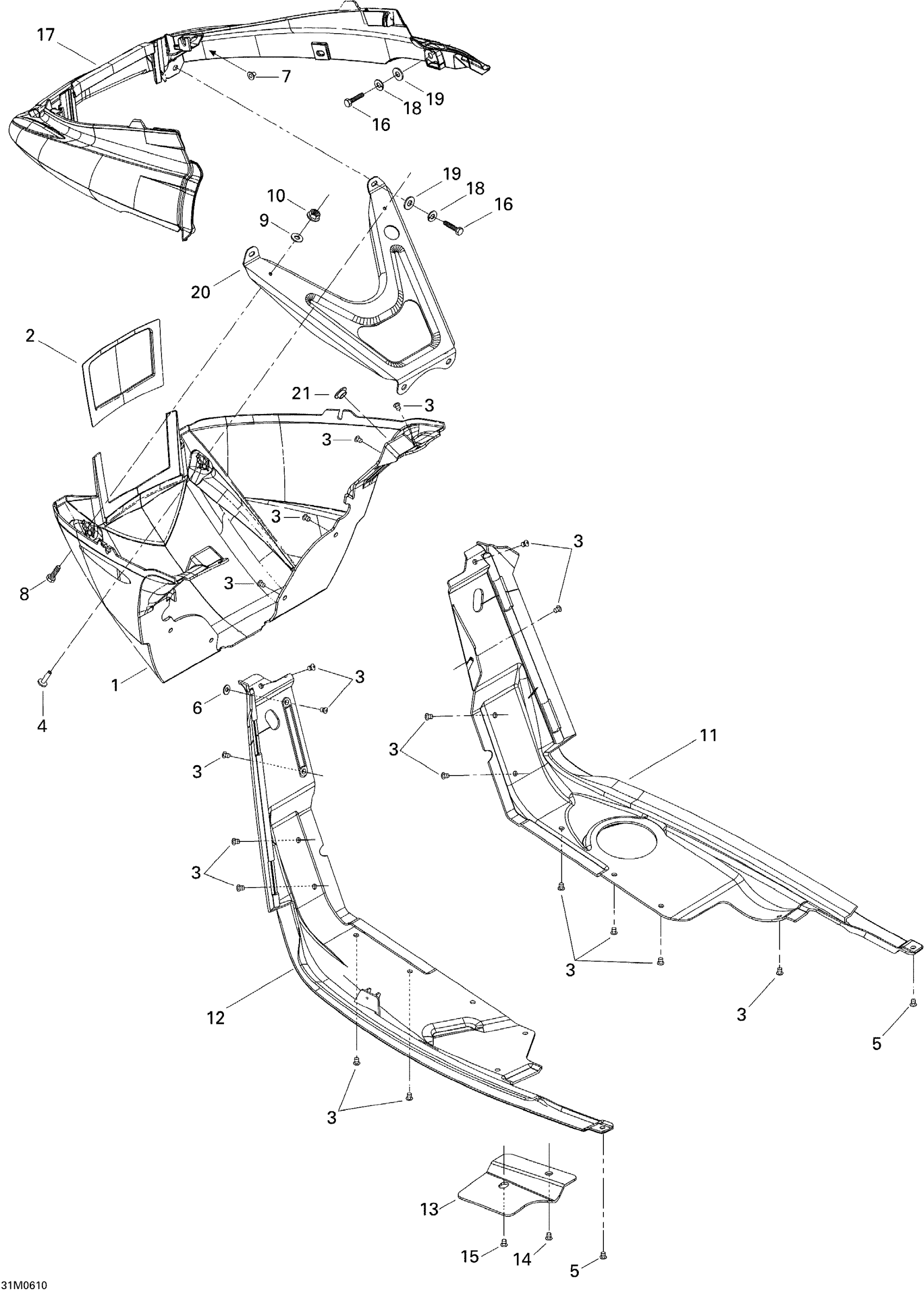

Ski-Doo MX Z 440 Racing, 2006 Bottom Pan Diagram

#

Description
Price

1

FRONT BOTTOM PAN - Call your local BRP dealership

502006733

Unavailable

2

BOTTOM PAN PLATE - Call your local BRP dealership

502006706

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4

Pop Rivet 3/16"

293150100

$1.04

5

Pop Rivet 3/16"

293150103

$0.52

6

Washer

517124300

$0.18

7

Nut Welded, M6

293100003

$7.25

8

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

9

Washer | DS 650 X

391301600

$0.46

10

Hex. Flange Elastic Nut M5

233251414

$1.91

11

RH BOTTOM PAN - Call your local BRP dealership

502006729

Unavailable

12

LH BOTTOM PAN - Call your local BRP dealership

502006730

Unavailable

13

Bracket

502006799

Unavailable

14

Avex Rivet

390909200

$0.28

15

Pop Rivet 3/16”

390410100

$0.52

16

Hex. Screw M6 X 14

207161444

$0.55

17

Bumper, Yellow

502006680

$150.72

18

Lock Washer M6, Black

234161471

$0.51

19

Flat Washer

224061121

$0.51

20

Support

502006772

$35.04

21

Black, Nylon Cap

414916600

$4.19
