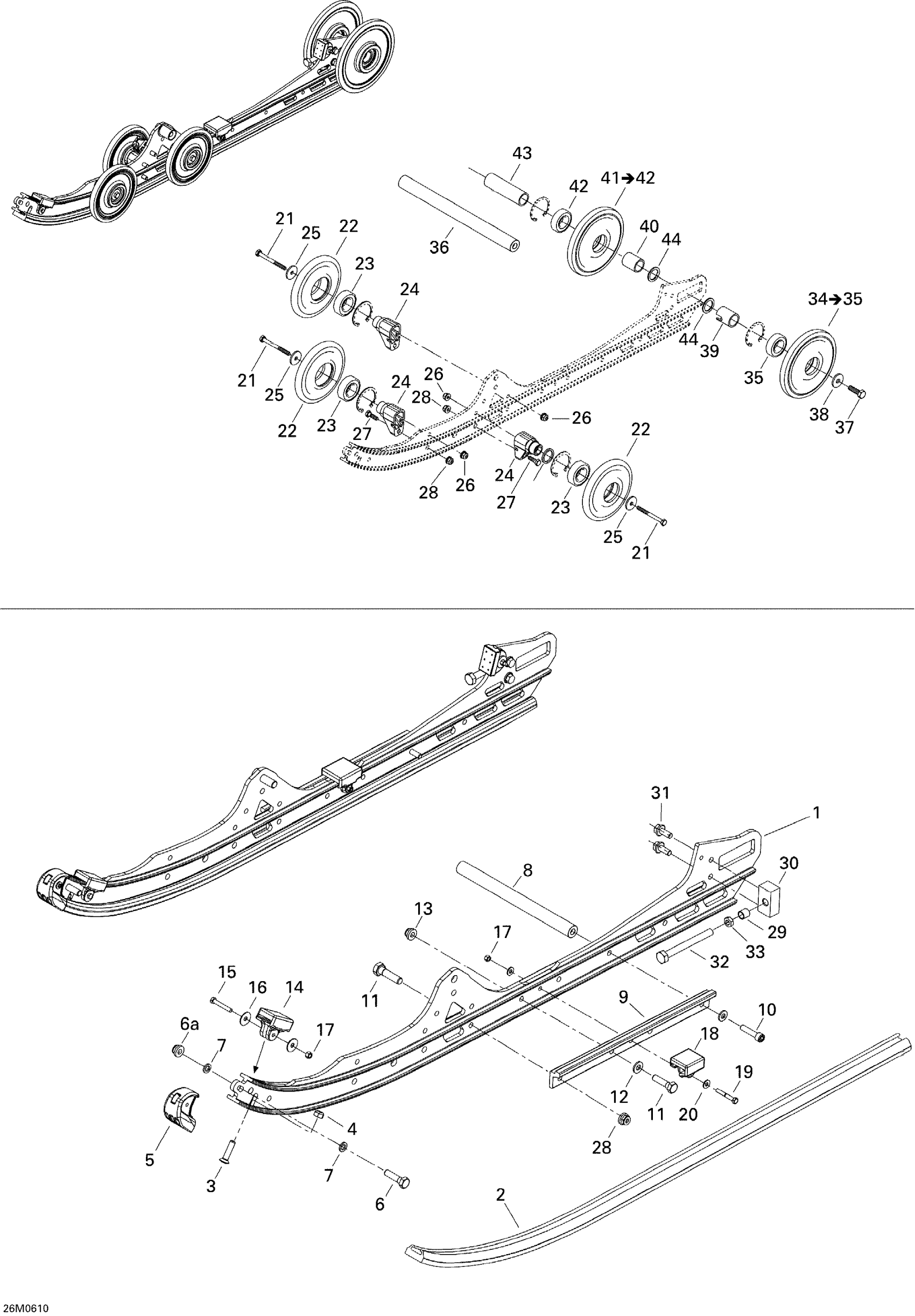

Ski-Doo MX Z 440 Racing, 2006 08- Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION - Call your local BRP dealership

503191256

Unavailable

2

Slider Shoe

503190629

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

6a

Elastic Stop Nut M5

232551414

$0.87

7

Washer | DS 650 X

391301600

$0.48

8

Axle

503151600

$18.49

9

RAIL REINFORCEMENT - Call your local BRP dealership

503190647

Unavailable

10

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

11

Hex. Screw M8 X 30

207183044

$1.15

12

Washer

503189157

$3.28

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Rubber Stopper

503190576

$12.99

15

Hex. Screw M5 X 30

207053044

$1.16

16

Washer

250200016

$0.74

17

Elastic Stop Nut M5

232551414

$0.87

18

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

19

Hex. Screw M5 X 35

207053544

$1.15

20

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

21

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

22

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

23

Ball Bearing | Package-STD

503190396

$14.30

24

Support

503190580

Unavailable

25

Washer

211200041

$3.17

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Hex. Screw M8 X 25

207182544

$0.90

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

30

Tensioner

503190827

Unavailable

31

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

32

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

33

Hex. Nut M10 X 1.5

232006414

$1.37

34

Wheel 180

503190799

$51.99

35

Ball Bearing

293350115

$12.11

36

Rear Axle

503167900

$139.99

37

Hex. Screw With Nylon

250000019

$1.69

38

Washer

503183300

$5.82

39

Outer Spacer

503189809

$18.89

40

Inner Spacer

503182900

$12.58

41

Wheel 180

503190799

$51.99

42

Ball Bearing

293350115

$12.11

43

Center Spacer

503156000

$12.01

44

Washer

503180400

$3.49
