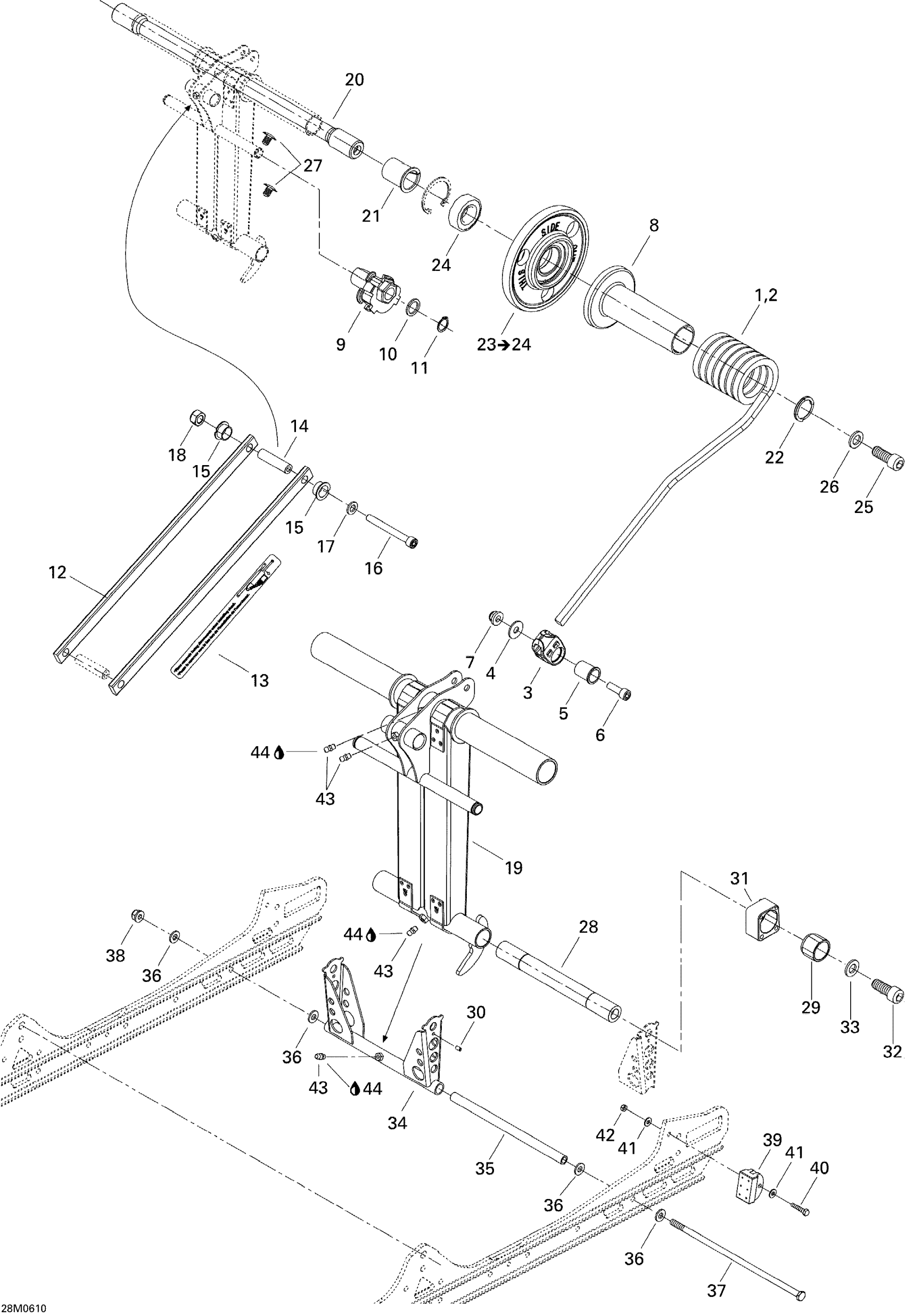

Ski-Doo MX Z 440 Racing, 2006 08- Rear Arm Diagram

#

Description
Price

1

RH Spring

503190999

Unavailable

2

LH Spring

503191000

Unavailable

3

SPRING SUPPORT - Call your local BRP dealership

503190583

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Spring Support Kit

861805547

$10.49

6

Socket Head Screw M8 X 25

205082544

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

PLASTIC BUSHING - Call your local BRP dealership

503190584

Unavailable

9

LH SPRING CAM - Call your local BRP dealership

503190585

Unavailable

9

RH SPRING CAM - Call your local BRP dealership

503190586

Unavailable

10

WASHER - Call your local BRP dealership

503183400

Unavailable

11

CIRCLIP - Call your local BRP dealership

293370043

Unavailable

12

Tie Rod

503190644

Unavailable

13

Shock Position Decal

516005609

$19.99

14

Bar Axle

503191192

$41.49

15

Swivel Bushing

503191555

$7.83

16

Socket Screw M10 X 90

205009044

$8.01

17

Washer

503175800

$3.28

18

Elastic Stop Nut M10

232500416

$1.90

19

Rear Arm

503190645

Unavailable

20

UPPER SHAFT - Call your local BRP dealership

503190618

Unavailable

21

CUSHION - Call your local BRP dealership

503190619

$4.49

22

AXLE SPRING - Call your local BRP dealership

503190690

Unavailable

23

WHEEL 141 - Call your local BRP dealership | Includes 28 to 29

503190620

Unavailable

24

Ball Bearing

503190621

Unavailable

25

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

26

Washer

503189276

$3.28

27

Black, Dart

414644300

$0.98

28

LOWER SHAFT - Call your local BRP dealership

503190725

Unavailable

29

Block Guide

503189488

$39.99

30

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

31

LH Block, 4 Positions

503191563

Unavailable

31

RH Block, 4 Positions

503190622

Unavailable

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

33

Washer | 7415/7416. 7417/7418.

503189148

$2.85

34

PIVOT ARM - Call your local BRP dealership

503191091

Unavailable

35

Pivot Arm Axle

503189156

$21.99

36

Washer

503189157

$3.28

37

Bolt M8 X 248mm

503192440

$30.49

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Rubber Stopper

503191291

$19.99

40

Hex. Screw M5 X 30

207053044

$1.16

41

Washer

250200016

$0.74

42

Elastic Stop Nut M5

232551414

$0.87

43

Grease Fitting

408200700

$3.49

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
