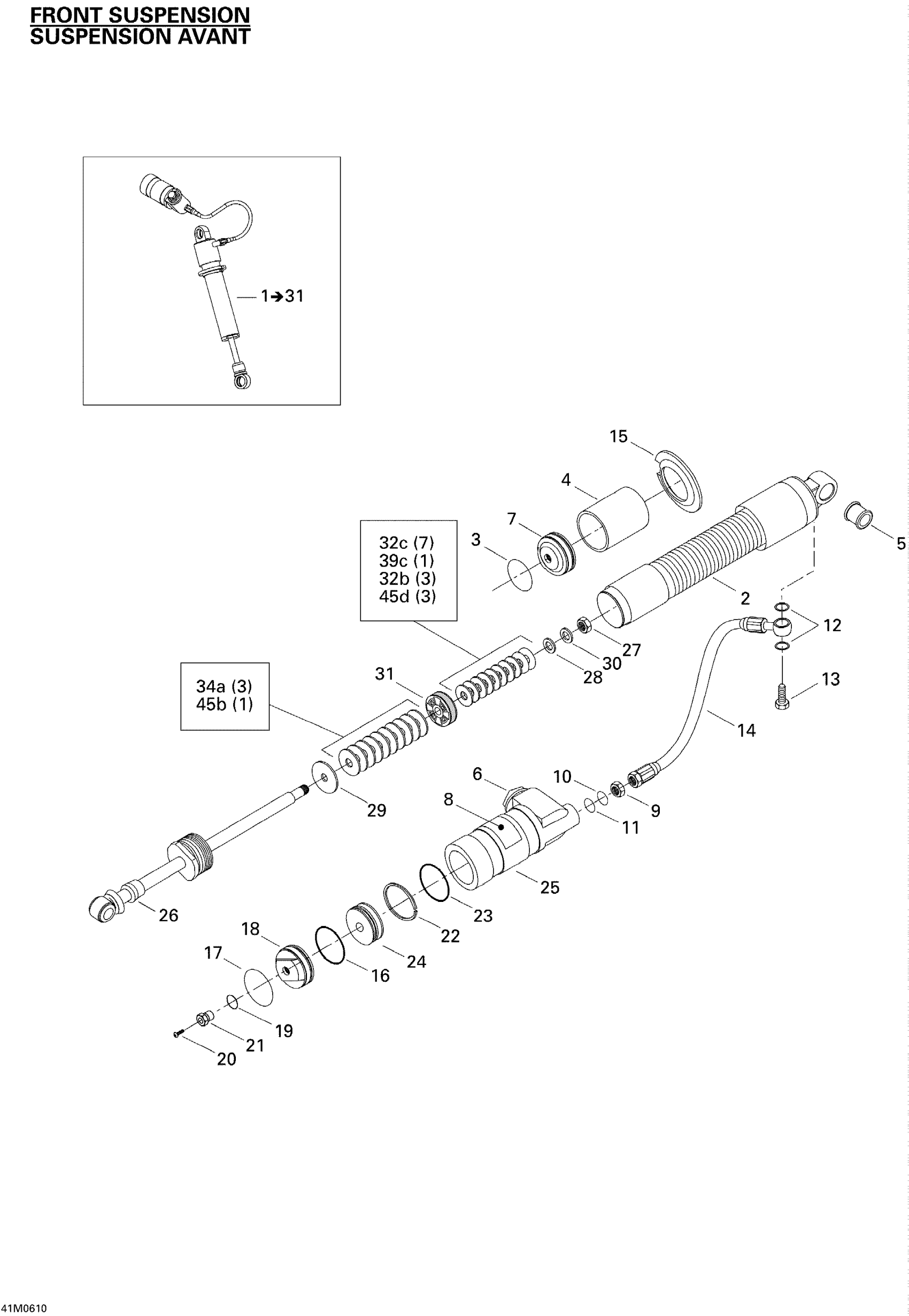

Ski-Doo MX Z 440 Racing, 2006 07- Take Apart Shock, Front Diagram
#
1
RH Front Shock
505070952
Unavailable
1
LH FRONT SHOCK - Call your local BRP dealership
505070953
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
14
HOSE ASS'Y - Call your local BRP dealership
415128591
Unavailable
15
SPRING COLLAR - Call your local BRP dealership
415128598
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Reservoir
415128592
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Piston (2 X 0,3-1) (C36)
415128848
Unavailable
32a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
32b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
32c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
32d
Not Available As Spare Part - Friction Washer
Unavailable
33a
Not Available As Spare Part - Friction Washer
Unavailable
33b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
33c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
33d
Not Available As Spare Part - Friction Washer
Unavailable
34a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
34b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
34c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
34d
Not Available As Spare Part - Friction Washer
Unavailable
35a
Not Available As Spare Part - Friction Washer
Unavailable
35b
Not Available As Spare Part - Friction Washer
Unavailable
35c
Not Available As Spare Part - Friction Washer
Unavailable
35d
Not Available As Spare Part - Friction Washer
Unavailable
36a
Not Available As Spare Part - Friction Washer
Unavailable
36b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
36c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
36d
Not Available As Spare Part - Friction Washer
Unavailable
37a
Not Available As Spare Part - Friction Washer
Unavailable
37b
Not Available As Spare Part - Friction Washer
Unavailable
37c
Not Available As Spare Part - Friction Washer
Unavailable
37d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
38a
Not Available As Spare Part - Friction Washer
Unavailable
38b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
38c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
38d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
39a
Not Available As Spare Part - Friction Washer
Unavailable
39b
Not Available As Spare Part - Friction Washer
Unavailable
39c
Not Available As Spare Part - Friction Washer
Unavailable
39d
Not Available As Spare Part - Friction Washer
Unavailable
40a
Not Available As Spare Part - Friction Washer
Unavailable
40b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
40c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
40d
Not Available As Spare Part - Friction Washer
Unavailable
41a
Not Available As Spare Part - Friction Washer
Unavailable
41b
Not Available As Spare Part - Friction Washer
Unavailable
41c
Not Available As Spare Part - Friction Washer
Unavailable
41d
Not Available As Spare Part - Friction Washer
Unavailable
42a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
42b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
42c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
42d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
43a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
43b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
43c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
43d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
44a
Not Available As Spare Part - Friction Washer
Unavailable
44b
Not Available As Spare Part - Friction Washer
Unavailable
44c
Not Available As Spare Part - Friction Washer
Unavailable
44d
Not Available As Spare Part - Friction Washer
Unavailable
45a
Not Available As Spare Part - Friction Washer
Unavailable
45b
Not Available As Spare Part - Friction Washer
Unavailable
45c
Not Available As Spare Part - Friction Washer
Unavailable
45d
Not Available As Spare Part - Friction Washer
Unavailable
46a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
46b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
46c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
46d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
