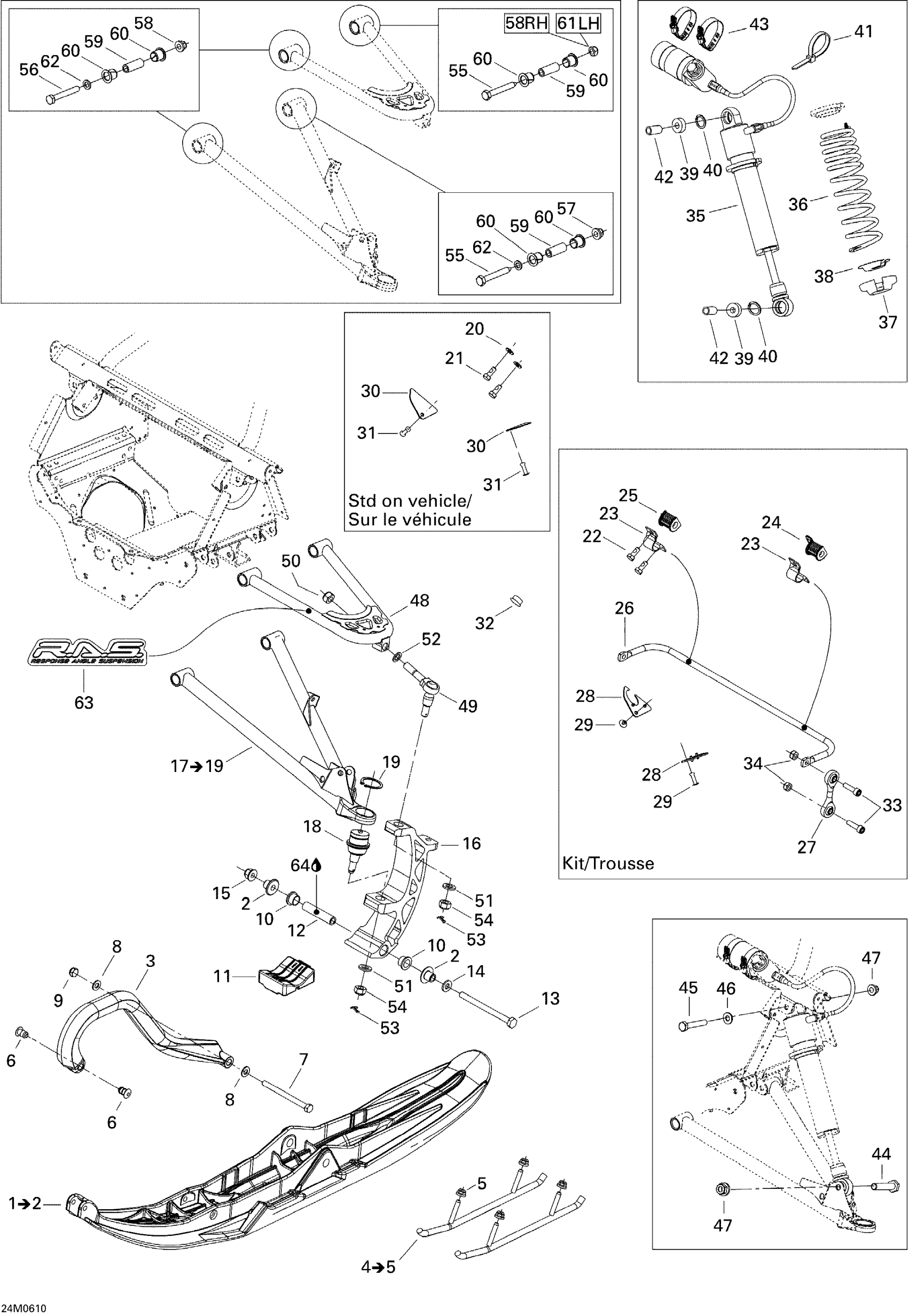

Ski-Doo MX Z 440 Racing, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

RH Pilot Ski | Includes 1 to 2

505072004

Unavailable

1

LH Pilot Ski | Includes 1 to 2

505072005

Unavailable

2

Ski Bushing

505071781

$15.35

3

HANDLE_SKI - Call your local BRP dealership

505071674

Unavailable

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

8

Flat Washer 8 mm

234081410

$0.69

9

Hex. Elastic Stop Nut M8

232581414

$0.47

10

Leg Bushing

505072690

Unavailable

11

Ski Stopper

505071779

$16.12

12

BUSHING - Call your local BRP dealership

505071271

Unavailable

13

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

14

Washer

732900049

$0.57

15

Flange Nut M10

732610084

$5.49

16

RH SKI LEG - Call your local BRP dealership

505071395

Unavailable

16

LH SKI LEG - Call your local BRP dealership

505071396

Unavailable

17

RH LOWER ARM - Call your local BRP dealership | Includes 15 to 17

860512700

Unavailable

17

LH Lower Arm | Includes 15 to 17

860512600

Unavailable

18

Ball Joint

505073636

$49.97

19

Circlip

293370035

$2.55

20

Flat Washer 8 mm

234081410

$0.69

21

Hex. Screw With Nylon

250000118

Unavailable

22

Hex. Screw With Nylon

250000118

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

25

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

26

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

27

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

28

PLUG - Call your local BRP dealership

505071253

Unavailable

29

Pop Rivet 3/16"

293150103

$0.54

30

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

31

Pop Rivet 3/16"

293150103

$0.54

32

CAP - Call your local BRP dealership

572072100

Unavailable

33

Socket Head Screw M8 X 30

205083044

$0.92

34

Hex. Elastic Stop Nut M8

232581414

$0.47

35

RH Front Shock

505070952

Unavailable

35

LH FRONT SHOCK - Call your local BRP dealership

505070953

Unavailable

36

SPRING - Call your local BRP dealership

505071677

Unavailable

37

Spring Stopper

505072635

$33.82

38

Cap

505071199

Unavailable

39

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

40

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

41

Tie-Rap 180 mm

414115200

$0.09

42

BUSHING - Call your local BRP dealership

506120200

Unavailable

43

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

44

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

45

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

46

Washer

503189564

$0.72

47

Hex. Flange Elastic Nut M10

233201414

$1.26

48

RH UPPER ARM - Call your local BRP dealership

505071958

Unavailable

48

LH Upper Arm

505071959

Unavailable

49

Upper Ball Joint

505071865

Unavailable

50

Hex. Flange Elastic Nut M12

250000047

$1.56

51

Flat Washer 12 mm

234021410

$0.68

52

Washer

503189276

$3.20

53

Cotter Pin

211400017

$0.25

54

Hex. Flange Elastic Nut M12

250000047

$1.56

55

Hex. Screw M10 X 75

250001063

$9.74

56

Hex. Screw M10 X 75

250001063

$9.74

57

Hex. Flange Elastic Nut M10

250100165

$0.70

58

Hex. Flange Elastic Nut M10

250100165

$0.70

59

Aluminium Bushing

505070960

$11.17

60

Arm Bushing

505071397

Unavailable

61

Elastic Flange Nut M10

232501416

$1.25

62

Washer

503189564

$0.72

63

R.a.s. Suspension Decal

516002747

Unavailable

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
