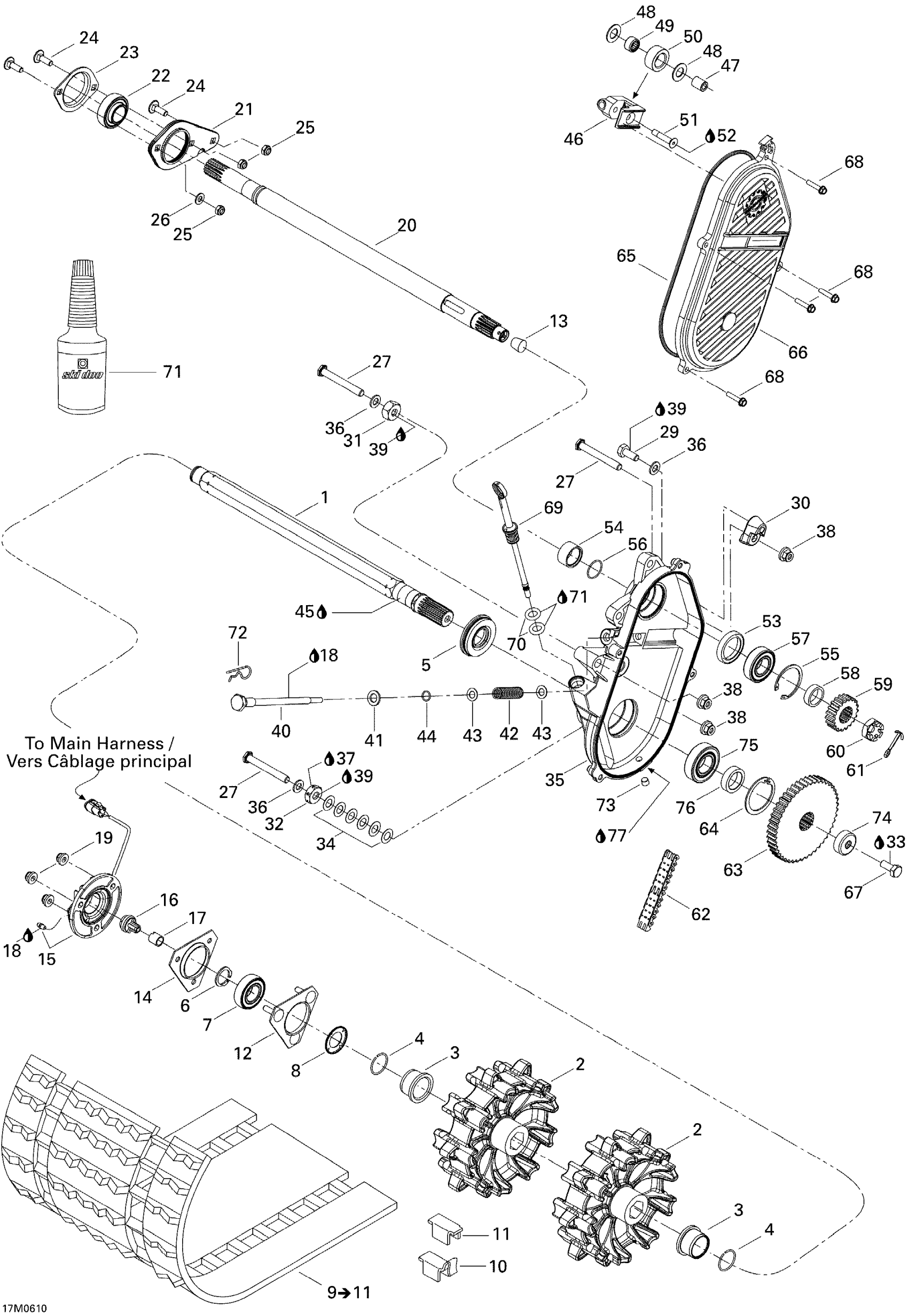

Ski-Doo MX Z 440 Racing, 2006 05- Drive System Diagram

#

Description
Price

1

Drive Axle

504152359

Unavailable

2

SPROCKET 8 TEETH - Call your local BRP dealership

504152552

Unavailable

3

RETAINER RING - Call your local BRP dealership

504152613

Unavailable

4

CIRCLIP - Call your local BRP dealership

504152194

Unavailable

5

Oil Seal Ass'y

504151918

$20.49

6

CIRCLIP - Call your local BRP dealership

371910200

$2.09

7

Ball Bearing

293350060

$38.49

8

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

9

TRACK ASS'Y 15 X 120 X 1.75 - Call your local BRP dealership | Includes 56 to 58

504152883

$839.99

10

Track Guide | Track Width 16''

415129528

$3.29

11

Cleat

504152651

$9.69

12

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

13

CORK - Call your local BRP dealership

414784800

Unavailable

14

FLANGE - Call your local BRP dealership

501025000

Unavailable

15

Rotation Sensor

504152345

$71.99

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

Adaptor

572097500

Unavailable

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

COUNTER SHAFT - Call your local BRP dealership

504152020

Unavailable

21

SPACER - Call your local BRP dealership

504151968

Unavailable

22

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

23

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

24

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

Flat Washer 8 mm

234081410

$0.83

27

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Hex. Screw M10 X 25

207102544

$1.37

30

Spacer

504152252

Unavailable

31

Spacer

504083800

Unavailable

32

SPACER - Call your local BRP dealership

504152237

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

WASHER - Call your local BRP dealership

504073700

Unavailable

35

CHAINCASE - Call your local BRP dealership | 550F X

504152482

Unavailable

36

Washer

503175800

$3.28

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Loctite 243, 10 ml

293800060

$21.49

40

Adjustment Screw

504151946

Unavailable

41

Washer | 7415/7416. 7417/7418.

503189148

$2.85

42

SPRING - Call your local BRP dealership

504151945

Unavailable

43

Washer

503189564

$0.74

44

O-RING - Call your local BRP dealership

504151954

Unavailable

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

Chain Tensionner

504152653

Unavailable

47

SPACER - Call your local BRP dealership

504080200

Unavailable

48

WASHER - Call your local BRP dealership

504080300

Unavailable

49

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

50

ROLLER - Call your local BRP dealership

414531300

Unavailable

51

SCREW - Call your local BRP dealership

732601144

Unavailable

52

Loctite 271, 10 ml

293800005

$26.99

53

Oil Seal

293200158

$14.22

54

SPACER - Call your local BRP dealership

507031500

Unavailable

55

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

56

O-RING - Call your local BRP dealership

414876700

Unavailable

57

Ball Bearing

293350115

$12.11

58

SHIM - Call your local BRP dealership

504152398

Unavailable

59

Sprocket, 21 Teeth

504096200

$93.99

60

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

61

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

62

Drive Chain, 74 Links | Except Europe

504151857

$153.49

63

SPROCKET 45 TEETH - Call your local BRP dealership

504152614

Unavailable

64

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

65

O-Ring

415046400

$24.99

66

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

67

Hex. Flange Screw M10 X 25

207602544

$1.69

68

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

69

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

70

O-RING - Call your local BRP dealership

414969400

Unavailable

71

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

72

Hair Pin

414575600

$1.89

73

Plug 1/8”-27

504151921

$4.19

77

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

74

CAP - Call your local BRP dealership

504152480

Unavailable

75

BALL BEARING - Call your local BRP dealership

504152509

Unavailable

76

SHIM - Call your local BRP dealership

504152491

Unavailable
