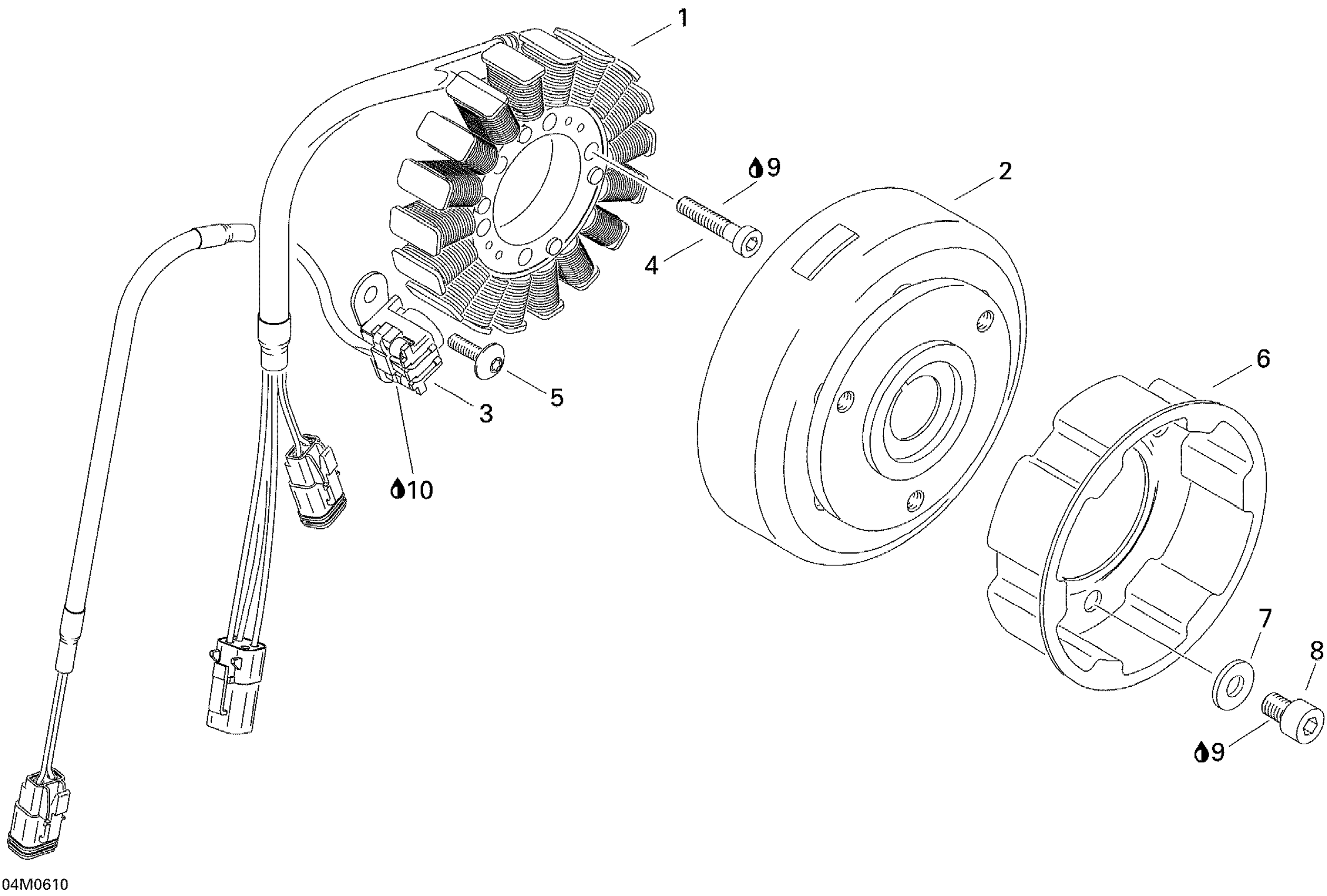

Ski-Doo MX Z 440 Racing, 2006 Magneto Diagram

#

Description

Price

1

Stator Plate A

420889905

$319.49

2

FLYWHEEL - Call your local BRP dealership

410922953

Unavailable

3

Pick-Up Ass'y

410922969

$109.99

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Torx Screw M6 X 16

420640324

$2.11

6

Starting Pulley

420852590

$29.49

7

Flat Washer

420827405

$1.69

8

Socket Head Screw M8 X 12

420841520

$1.69

9

Loctite 243, 10 ml

293800060

$21.49

10

Not Available As Spare Part - Friction Washer

Unavailable
