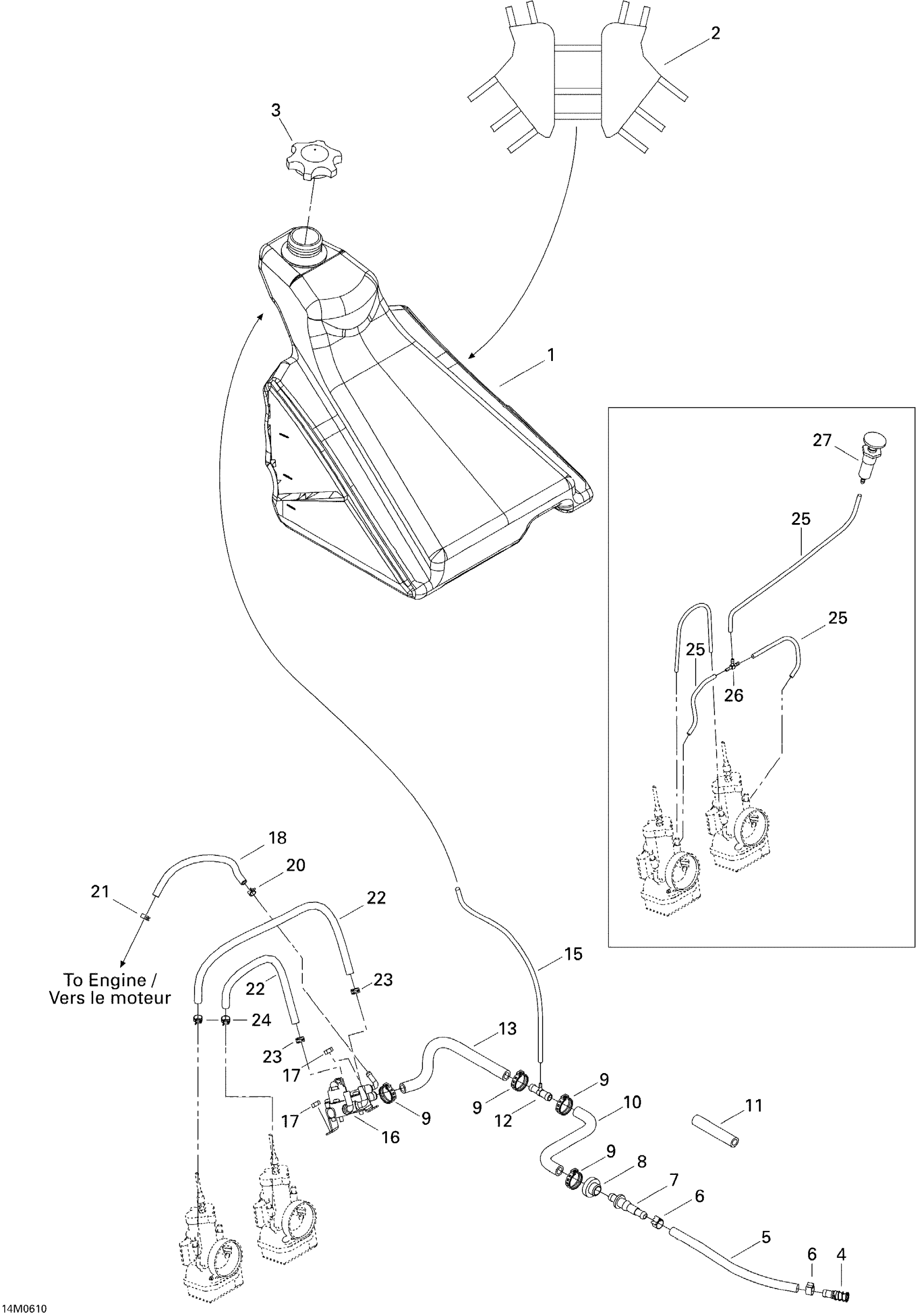

Ski-Doo MX Z 440 Racing, 2006 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033099

Unavailable

2

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

3

Fuel Tank Cap

513033752

$54.45

4

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

5

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

6

Norma Spring Clamp

513033010

$8.42

7

Male Connector

414872700

Unavailable

8

Grommet | Europe

707800347

$8.70

9

Crimp Clamp

293650053

$2.78

10

Formed Hose

513033072

Unavailable

11

Tubing 16 Mm 1000Mm Long

219704408

$7.15

12

T-Fitting

415119300

$3.01

13

FORMED HOSE - Call your local BRP dealership

513033031

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

16

FUEL PUMP - Call your local BRP dealership

403901810

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

HOSE - Call your local BRP dealership

513033035

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Spring Clamp

414415200

$0.81

21

Universal Spring Clamp

513033029

$4.96

22

Polyurethane Hose 10000Mm Long

219704410

$52.96

23

Oetiker Clamp

293650042

$2.82

24

Spring Clamp

414554800

$0.81

25

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

26

T-Fitting

414222400

$1.52

27

Primer

415060500

$32.06
