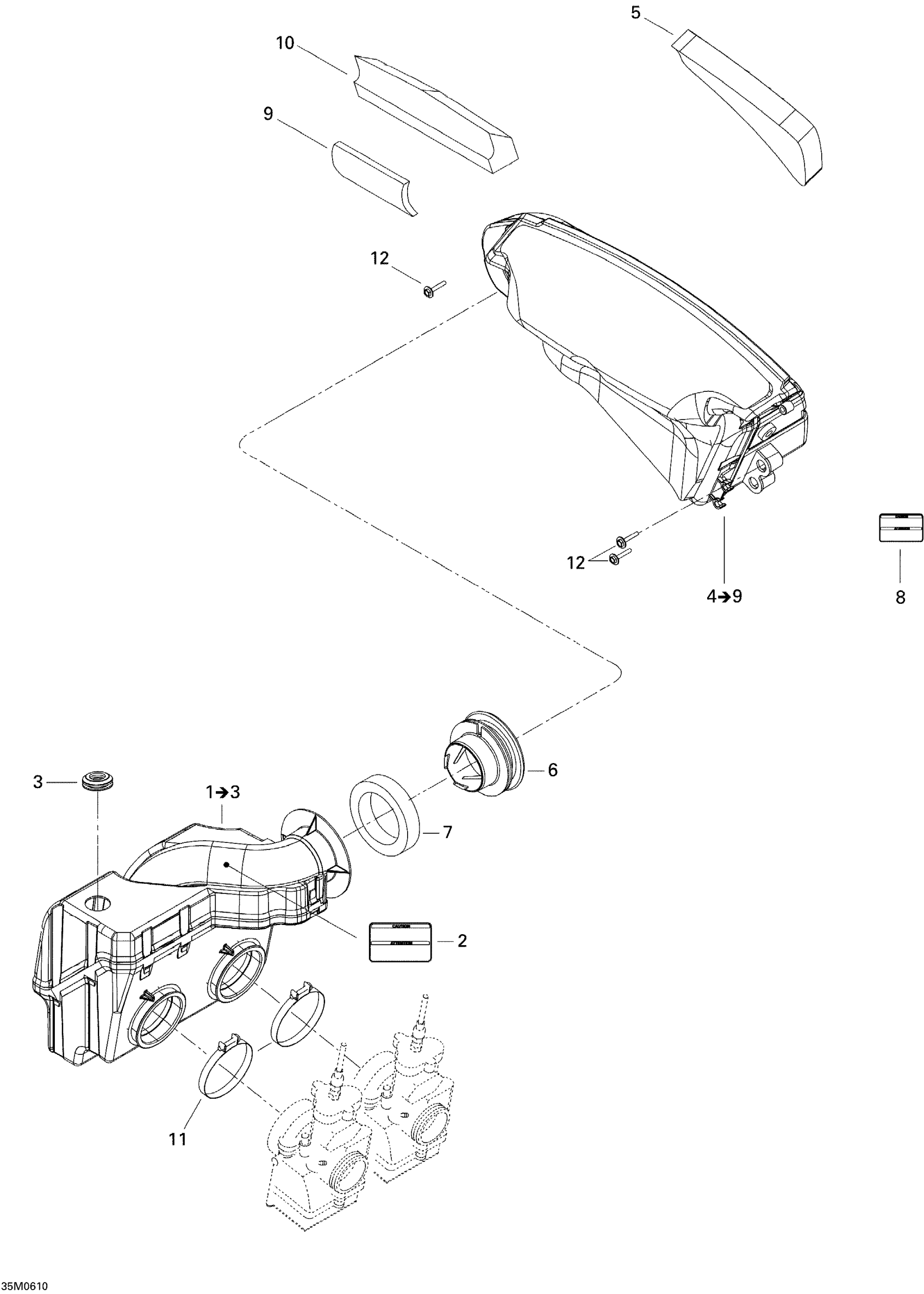

Ski-Doo MX Z 440 Racing, 2006 Air Intake System Diagram

#

Description
Price

1

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 1 to 4

508000505

Unavailable

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

GROMMET - Call your local BRP dealership

570065500

Unavailable

4

SECONDARY CHAMBER ASSY - Call your local BRP dealership | Includes 5 to 10

508000502

Unavailable

5

Inner Foam

508000145

Unavailable

6

GUIDE - Call your local BRP dealership

508000240

Unavailable

7

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

FOAM - Call your local BRP dealership

508000326

Unavailable

10

Air Filter

508000394

$49.97

11

Gemi Clamp

508000369

$11.52

12

Plastite Screw Type K-40, M4 X 25

250000101

$2.87
