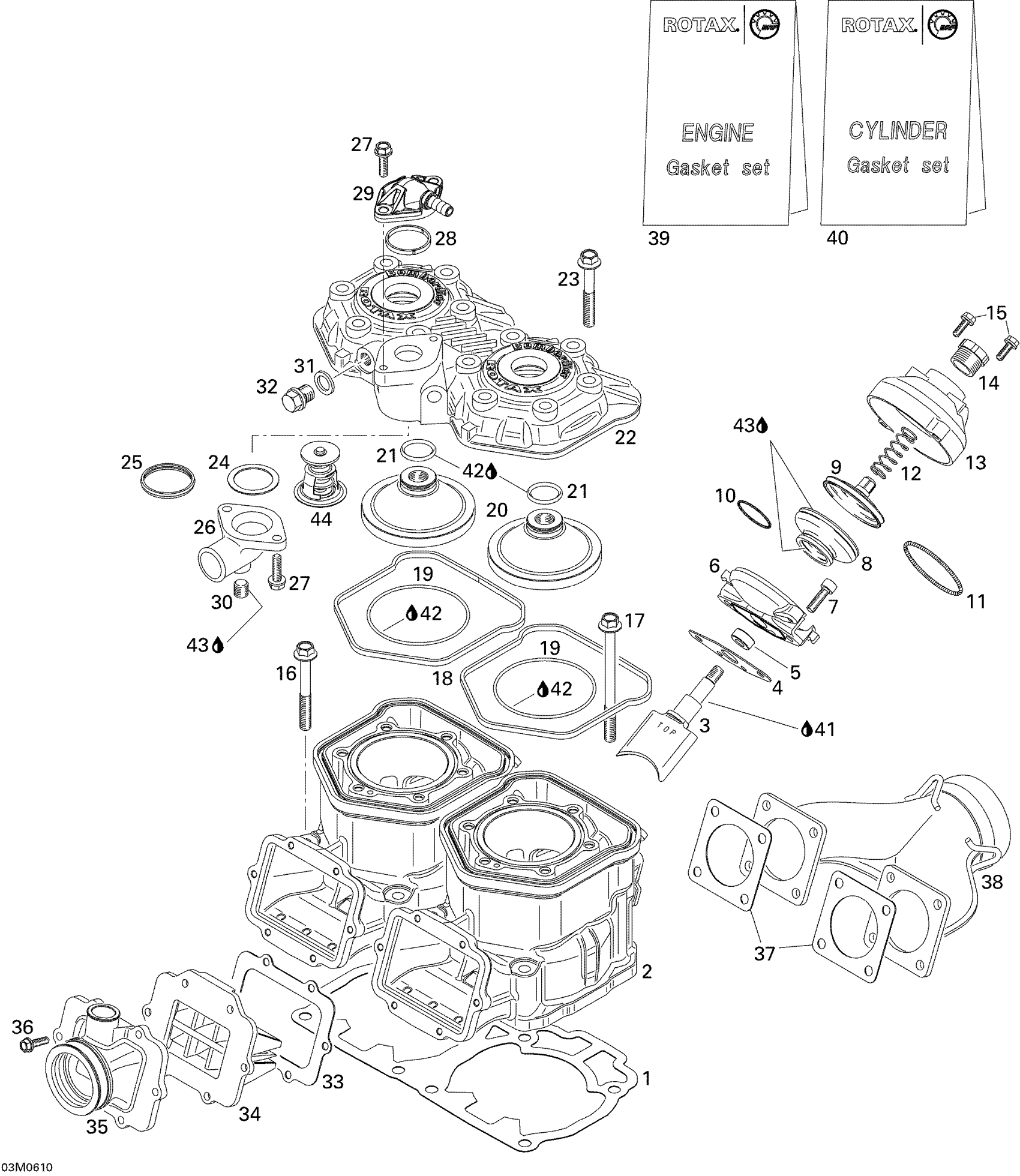

Ski-Doo MX Z 440 Racing, 2006 Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

DOUBLE GASKET 0.3 MM - Call your local BRP dealership

420931580

Unavailable

1

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

1

Gasket 0.6 mm

420431421

$19.20

1

Gasket 0.5 mm

420431420

$23.82

1

Gasket 0.7 mm

420431422

$26.89

1

Gasket 0.8 mm

420431423

$25.35

2

NICASIL CYLINDER - Call your local BRP dealership

420923720

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854480

Unavailable

4

GASKET - Call your local BRP dealership

420250238

Unavailable

5

Oil Seal | Included in gasket kit

420950732

$8.34

6

Valve Housing

420854266

$93.82

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Exhaust Bellows

420260723

$35.07

9

Exhaust Valve This part replaces 290253257.

420854449

$29.87

10

Hose Spring This part replaces 420838253.

420838255

$6.11

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

SPRING - Call your local BRP dealership

420239948

Unavailable

13

Valve Cover

420911552

$37.66

14

Adjuster Screw

420241221

$12.52

15

Hex. Tapping Screw M5 X 20

420841555

$1.68

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

17

SCREW HEX. M8 X 100 - Call your local BRP dealership

420940129

Unavailable

18

SQUARE RING - Call your local BRP dealership

420931595

Unavailable

19

O-Ring

420950490

$13.58

20

COMBUSTION CHAMBER - Call your local BRP dealership

420923872

Unavailable

20

COMBUSTION CHAMBER - Call your local BRP dealership | Europe

420923877

Unavailable

21

O-Ring

420430373

$2.63

22

Cylinder Head Cover

420923734

Unavailable

23

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

24

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

25

Sealing Ring

420931272

$15.35

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

27

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

28

Gasket

420850338

$10.28

29

BENT OUTLET SOCKET - Call your local BRP dealership

420822370

Unavailable

30

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

31

Aluminum Sealing Ring

420250016

$4.41

32

Plug screw

420841924

$13.58

33

GASKET - Call your local BRP dealership

420630810

Unavailable

34

REED VALVE - Call your local BRP dealership

420924810

Unavailable

35

INTAKE SOCKET - Call your local BRP dealership

420667078

Unavailable

36

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

37

Gasket

420850552

$7.92

38

MANIFOLD - Call your local BRP dealership

420973557

Unavailable

39

GASKET ENGINE KIT - Call your local BRP dealership

420888633

Unavailable

40

GASKET CYLINDER KIT - Call your local BRP dealership

420888637

Unavailable

41

Molykote G-N, 50 g

420297433

$22.72

42

Dow Corning 111, 150 g

413707000

$57.82

43

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

44

Thermostat This part replaces 414834100.

420922519

$59.20
