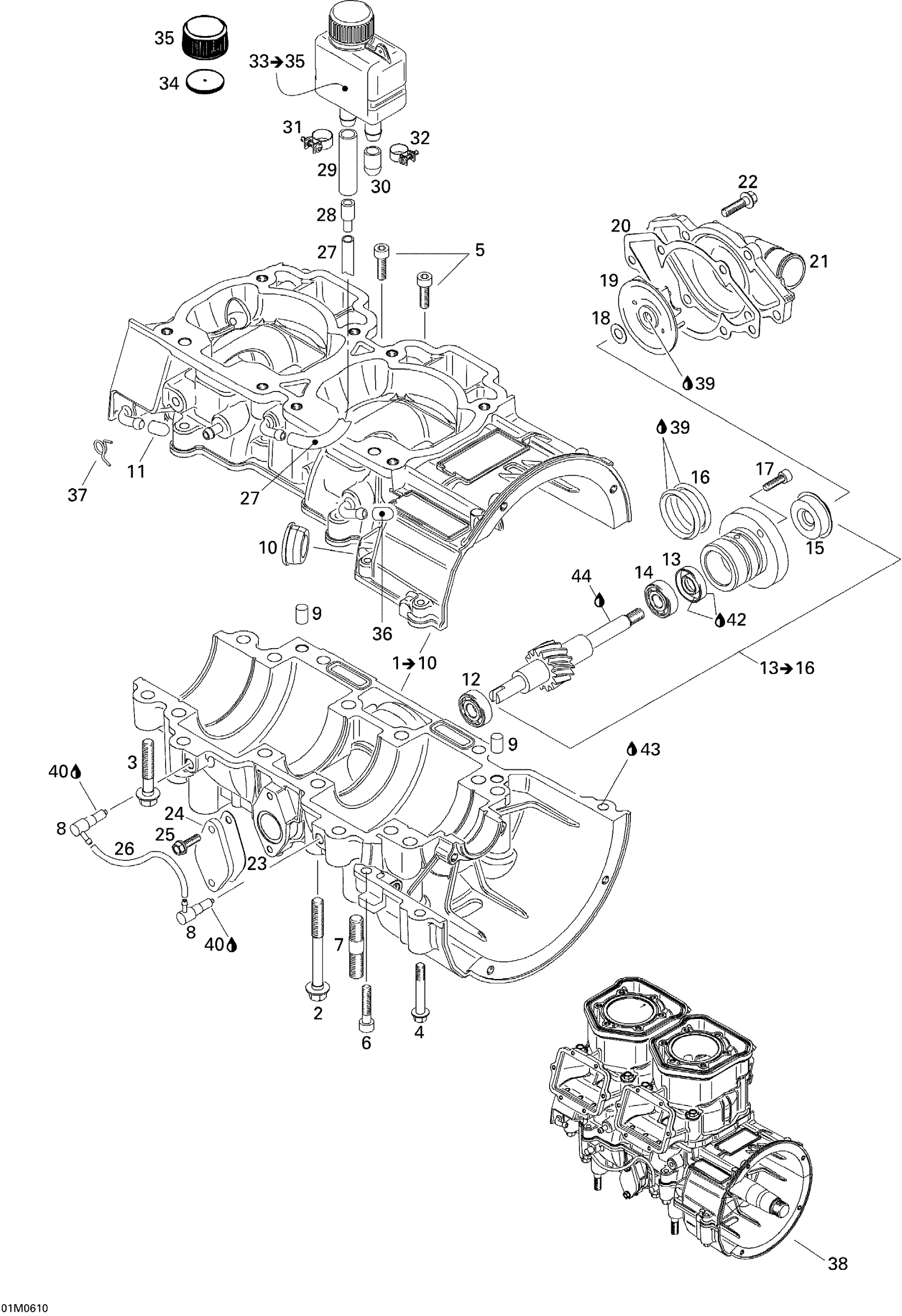

Ski-Doo MX Z 440 Racing, 2006 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 10

420888768

$1.00

2

Hex. Collar Screw M8 X 75

420640836

$13.16

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Socket Head Screw M6 X 20

205062044

$1.26

6

Socket Head Screw M6 X 30

205063044

$1.69

7

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

8

Check Valve

420956511

$35.99

9

Center Pin 8 X 12

420632010

$4.01

10

Cable Grommet

420860965

$14.28

11

Cap

420960770

$4.12

12

Ball Bearing

420232100

$20.99

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

13

Oil Seal

420230195

$15.36

14

Ball Bearing

420232100

$20.99

15

Rotary Seal

420650371

$43.49

16

O-Ring

420950890

$4.44

17

Allen Screw M5 x 16

420840514

$1.90

18

Thrust Washer

420227945

$4.01

19

Water Impeller

420222505

$19.99

20

Gasket This part replaces 420931810.

420931811

$13.76

21

Water Pump Housing

420922630

$61.49

22

Hex. Screw M6 X 25

420240034

$1.90

23

Gasket This part replaces 420931566.

420931568

$10.33

24

Cover Plate

420810827

$14.83

25

Taptite Screw M5 X 16

420941928

Unavailable

26

Oil Hose 1500Mm Long

219704404

$17.26

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

28

Fitting

420874370

$14.83

29

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

30

Closure Cap

420960279

$4.59

31

CLAMP - Call your local BRP dealership

420951260

Unavailable

32

CLAMP - Call your local BRP dealership

420951241

$9.79

33

Oil Tank Ass'y | Includes 25 to 27

420956240

$73.99

34

Rubber Gasket

420850350

$5.39

35

Oil Tank Cap

420956250

$15.28

36

CAP - Call your local BRP dealership

420960777

Unavailable

37

CLAMP - Call your local BRP dealership

420938190

Unavailable

38

Short Block 453

420045304

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Sealant Loctite 648

219703000

$45.99

41

Dow Corning 111, 150 g

413707000

$59.99

42

Petamo Grease, GHY133N, 400 g

420899271

$67.99

43

Loctite 5910, 300 ml

293800081

$57.99

44

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
