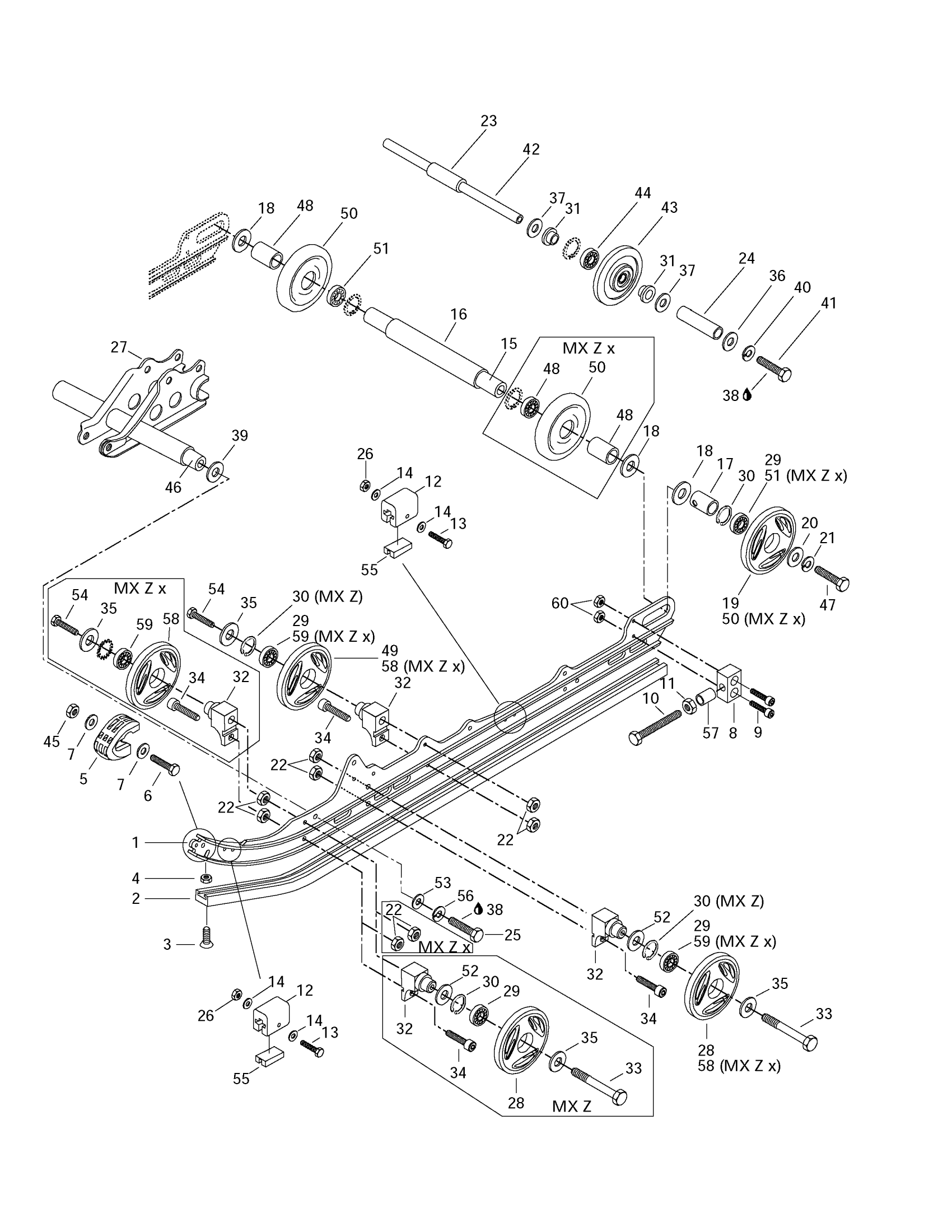

Ski-Doo MX Z 440 LC, 1997 08- Rear Suspension Diagram

#

Description
Price

1

Runner (121") | MX Z 440 LC.

503170800

Unavailable

Runner (121") | MX Z x 440 LC.

503174200

Unavailable

2

Runner Shoe

560103300

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503168400

Unavailable

9

Socket Head Screw M8 X 30

205083044

$1.15

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Hex. Nut M10 X 1.5

232006414

$1.37

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$139.99

Rear Axle

503167900

$139.99

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

Center Spacer

503156000

$12.01

17

Outer Spacer

503189809

$18.89

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Bond Wheel 165 (Yellow)

570045326

Unavailable

20

Washer

503183300

$5.82

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Center Spacer

503160100

Unavailable

24

External Spacer | Formula Z 583. Formula 583 Deluxe.

503160200

Unavailable

25

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

26

Elastic Stop Nut M5

232551414

$0.87

27

Welded Shock Support | Formula Z.

503158300

Unavailable

28

Idler Wheel 135 (Yellow)

570045226

Unavailable

29

Ball Bearing

293350115

$12.11

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

$4.76

32

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Socket Head Screw M8 X 25

205082544

$1.15

35

Washer

503183100

$3.17

36

Yellow, Washer

503183200

$3.19

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

$26.99

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.92

41

Hex. Screw M8 X 30

207183044

$1.15

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$12.11

45

Elastic Stop Nut M5

232551414

$0.87

46

Lower Axle

503174800

Unavailable

47

Hex. Screw With Nylon

250000019

$1.69

48

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

49

Wheel 135 | Includes 18 to 19

503190797

$33.99

50

Wheel 165" | Includes 670 to 670b

503194127

$51.99

51

Ball Bearing

293350115

$12.11

52

WASHER - Call your local BRP dealership

503173700

Unavailable

53

Flat Washer 12 mm

234021410

$0.72

54

Hex. Screw M8 X 80

207088044

$1.68

55

Reinforcement Stopper

572084800

$12.99

56

Lock Washer 12 mm

224721218

Unavailable

57

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

58

Wheel 135

503191029

$33.99

59

Ball Bearing

293350115

$12.11

60

Hex. Elastic Stop Nut M8

232581414

$0.56
