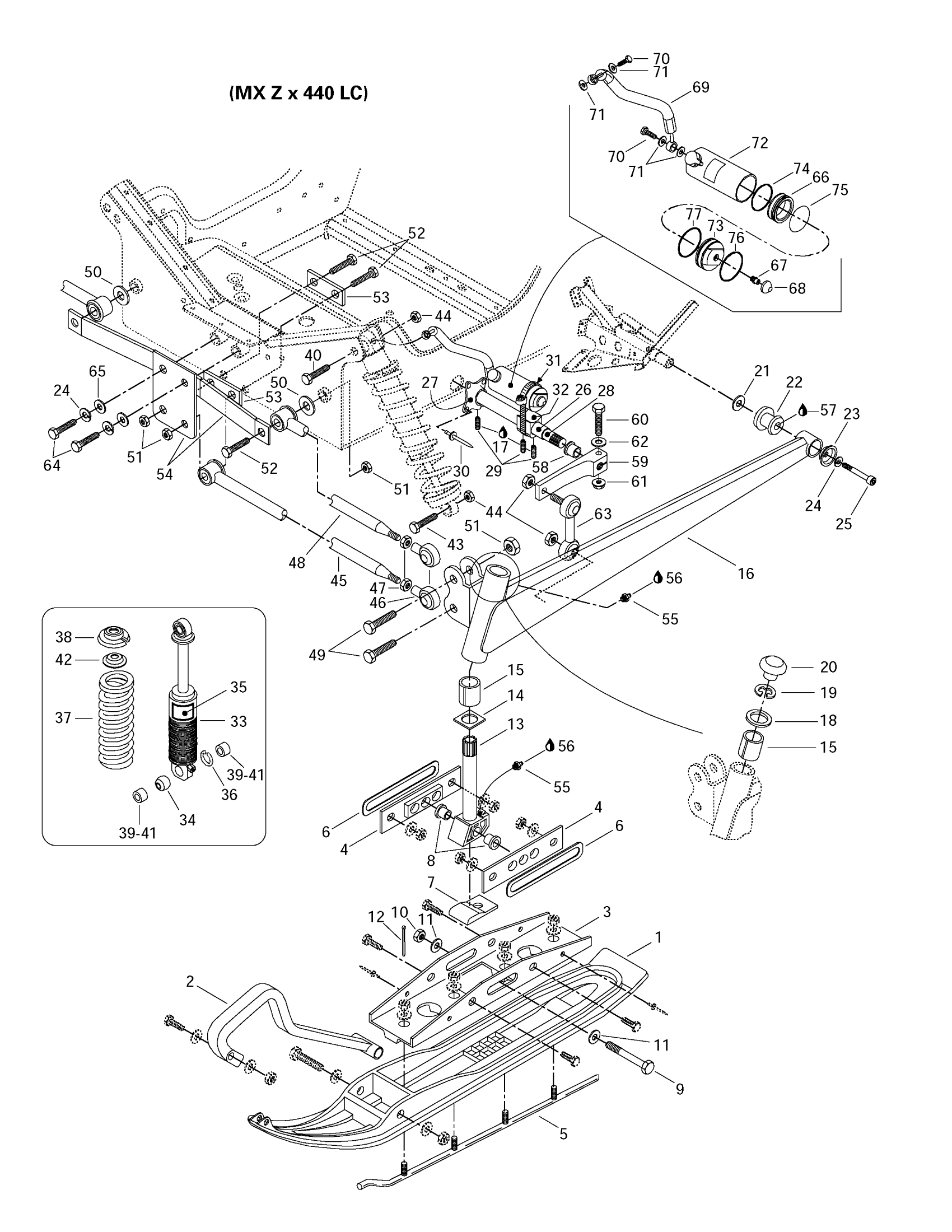

Ski-Doo MX Z 440 LC, 1997 07- Front Suspension And Ski (MX Z X 440 LC) Diagram

#

Description
Price

1

Plastic Ski | MX Z x 440 LC.

572093400

Unavailable

2

Plastic Handle | MX Z x 440 LC.

572093500

Unavailable

3

Bridge | MX Z x 440 LC.

505067900

Unavailable

4

Reinforcement Plate

505067902

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Spacer

505068500

Unavailable

7

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

8

Cushion

415068700

Unavailable

9

Hex. Screw M12 x 120

732601277

Unavailable

10

Nut M12

732610080

Unavailable

11

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

12

Cotter Pin

371800900

Unavailable

13

Ski Leg

506139200

Unavailable

14

Wear Plate

506081200

Unavailable

15

Cushion

415071300

Unavailable

16

LH Swing Arm (Yellow) | MX Z x 440 LC.

506139910

Unavailable

RH Swing Arm (Yellow) | MX Z x 440 LC.

506140010

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Thrust Washer

506080900

Unavailable

19

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

20

Cap

572091300

$12.99

21

WASHER - Call your local BRP dealership

503146700

Unavailable

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

CUP - Call your local BRP dealership

506079600

Unavailable

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Main Tube

506136200

Unavailable

27

Housing

506139000

Unavailable

28

Stabilisator Bar

506141200

Unavailable

Stabilisator

486073600

Unavailable

Stabilisator

486073800

Unavailable

Stabilisator

486074000

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.12

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Tridon Gear Clamp

408802000

Unavailable

32

Tank Bracket

506141500

Unavailable

33

Take Apart Shock(LH) | MX Z 440 LC. (Front Suspension)

415039302

Unavailable

Take Apart Shock(RH) | MX Z 440 LC. (Front Suspension)

415039300

Unavailable

34

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

35

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

36

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

37

Spring (Yellow) | MX Z x 440 LC.

415063300

Unavailable

38

Spring Stopper

706200881

$12.99

39

BUSHING - Call your local BRP dealership

506120200

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Bushing | MXZ X 440 LC.

506141700

Unavailable

42

Cap

706200785

$4.69

43

Hex. Screw M10 X 55

207005544

$2.22

44

Elastic Locking Nut M10 X 1.5

233601416

$1.69

45

Long Arm Ass'y | MX Z x 440 LC.

580656000

Unavailable

46

RH Ball Joint | Formula Z 583. Formula Z 670.

415042500

Unavailable

47

Hex. Jam Nut M14

232170411

$1.48

48

Short Arm Ass'y | MX Z x 440 LC.

580656100

Unavailable

49

Hex. Screw M12 x 55

222025565

Unavailable

50

Flat Washer 12 mm

234021410

$0.72

51

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

52

Hex. Screw M12 x 100

732601113

Unavailable

53

Link Low Plate

415061100

Unavailable

54

Plate Link

415065300

Unavailable

55

Grease Fitting

408200700

$3.49

56

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

57

Grease, Super Lube

293550030

$28.99

58

Cushion

561723300

Unavailable

Cushion

561723300

Unavailable

Cushion

486073900

Unavailable

Bushing

486074100

Unavailable

59

Lever-Stabilizer

506141100

Unavailable

60

Hex. Screw M8 X 45

207084544

$1.48

61

Hex. Flange Elastic Nut M8

233281414

$1.47

62

Flat Washer 8 mm

234081410

$0.83

63

Double Ball Joint

415042300

Unavailable

64

Hex. Screw M8 X 25

207182544

$0.90

65

Flat Washer 8 mm

234082410

$1.47

66

FREE PISTON - Call your local BRP dealership

415093812

Unavailable

67

AIR VALVE - Call your local BRP dealership

414888314

Unavailable

68

Valve Cap

414888313

Unavailable

69

LH Hose

415093811

Unavailable

RH Hose

415093815

Unavailable

70

Bolt

415093810

$16.86

71

O-Ring

415038700

$42.99

72

Tank

415093809

Unavailable

73

Guide

415093808

Unavailable

74

O-Ring

415093807

$35.99

75

Piston Ring | Not Shown

415093806

$16.86

76

STOP RING - Call your local BRP dealership

415093805

Unavailable

77

O-Ring

415093804

$4.54
