Ski-Doo MX Z 440 LC, 1997 07- Front And Rear Take Apart Shocks Diagram
#
1

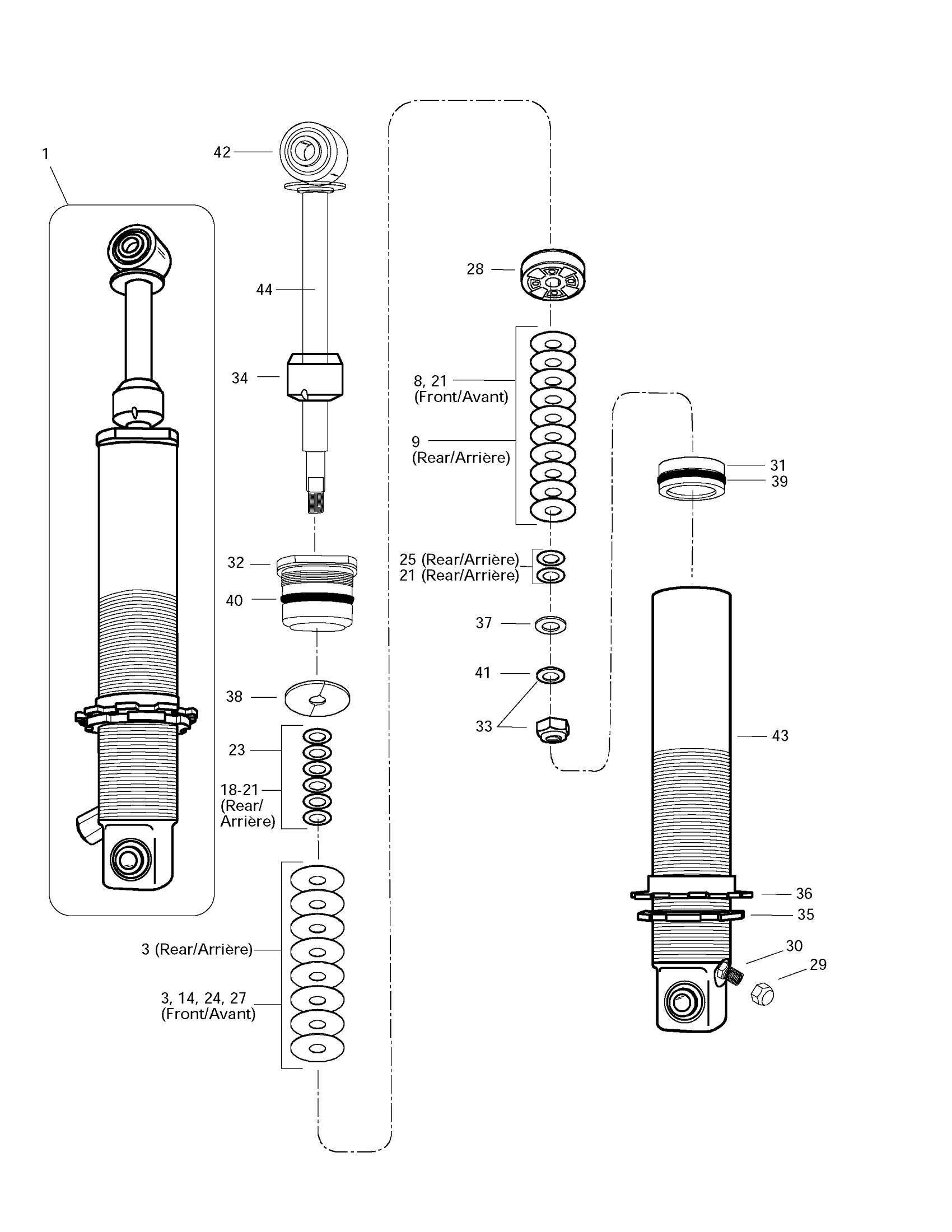

Take Apart Shock(RH) | MX Z 440 LC. (Front Suspension)
415039300
Unavailable
Take Apart Shock(LH) | MX Z 440 LC. (Front Suspension)
415039302
Unavailable
Take Apart Shock | MX Z x 440 LC. (Rear Suspension - Central Shock)
414953900
Unavailable
Take Apart Shock | . (Rear Suspension - Rear Shock)
414954000
Unavailable
2
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
3
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
4
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
5
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
6
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
7
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
8
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
9
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
10
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
11
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
12
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
13
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
14
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
15
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
16
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
17
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
18
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
19
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
20
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
21
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
22
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
23
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
24
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
Leaf Valve Ø16 x 0.114 (mm) | MX Z X 440.
415093823
Unavailable
25
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
26
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
27
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
Leaf Valve Ø12 x 0.114 (mm) | MX Z X 440.
415093824
Unavailable
28
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
Piston (2 x 0.3 x 6)
415093821
Unavailable
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
Piston (C36)
414888304
Unavailable
29
Valve Cap
414888313
Unavailable
30
AIR VALVE - Call your local BRP dealership
414888314
Unavailable
31
Piston Free | MX Z x 440 LC. .
414888311
Unavailable
32
Seal Carrier Ass'y | MX Z x 440 LC. .
414888300
Unavailable
Sealing Cap
415093819
Unavailable
33
Nut with Washer
414888310
Unavailable
34
Cushion Rubber | MX Z 440 LC.
415093822
Unavailable
35
Jam Collar | MX Z x 440 LC. .
414888317
Unavailable
36
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
Spring Collar | MX Z x 440 LC.
415093800
Unavailable
37
Valve Stopper
414888308
Unavailable
38
Valve Stopper | MX Z x 440 LC. .
414888303
Unavailable
Valve Stopper | MX Z 440 LC.
415093820
Unavailable
40
O-Ring | MX Z x 440 LC. .
414888301
Unavailable
41
Washer | MX Z x 440 LC. .
414888309
Unavailable
42
Piston Rod Ass'y | (Incl. It. 3,8,14,21,24,27,28,32,33,34,37,38,44) MX Z 440 LC.
415093814
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
43
Body Cylinder | MX Z x 440 LC.
415093813
Unavailable
Body Cylinder | MX Z x 440 LC.
414953903
Unavailable
Body Cylinder | .
414954003
Unavailable
44
Piston Rod | MX Z 440 LC.
415093818
Unavailable
