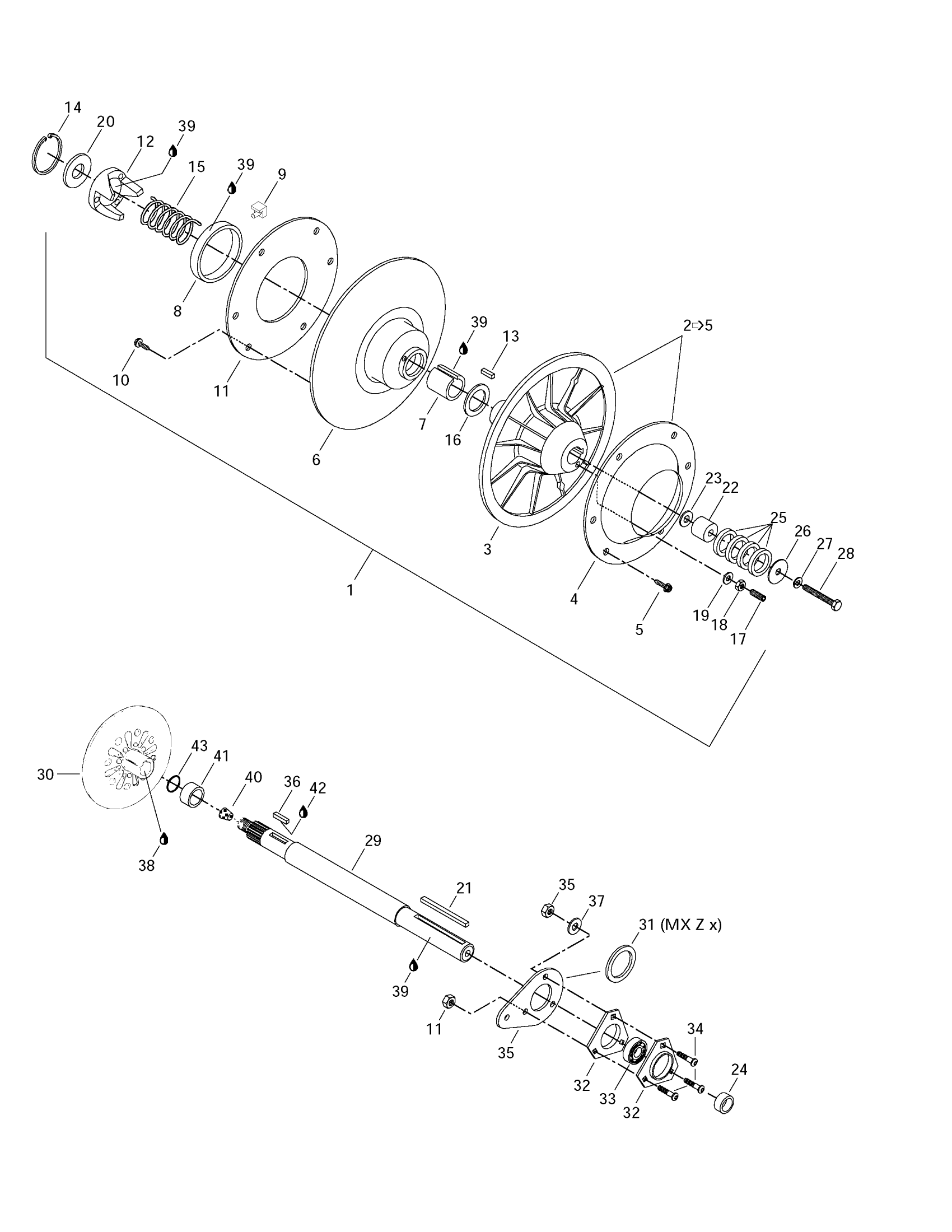

Ski-Doo MX Z 440 LC, 1997 Driven Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y | Includes 19 - 22. MX Z 670 HO.

504142200

Unavailable

Fixed Half Pulley Ass'y | MX Z x 440 LC.

417121800

Unavailable

3

Fixed Flange

504141600

Unavailable

Fixed Half Pulley | MX Z x 440 LC.

417121900

Unavailable

4

CUP - Call your local BRP dealership

504142000

Unavailable

5

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

6

Sliding Flange Ass'y | Includes 23 - 28. MX Z 670 HO.

504144000

Unavailable

Sliding Pulley Ass'y | MX Z x 440 LC.

417122100

Unavailable

7

BUSHING - Call your local BRP dealership

415011200

Unavailable

8

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

9

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

Cam Slider Shoe | MX Z x 440 LC.

415064100

Unavailable

10

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

11

Ring

504142100

Unavailable

12

Cam 44 Deg

504096000

Unavailable

Cam 40 Deg./44 Deg | MX Z x 440 LC.

417122200

Unavailable

13

Key

414820800

Unavailable

14

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

15

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

16

Thrust Washer

504141900

Unavailable

17

Allen Screw M6 x 30

223563065

Unavailable

18

Hex. Nut M6

232061414

$0.53

19

WASHER - Call your local BRP dealership

420245370

Unavailable

20

Washer

504141800

Unavailable

21

Key

414581300

Unavailable

22

Counter Shaft Extension

504091600

Unavailable

23

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

24

Shim

504128300

Unavailable

Shim | MXZ X 440 LC.

504149000

Unavailable

25

SHIM - Call your local BRP dealership

504108200

Unavailable

26

WASHER - Call your local BRP dealership

517078700

Unavailable

Strength Washer

517302322

$12.63

27

Lock Washer 8 mm

234181401

$0.92

28

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Hex. Screw M8 x 65

207086544

$1.47

29

Countershaft | Formula Z.

504139400

Unavailable

Countershaft | MX Z x 440 LC.

504147800

Unavailable

30

Brake Disk | Formula Z.

507030700

Unavailable

Brake Disk Ass'y

507030900

Unavailable

31

Spacer

501022300

Unavailable

Spacer

507031200

Unavailable

32

FLANGE - Call your local BRP dealership

501025000

Unavailable

33

BALL BEARING WITH COLLAR - Call your local BRP dealership

405408300

Unavailable

BALL BEARING - Call your local BRP dealership

405408200

Unavailable

34

Allen Screw M8 x 25

732601156

Unavailable

35

Hex. Elastic Stop Nut M8

232581414

$0.56

36

KEY - Call your local BRP dealership

507021300

Unavailable

37

Flat Washer 8 mm

234081410

$0.83

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

Loctite 609, 10 ml

413703100

$26.99

40

CORK - Call your local BRP dealership

414784800

Unavailable

41

Spacer | MX Z x 440 LC.

507031100

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

O-RING - Call your local BRP dealership

414876700

Unavailable
