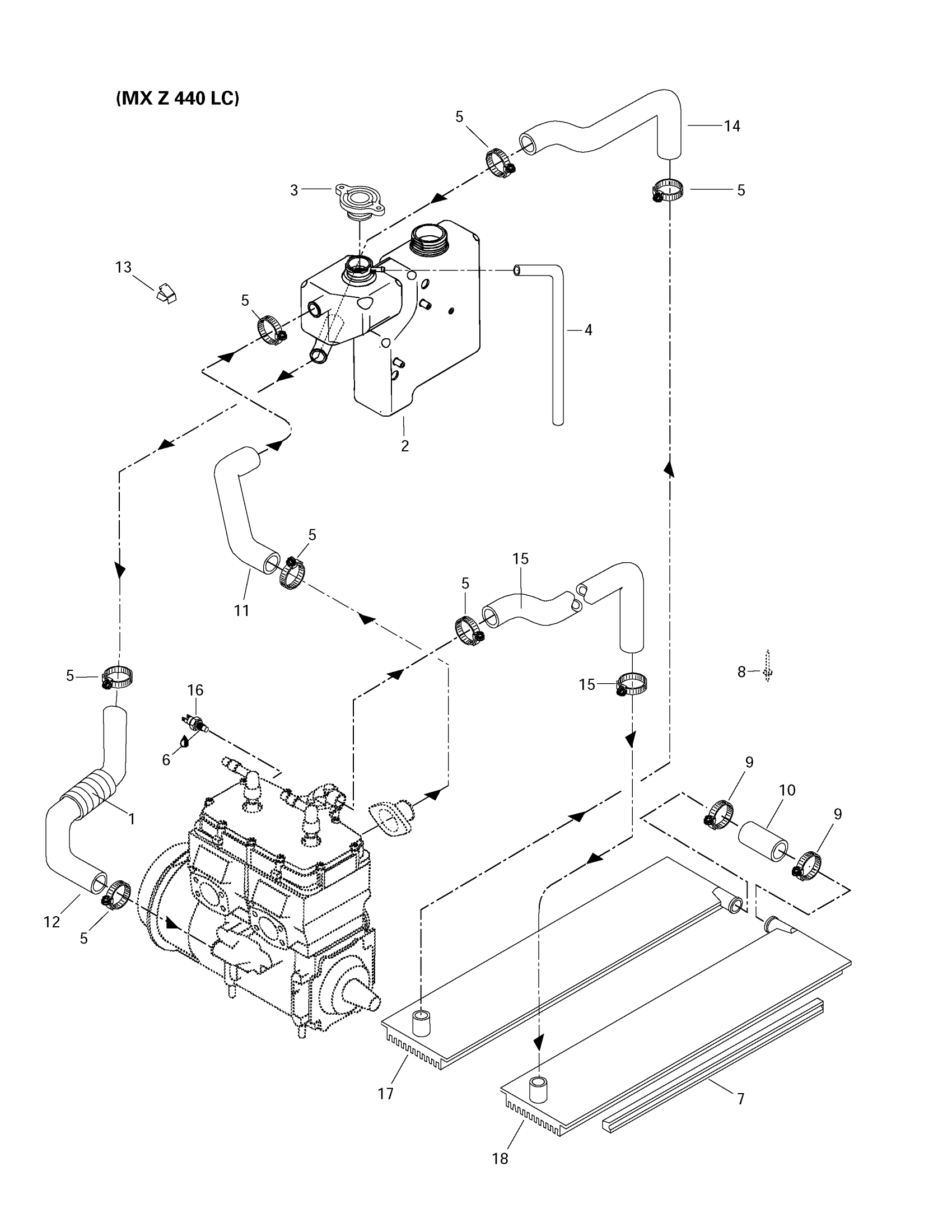

Ski-Doo MX Z 440 LC, 1997 01- Cooling System MX Z (440 LC) Diagram
#
Description
Price
1
TUBING - Call your local BRP dealership
414991800
Unavailable
2
Coolant Tank
572076900
Unavailable
5
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
7
Radiator Protector | Formula 500. Formula 500 Deluxe.
517258800
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Clamp Tridon
408803400
Unavailable
10
Radiator Hose
414795800
Unavailable
11
Engine Outlet Hose | MX Z 670 HO.
414973200
Unavailable
12
Engine Inlet Hose
415010400
Unavailable
14
Radiator Outlet Hose
414973000
Unavailable
15
Radiator Inlet Hose | MX Z 670 HO.
415008400
Unavailable
16
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
17
RH Radiator
517280510
Unavailable
18
LH Radiator
517280511
Unavailable
