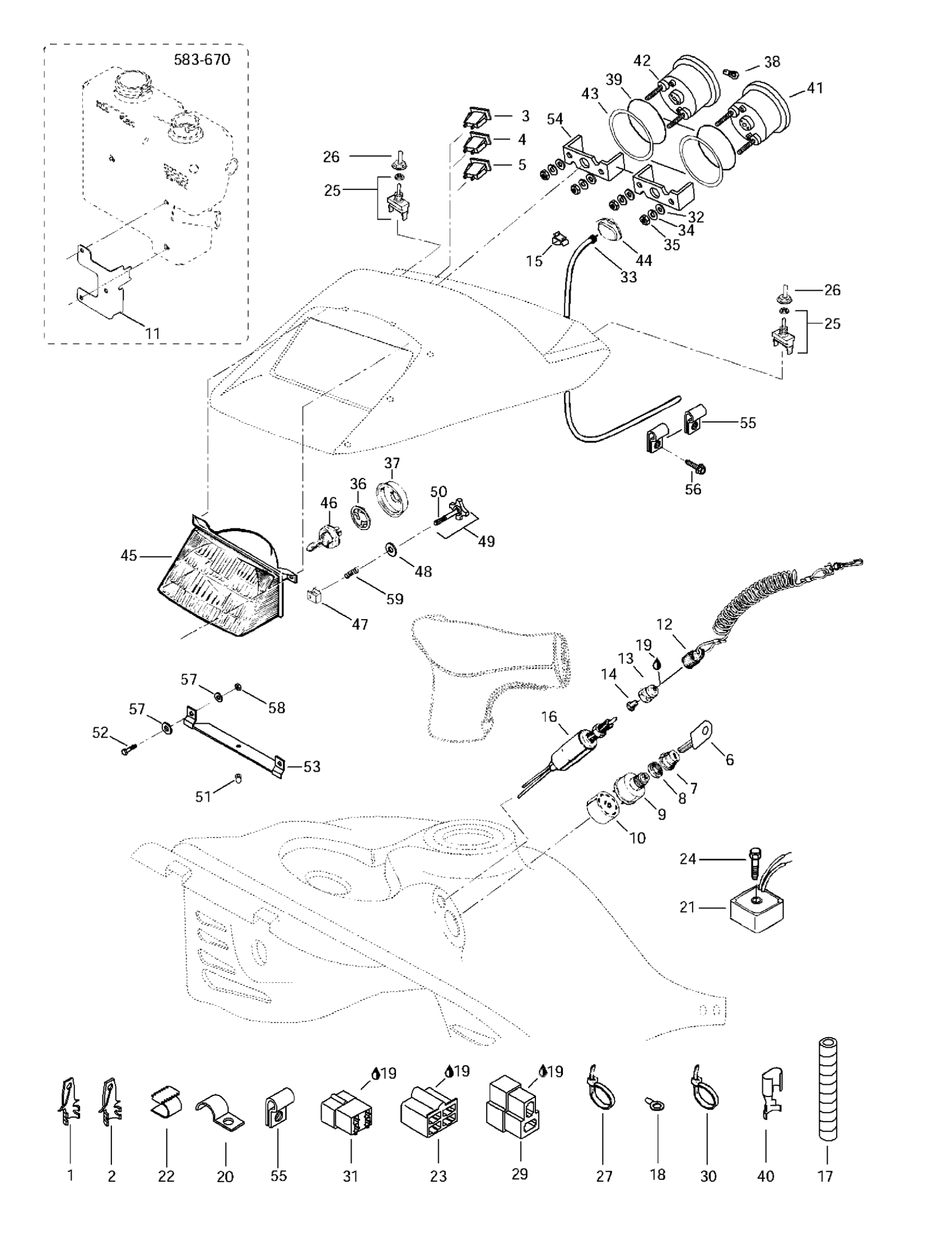

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 10- Electrical System Diagram

#

Description
Price

1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

Pilot Lamp (Red)

410109500

Unavailable

4

Pilot Lamp (Blue)

410109600

Unavailable

5

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Support Cable

517281800

Unavailable

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Clip

414227300

$1.67

16

Brake Switch

515175653

$19.49

17

Was 409901800 Tubing (13 mm)

219704400

$14.49

18

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

19

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

20

CLIP - Call your local BRP dealership

415018200

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

23

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Switch (Heating Grip) | FREERIDE

410107300

$35.99

26

Switch Cover

515175281

$15.99

27

Tie-Rap 180 mm

414115200

$0.11

28

Resistance

515175241

$17.99

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

Tie Wrap 368 mm

293750008

$1.04

31

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

32

Flat Washer

517225900

$0.18

33

Speedometer Cable

414761400

Unavailable

34

Lock Washer

414806700

Unavailable

35

Nut

414806900

Unavailable

36

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

37

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

38

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

39

O-Ring

414807100

Unavailable

40

Female Terminal PACKARD

561503200

Unavailable

41

Speedometer (KMH) | Formula Z.

415034000

Unavailable

Speedometer, Mph

515175336

Unavailable

42

Tachometer | Formula Z.

415034200

Unavailable

43

Washer

517258500

Unavailable

44

Drive Angle | Formula S.

572022300

Unavailable

45

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

45

Headlamp

410608900

Unavailable

46

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

47

Projector Nut

572078600

Unavailable

48

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

49

Adjuster Screw Ass'y | Includes 44 - 45.

415006100

Unavailable

50

Screw M4 x 40

732603004

Unavailable

51

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

52

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

53

Headlamp Support

517218500

Unavailable

54

Case Holder

414806500

Unavailable

55

Open Clamp

414176000

$1.99

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Flat Washer M5

234051410

$0.53

58

Elastic Stop Nut M5

232551414

$0.87

Hex. Flange Elastic Nut M5

233251414

$1.04

59

Spring

517168600

$7.39

60

Câblage ass. (non ill)

515164400

Unavailable

61

Hood Wiring Ass'y (non ill)

515164700

Unavailable
