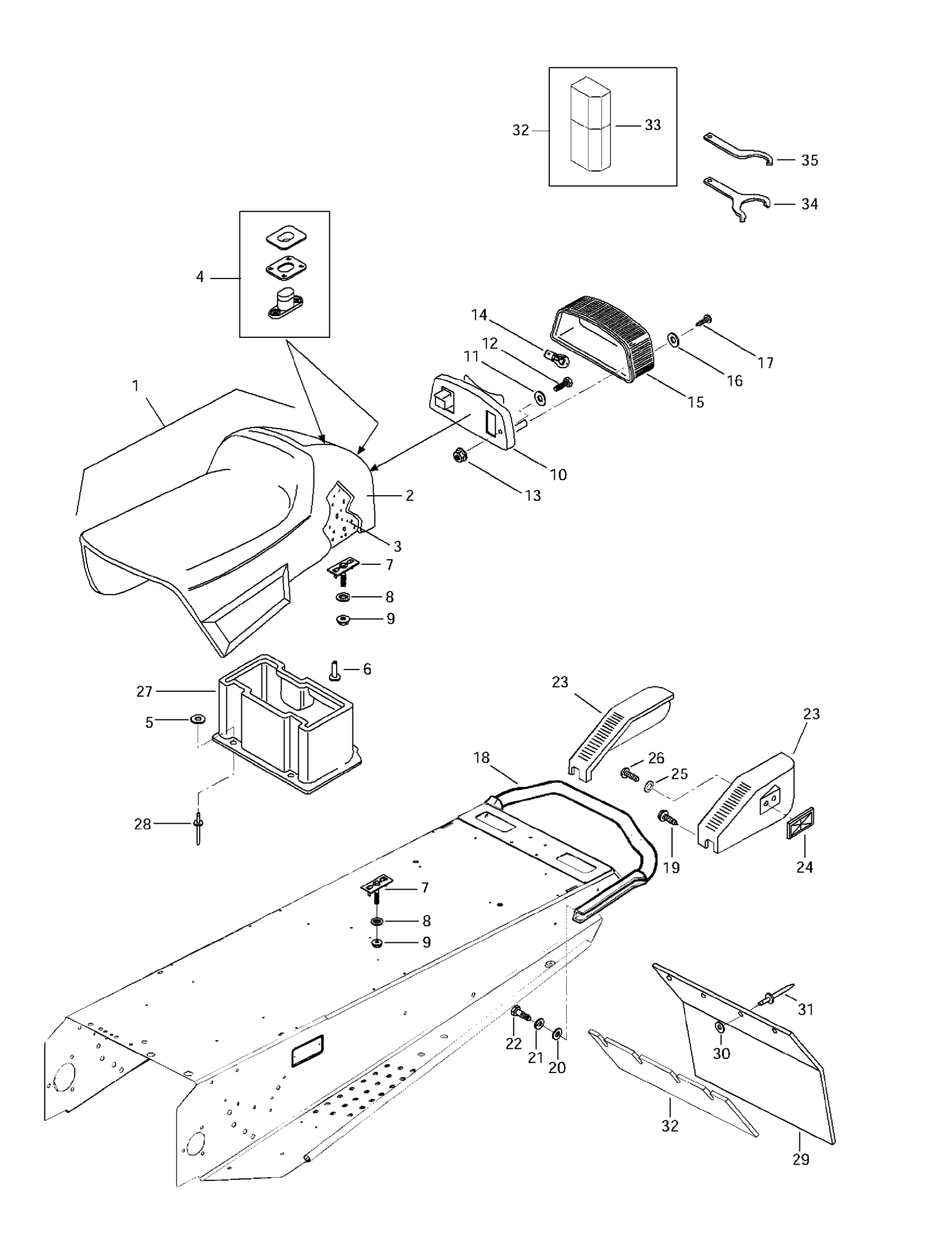

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover (1 pass.)

415037103

Unavailable

3

Foam Seat (1 pass.)

414891300

Unavailable

4

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

5

Flat Washer

517225900

$0.17

6

Not Available As Spare Part - Friction Washer

Unavailable

7

WELD SCREW - Call your local BRP dealership

732605024

Unavailable

8

Push Nut

732610072

$1.72

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Flat Washer

517225900

$0.17

12

Hex. Screw M5 X 30

207053044

$0.98

13

Hex. Flange Elastic Nut M5

233251414

$1.66

14

Bulb

520000758

$7.49

15

Lens

414513700

$26.89

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.69

21

Lock Washer 8 mm

234181401

$0.89

22

Hex. Screw M8 X 20

207182044

$0.61

23

RH Moulding Ass'y | Includes 26 - 29.

580642000

Unavailable

LH Moulding Ass'y

580642100

Unavailable

24

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

25

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

26

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

27

Rear Trunk

572039802

Unavailable

28

Pop Rivet 3/16"

293150100

$1.08

29

Snow Guard

572030100

Unavailable

30

Flat Washer

517225900

$0.17

31

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

32

Reinforcement | Formula Z. Formula 583.

572097000

Unavailable

32

Tool Kit

529027900

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

$0.95

Socket Wrench 21/26 mm

529014800

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Was 412500100 Rope-Starter

219704403

$10.15

Starter Grip

529000060

$11.40

Spacing Tool

529035501

$4.79

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

33

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

34

ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership

529019000

Unavailable

35

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable
