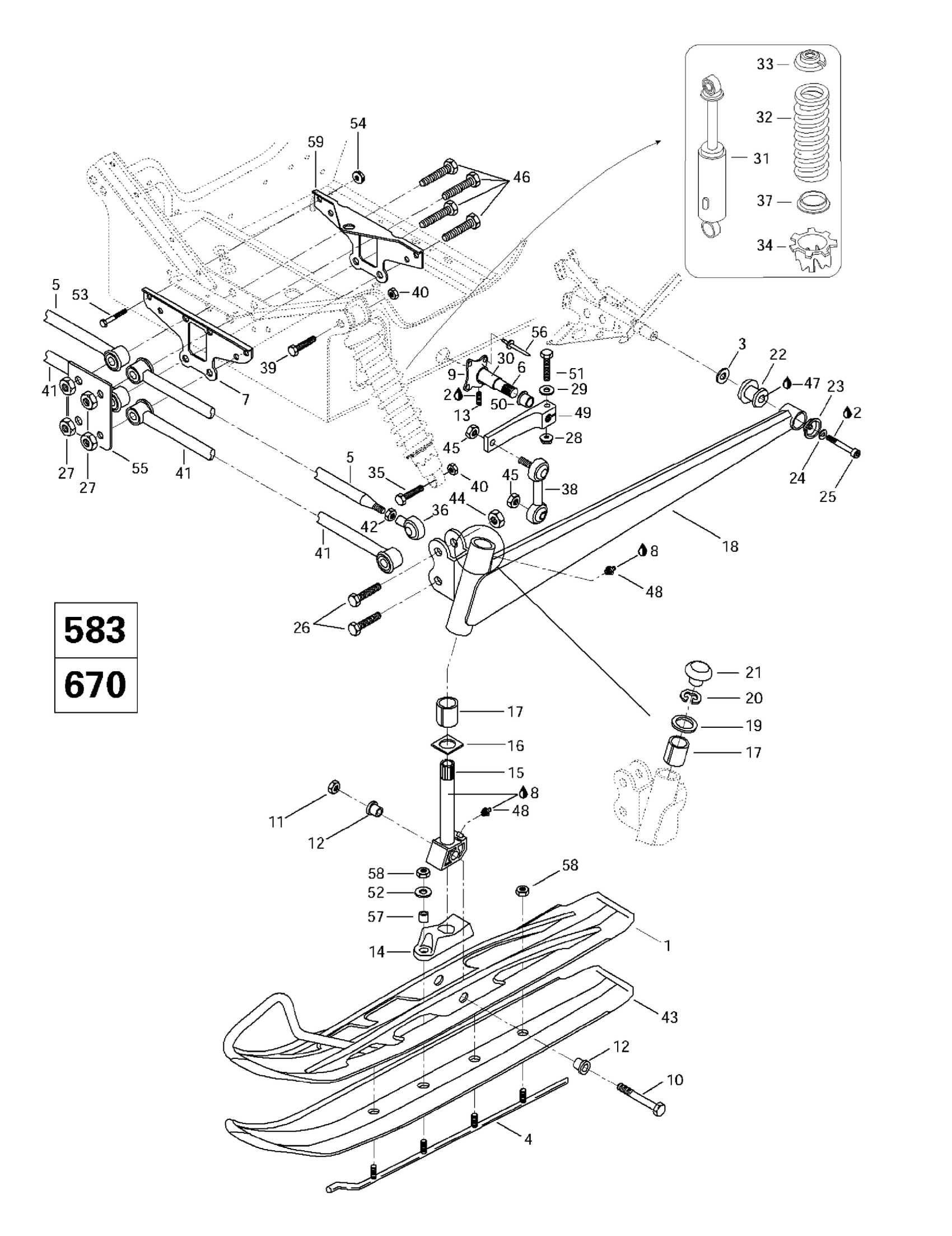

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 07- Front Suspension And Ski (583, 670) Diagram

#

Description
Price

1

Ski (Narrow)

505066610

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

WASHER - Call your local BRP dealership

503146700

Unavailable

4

Runner (6 Carbide)

505066720

Unavailable

5

Arm Ass'y | MX Z 500. MX Z 583.

580649900

Unavailable

6

Stabilizator

506134300

Unavailable

Stabilisator

486073600

Unavailable

Stabilisator

486073800

Unavailable

Stabilisator

486074000

Unavailable

7

Front Link Plate

517254800

Unavailable

8

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

9

Housing

506139000

Unavailable

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

Socket Set Screw M8 X 10

414440800

$4.12

14

Ski Stopper

570053500

Unavailable

15

Ski Leg

506139200

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm (Yellow) | MX Z 583. MX Z 670.

506136910

Unavailable

RH Swing Arm (Yellow) | MX Z 583. MX Z 670.

506136810

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

CUP - Call your local BRP dealership

506079600

Unavailable

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 55

222025565

Unavailable

27

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Flat Washer 8 mm

234081410

$0.83

30

Main Tube

506136200

Unavailable

31

Front Shock (HPG) (Canada, U.S.A. Only) | MX Z 500.

414956700

Unavailable

32

Shock Spring (Yellow) | Mach 1. Mach Z.

414956300

Unavailable

33

Spring Stopper

706200881

$12.99

34

Adjustment Cam

505073625

$12.99

35

Hex. Screw M10 X 55

207005544

$2.22

36

RH Ball Joint | Formula Z 583. Formula Z 670.

415042500

Unavailable

37

Spring Guide

503191872

$2.29

38

Double Ball Joint

415042300

Unavailable

39

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

Elastic Locking Nut M10 X 1.5

233601416

$1.69

41

Arm Ass'y

580650800

Unavailable

42

Hex. Jam Nut M14

232170411

$1.48

43

Ski Liner (Plastic, Black)

572095800

Unavailable

Ski Liner (Plastic, Yellow)

572096000

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Elastic Locking Nut M10 X 1.5

233601416

$1.69

46

Hex. Screw M12 x 100

732601113

Unavailable

47

Grease, Super Lube

293550030

$28.99

48

Grease Fitting

408200700

$3.49

49

Stabilizer Lever

506134402

Unavailable

Lever-Stabilizer

506141100

Unavailable

50

CUSHION - Call your local BRP dealership

415039500

Unavailable

Cushion

561723300

Unavailable

Cushion

486073900

Unavailable

Bushing

486074100

Unavailable

51

Hex. Screw M8 X 45

207084544

$1.48

52

Flat Washer 8 mm

234082410

$1.47

53

Hex. Screw M6 X 55

207065544

$2.11

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

Support

518306700

Unavailable

56

Rivet | MX Z 583. MX Z 670.

39040900

Unavailable

57

BUSHING - Call your local BRP dealership

506117300

Unavailable

58

Hex. Elastic Stop Nut M8

232581414

$0.56

59

Rear Link Plate

517254900

Unavailable
