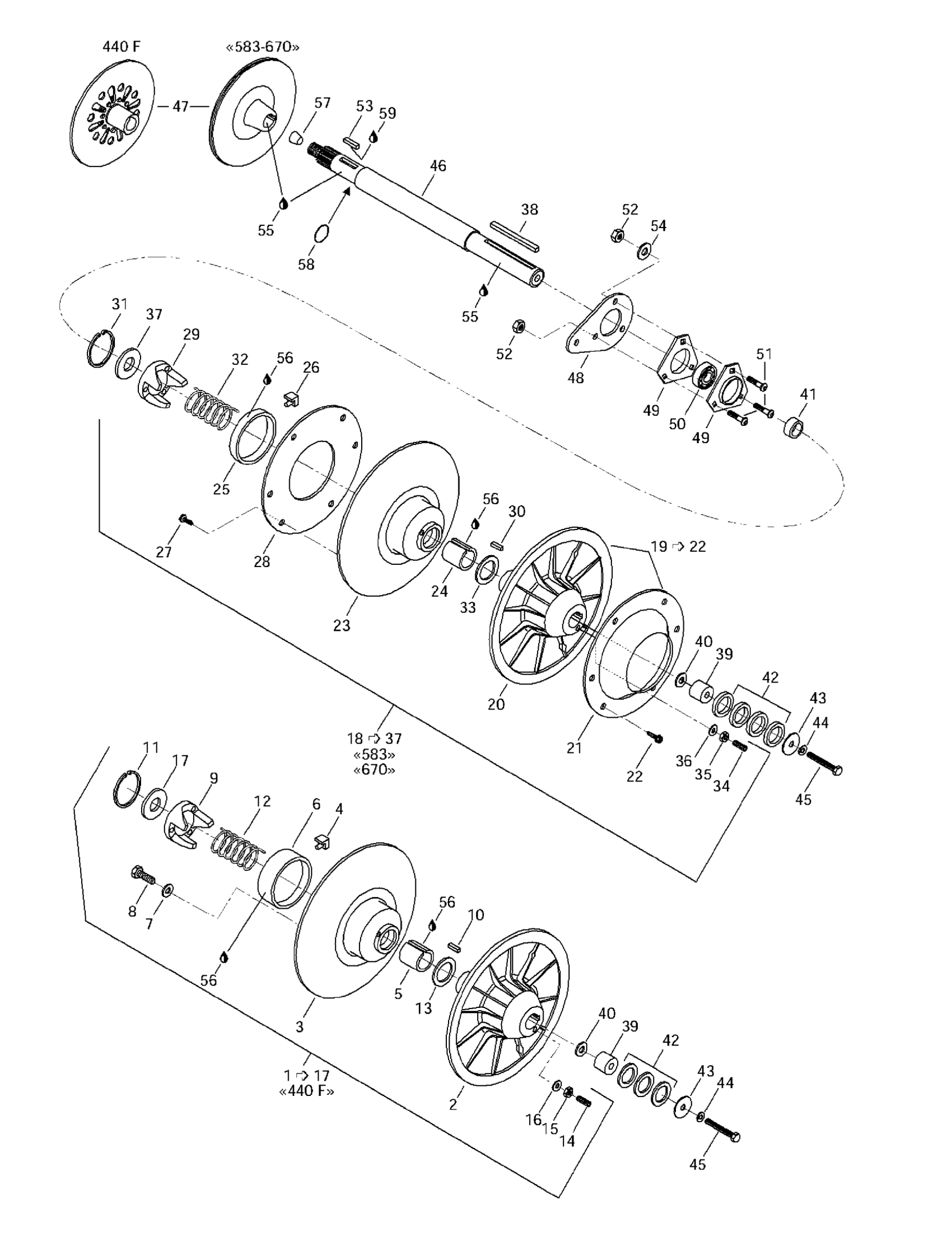

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 05- Driven Pulley Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Flange
504141600
Unavailable
3
Sliding Flange Ass'y | Includes 24 - 31. Formula III 800.
504143200
Unavailable
4
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
5
BUSHING - Call your local BRP dealership
415011200
Unavailable
6
Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).
860423000
Unavailable
7
Flat Washer
399910000
Unavailable
8
SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership
732600022
Unavailable
9
Cam (47 Deg.) | Grand Touring 583.
504140900
Unavailable
10
Key
414820800
Unavailable
11
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
12
RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.
414505800
Unavailable
13
Thrust Washer
504141900
Unavailable
14
Allen Screw M6 x 30
223563065
Unavailable
16
WASHER - Call your local BRP dealership
420245370
Unavailable
17
Washer
504141800
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Fixed Flange Ass'y | Includes 19 - 22. MX Z 670 HO.
504142200
Unavailable
20
Fixed Flange
504141600
Unavailable
21
CUP - Call your local BRP dealership
504142000
Unavailable
22
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
23
Sliding Flange Ass'y | Includes 23 - 28. MX Z 670 HO.
504144000
Unavailable
24
BUSHING - Call your local BRP dealership
415011200
Unavailable
25
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
26
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
27
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
28
Ring
504142100
Unavailable
29
Cam (50 Deg.)
504096100
Unavailable
30
Key
414820800
Unavailable
31
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
32
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
33
Thrust Washer
504141900
Unavailable
34
Allen Screw M6 x 30
223563065
Unavailable
36
WASHER - Call your local BRP dealership
420245370
Unavailable
37
Washer
504141800
Unavailable
38
Key
414581300
Unavailable
39
Countershaft Extension | Formula S.
504260700
Unavailable
Counter Shaft Extension
504091600
Unavailable
40
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
41
Shim | Formula S.
504094000
Unavailable
Shim
504128300
Unavailable
42
SHIM - Call your local BRP dealership
504108200
Unavailable
43
WASHER - Call your local BRP dealership
517078700
Unavailable
45
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086044
Unavailable
46
Countershaft
504098300
Unavailable
Countershaft | Formula Z.
504139400
Unavailable
47
Brake Disk | Formula 500. Formula 500 Deluxe. Formula 583.
507030600
Unavailable
Brake Disk | Formula Z.
507030700
Unavailable
48
Spacer
501022300
Unavailable
49
FLANGE - Call your local BRP dealership
501025000
Unavailable
50
BALL BEARING - Call your local BRP dealership This part replaces 504152072.
415129552
Unavailable
BALL BEARING WITH COLLAR - Call your local BRP dealership
405408300
Unavailable
51
Allen Screw M8 x 25
732601156
Unavailable
53
KEY - Call your local BRP dealership
507021300
Unavailable
55
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
57
CORK - Call your local BRP dealership
414784800
Unavailable
59
Not Available As Spare Part - Friction Washer
Unavailable
