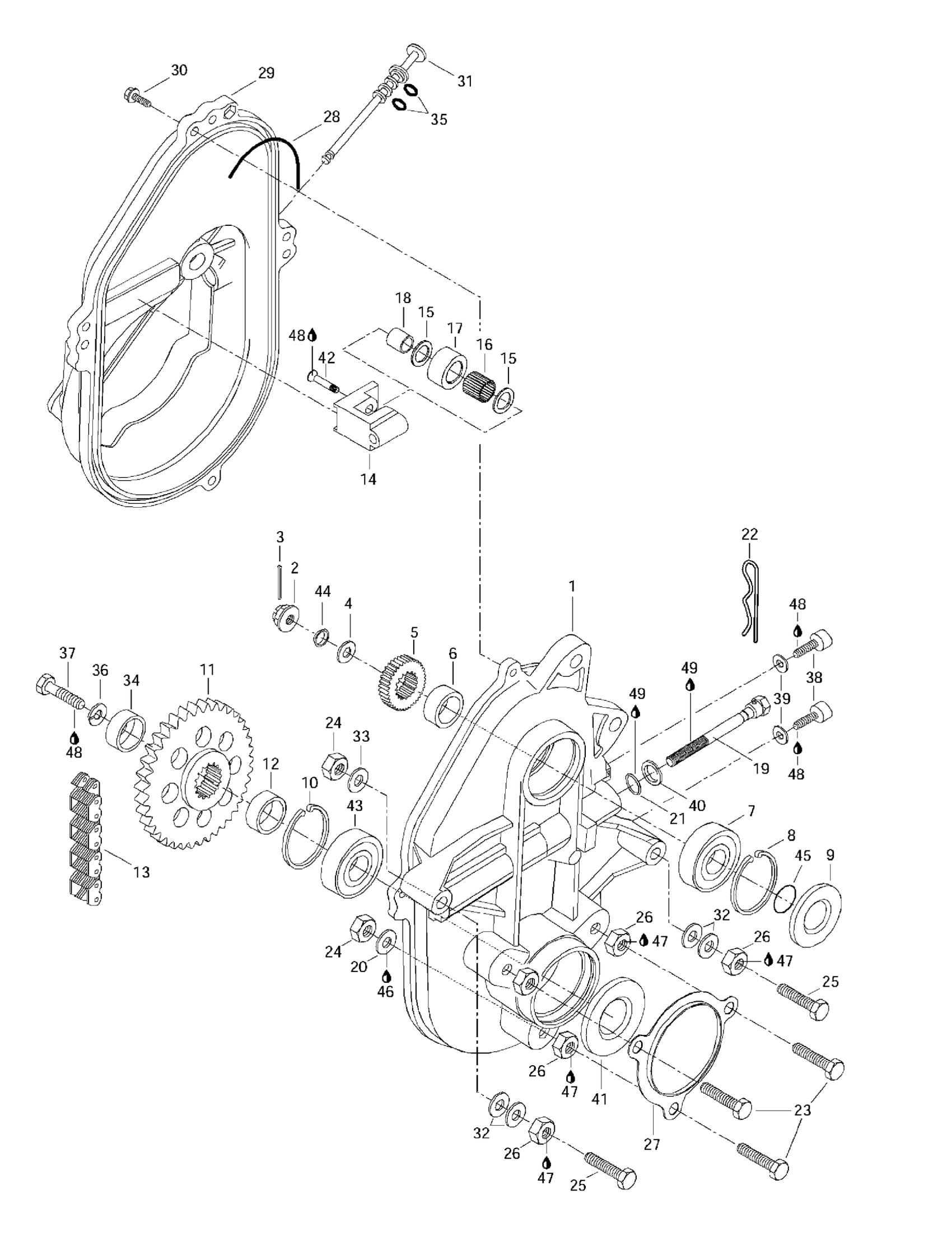

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 05- Chaincase Diagram

#

Description
Price

1

Chaincase | Formula SL.

504144701

Unavailable

Chaincase | Formula 500. Formula Z. Formula 583.

504144700

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

3

Cotter Pin

371801300

Unavailable

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

4

Washer

504087100

Unavailable

5

22 Teeth Sprocket (Narrow) | Formula Deluxe 500.

504074700

Unavailable

Sprocket 25 Teeth

504153912

$44.99

SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership | GSX 800 HO

504085300

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

$12.11

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

Seal | Formula Z 583. Formula Z 670.

414531200

Unavailable

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

Circlip (Int-rior)

414784900

Unavailable

11

Sprocket 44Th

504070900

Unavailable

Sprocket Large (44 Tooth) | Formula Z.

504085500

Unavailable

12

Spacer | MX Z 440F.

504071700

Unavailable

Inner Shim

501021800

Unavailable

13

Drive Chain, (72 Links-Narrow) | Formula Deluxe 500.

412105500

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

Tensioner Adjustment Screw (Forging) | Formula 500. Formula Z. Formula 583.

732601267

Unavailable

20

Copper Washer

732900020

Unavailable

21

O-Ring

414484400

$7.51

22

Hair Pin

414575600

$1.89

23

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.69

25

Hex. Screw M10 x 70

732601111

Unavailable

26

Spacer

504083800

Unavailable

27

Protector

501022100

Unavailable

28

O-Ring

414362300

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

$134.99

30

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

31

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

32

WASHER - Call your local BRP dealership

504073700

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

Cap | MX Z 440F.

501023100

Unavailable

Cap

501022400

Unavailable

35

O-RING - Call your local BRP dealership

414969400

Unavailable

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Screw M10 X 25

207102544

$1.37

38

Socket Head Screw M8 x 10

732601132

Unavailable

39

Washer

504082900

$2.64

40

Flat Washer 10 mm

234001410

$1.26

41

Seal Oil Ass'y

504152076

$27.99

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

Ball Bearing

293350115

$12.11

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

44

Spring Washer

417000900

Unavailable

45

Circlip

371910000

$1.19

46

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

47

Loctite 243, 10 ml

293800060

$21.49

48

Loctite 271, 10 ml

293800005

$26.99

49

Sealant, 100 gr

413707100

Unavailable
