Description

Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420996939

Unavailable

1

Starter Housing

420910068

Unavailable

2

Rewind Spring

420939115

$30.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Rope Sheave

420852283

$62.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Key Clamp

420852070

$4.23

7

Pawl

420852296

$20.99

8

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$9.27

11

LOCK RING - Call your local BRP dealership

420945770

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Socket Head Screw M6 x 16

420241237

$2.22

14

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Starter Grip

572084400

$14.83

17

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

17

Connecting Flange | Skandic 600.

420810860

Unavailable

18

DAMPER RING - Call your local BRP dealership | Skandic 600.

420860950

Unavailable

19

Socket Head Screw M6 X 25

205062544

$1.15

20

Rewind Starter Ass'y | Includes 4 - 13.

420887440

Unavailable

20

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$270.49

21

Rewind Spring

420939115

$30.49

22

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

23

Was 412500100 Rope-Starter

219704403

$158.99

24

Key Clamp

420852070

$4.23

25

Pawl

420852296

$20.99

26

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

Unavailable

27

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

28

Pawl Spring

420938986

$9.27

29

LOCK RING - Call your local BRP dealership

420945770

Unavailable

30

Clamp | Skandic 600.

420851330

Unavailable

31

Socket Head Screw M6 x 16

420241237

$2.22

32

Elastic Stop Nut M6

232561414

$0.55

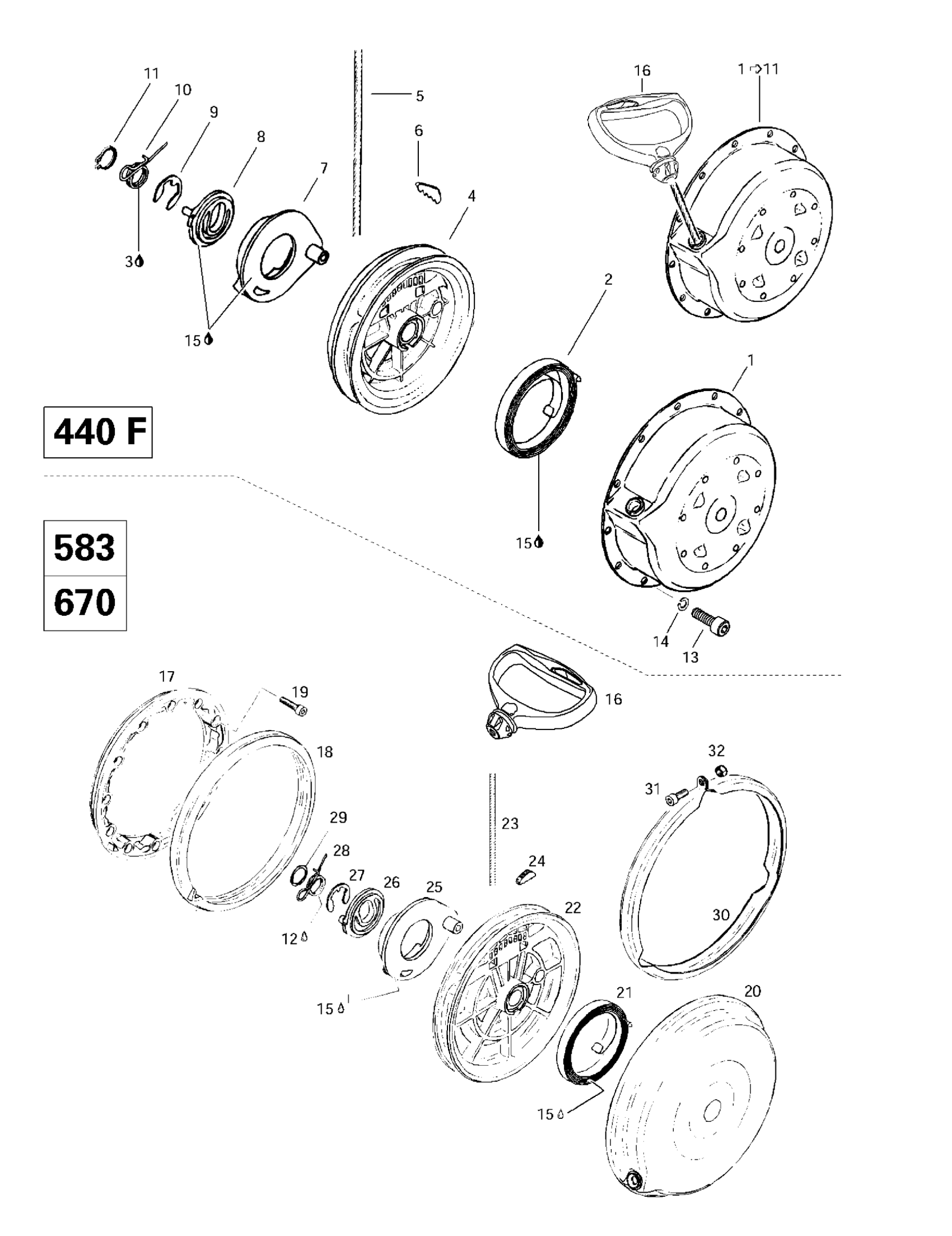

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 04- Rewind Starter Diagram

Rewind Starter Ass'y | Includes 1 - 11.

Starter Housing

Rewind Spring

Not Available As Spare Part - Friction Washer

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

CIRCLIP - Call your local BRP dealership

Pawl Spring

LOCK RING - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Socket Head Screw M6 x 16

WASHER-LOCK DIN.128 - Call your local BRP dealership

Was 293550004 Dielectric Grease, 150 g

Starter Grip

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

Connecting Flange | Skandic 600.

DAMPER RING - Call your local BRP dealership | Skandic 600.

Socket Head Screw M6 X 25

Rewind Starter Ass'y | Includes 4 - 13.

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

Rewind Spring

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

CIRCLIP - Call your local BRP dealership

Pawl Spring

LOCK RING - Call your local BRP dealership

Clamp | Skandic 600.

Socket Head Screw M6 x 16

Elastic Stop Nut M6
