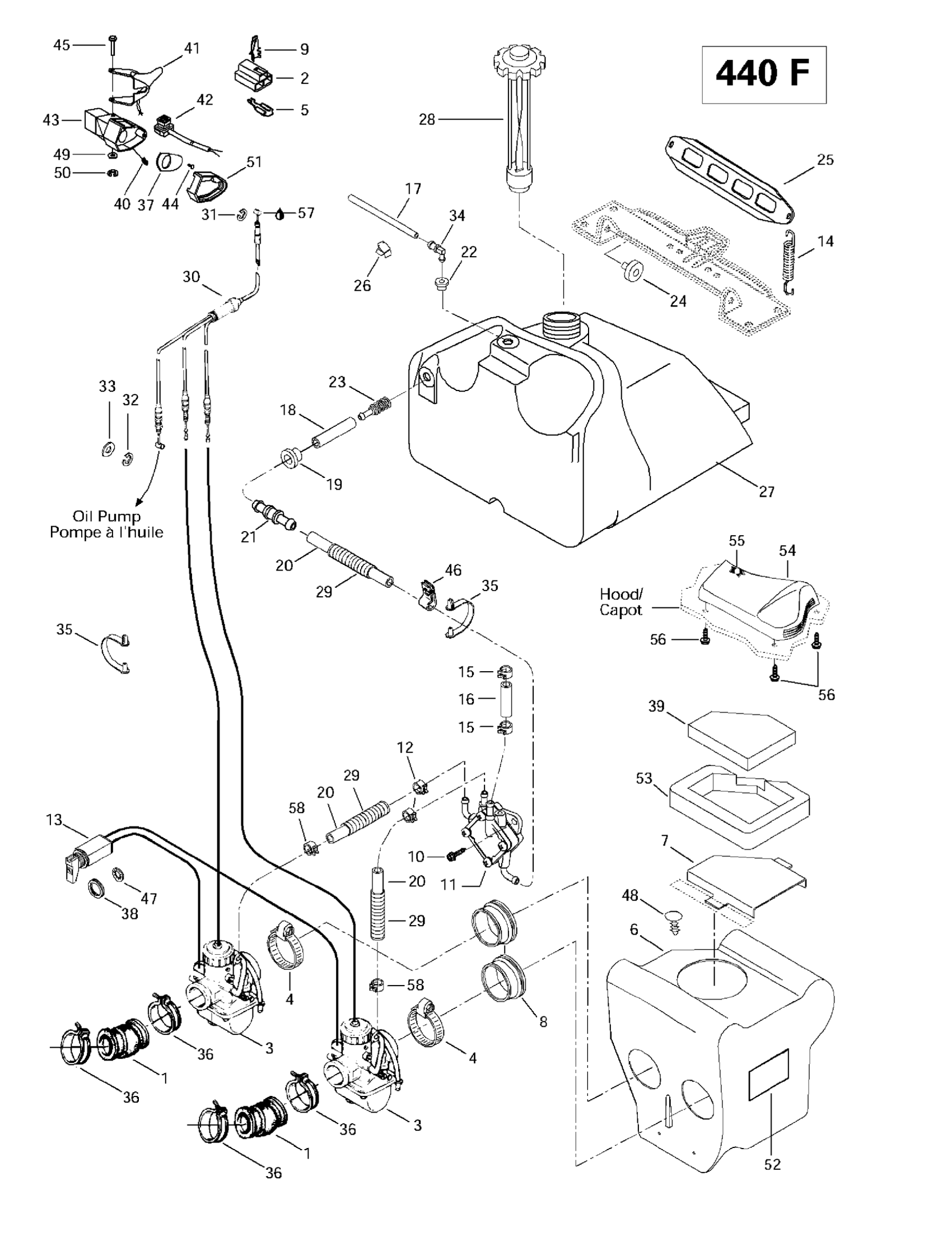

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 02- Fuel System (440F) Diagram
#
Description
Price
1
Rubber Flange
570045000
Unavailable
2
Female Terminal Housing (3 circuits)
409008500
Unavailable
3
Carburetor VM 34 479 (PTO) | Includes 1 - 37.
403130200
Unavailable
Carburetor VM 34 480 (MAG)
403130300
Unavailable
4
TRIDON GEAR CLAMP - Call your local BRP dealership
408801600
Unavailable
5
Female Terminal PACKARD
561503200
Unavailable
6
Air Silencer (Incl. 4,7,8,39,48,52,53) | Formula S.
580649200
Unavailable
7
Intake Grill
517285900
Unavailable
8
Adaptor 34 mm
570043600
Unavailable
9
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
11
Fuel Pump
403801000
Unavailable
13
CHOKE CABLE - Call your local BRP dealership
414967000
Unavailable
14
SPRING - Call your local BRP dealership
517182100
Unavailable
17
Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.
414296900
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
25
Fuel Tank Bracket
517249200
Unavailable
27
Fuel Tank
572093100
Unavailable
28
Fuel Tank Cap
415074400
Unavailable
30
THROTTLE CABLE AND HOUSING - Call your local BRP dealership
414883100
Unavailable
35
CABLE CLIP - Call your local BRP dealership
414379300
Unavailable
36
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
38
NUT-PLASTIC - Call your local BRP dealership
512059364
Unavailable
39
Air Filter
415037600
Unavailable
44
Screw
414473200
Unavailable
46
CLIP - Call your local BRP dealership
414351600
Unavailable
47
Lock Washer, Interior Teeth
394103300
Unavailable
51
THROTTLE COVER - Call your local BRP dealership
572044600
Unavailable
52
Warning Decal
414161500
Unavailable
53
Foam Lower
415037700
Unavailable
54
INTAKE COVER - Call your local BRP dealership
572077900
Unavailable
56
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
57
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
