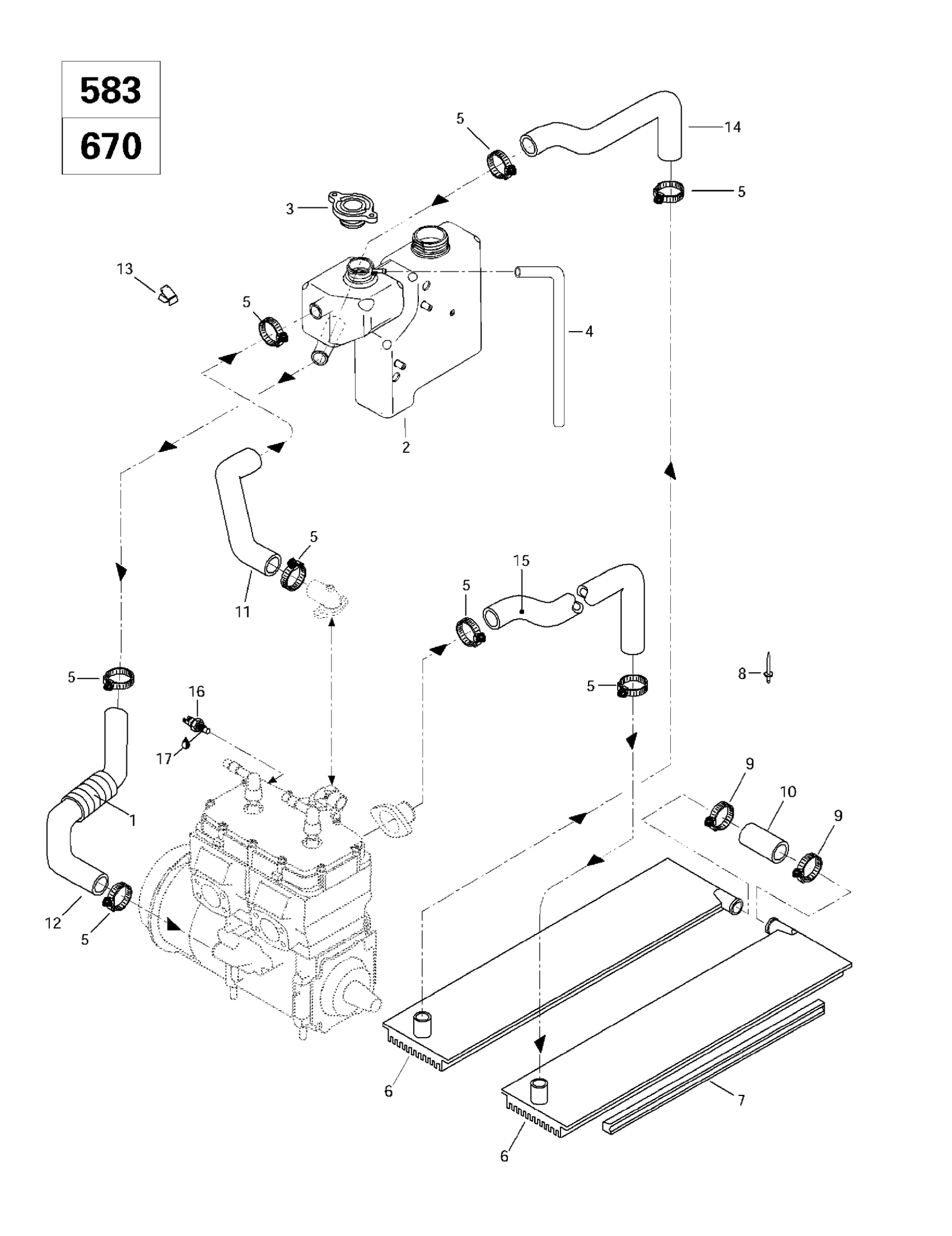

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 01- Cooling System Liquid (583, 670) Diagram

#

Description

Price

1

TUBING - Call your local BRP dealership

414991800

Unavailable

2

Coolant Tank

572076900

Unavailable

3

Pressure Cap

509000187

$29.49

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator

517280510

Unavailable

LH Radiator | Formula Z. Formula 583.

517290601

Unavailable

7

Radiator Protector

415056500

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Clamp Tridon

408803400

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Outlet Hose | MX Z 670 HO.

414973200

Unavailable

12

Engine Inlet Hose

415010400

Unavailable

13

Clip

414227300

$1.67

14

Radiator Outlet Hose

414973000

Unavailable

15

Radiator Inlet Hose | MX Z 670 HO.

415008400

Unavailable

16

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

17

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
