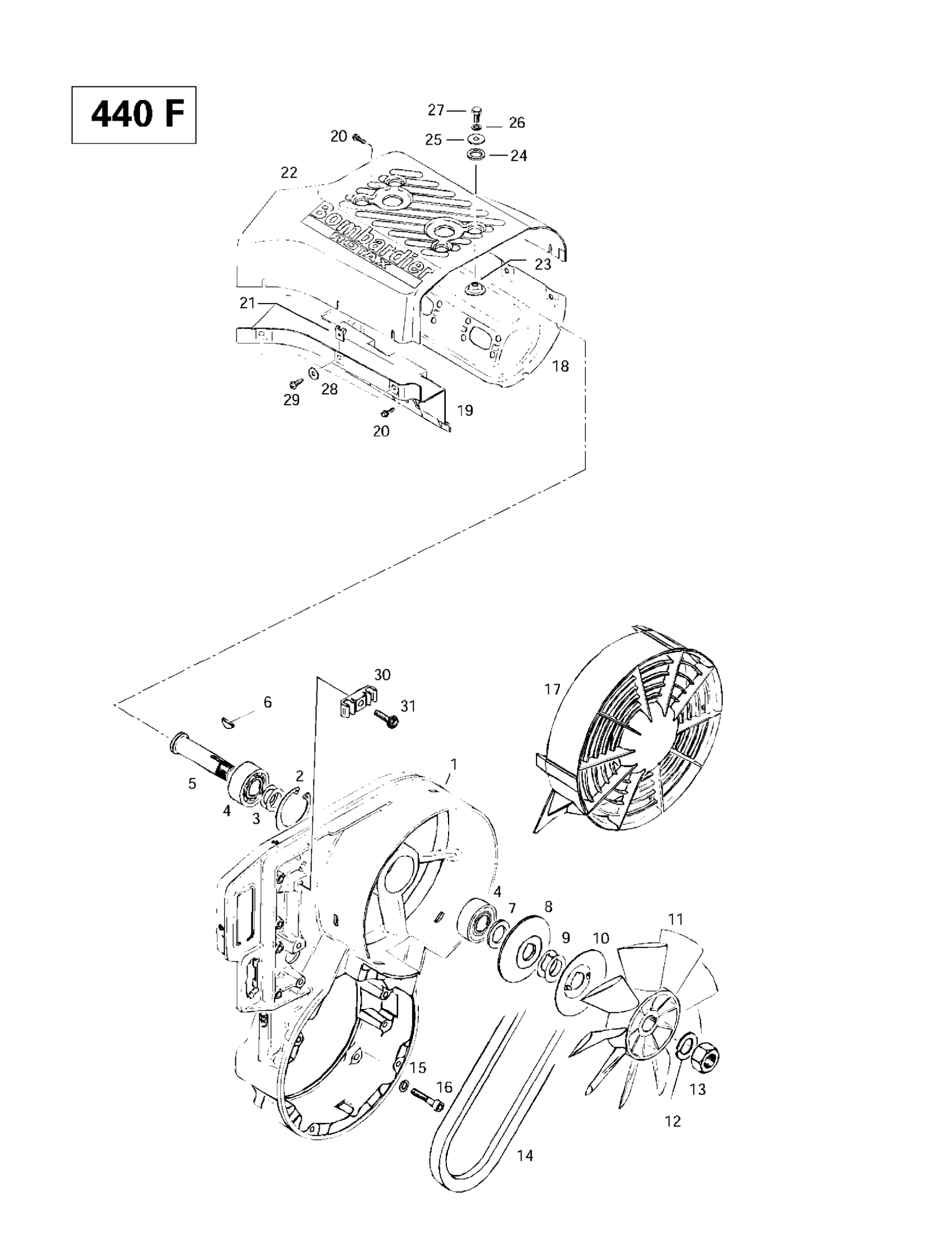

Ski-Doo MX Z 440 F/Z 583/Z 670 1997 01- Cooling System Fan (440F) Diagram

#

Description
Price

1

Fan Housing

420912202

Unavailable

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

Shim 0.2 mm

420827082

$3.17

10

Protection Washer

420980523

$13.16

11

FAN - Call your local BRP dealership

420866292

$98.99

12

Lock Washer

420945756

$3.17

13

Nut M16 This part replaces 420942285.

420942289

$10.33

14

V-Belt

414630800

$24.99

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

$1.69

17

FAN COVER - Call your local BRP dealership

420975695

Unavailable

18

Cylinder Cowl (Exhaust Side)

420810762

Unavailable

19

Cylinder Cowl (Carburator Side)

420810790

Unavailable

20

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

21

Spring Nut

420842390

$1.90

22

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810776

Unavailable

23

Cup Washer

420827817

$14.28

24

Rubber Washer

420960865

$2.11

25

Washer This part replaces 420227935.

420227936

$3.38

26

Washer-Lock Din.128

420945832

$1.15

27

Hex. Screw M8 x 16

207181644

$1.15

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

$0.72

30

CLAMP - Call your local BRP dealership

420860940

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09
