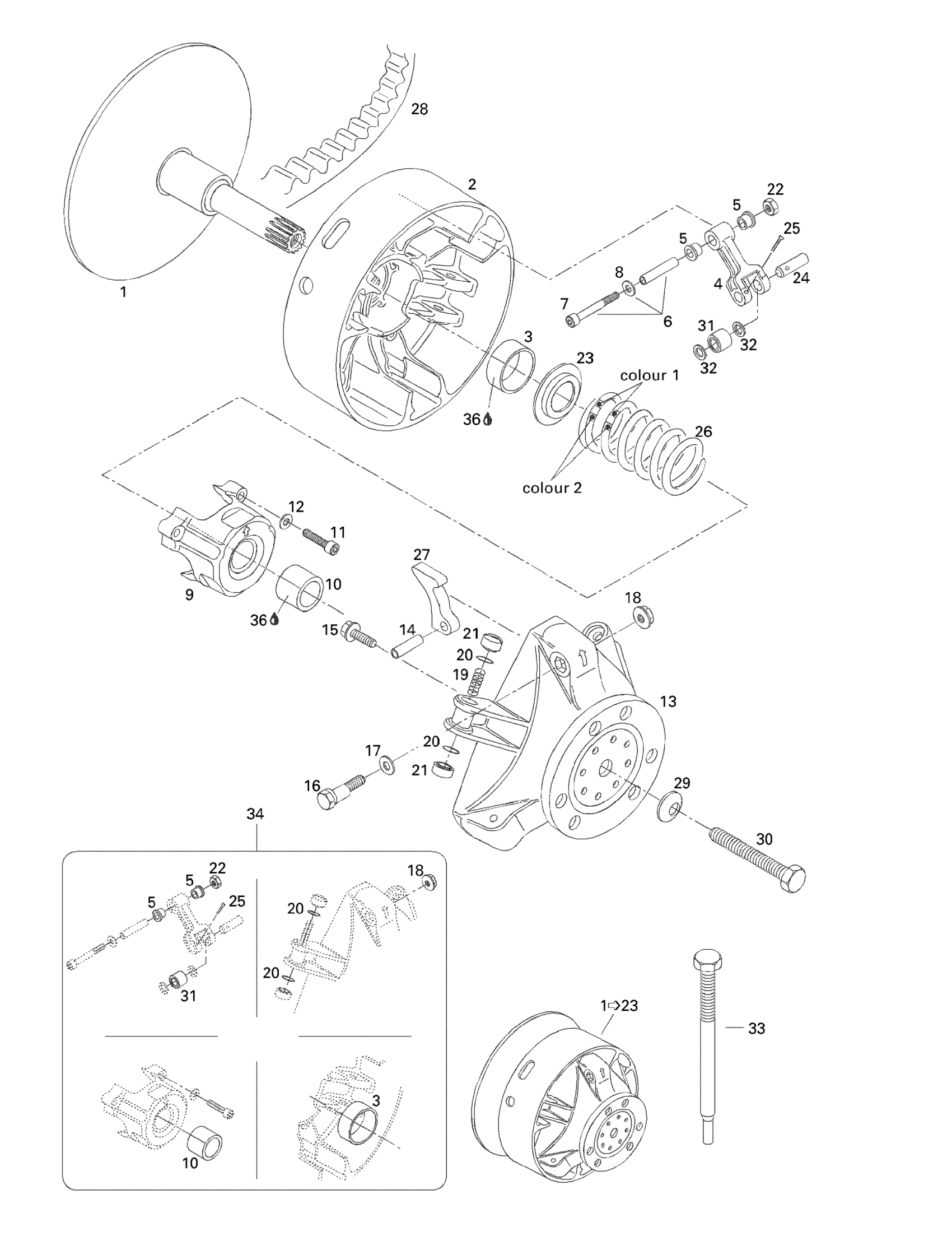

Ski-Doo MX Z 440 F, 1998 05- Drive Pulley Diagram

Drive Pulley Ass'y | Includes 1 - 23.

417221900

Unavailable

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.

417010000

Unavailable

Bushing

417004201

$25.99

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

Bushing

417004305

$11.52

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

Flat Washer 6 mm

234061410

$1.36

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

Bushing

417004501

$24.99

Allen Screw M6 x 40

222964066

Unavailable

WASHER - Call your local BRP dealership

420245370

Unavailable

Gouvernor Cup Ass'y

417004700

Unavailable

Pin M8 X 24

732804009

Unavailable

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Elastic Stop Nut M6

232561414

$0.55

Spring Seat

417005000

Unavailable

Pin

417004309

$25.99

Cotter Pin

250400060

$2.00

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

Ramp 291

417005291

Unavailable

Drive Belt

415060600

$104.99

Conical Spring Washer M12

250200005

$3.27

BOLT - Call your local BRP dealership

417113800

Unavailable

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Puller Inner Half

529007900

$56.99

Clutch Repair Kit

417006100

$189.99

High Altitude Kit (Not Shown)

861762500

Unavailable

Loctite 609, 10 ml

413703100

$26.99
