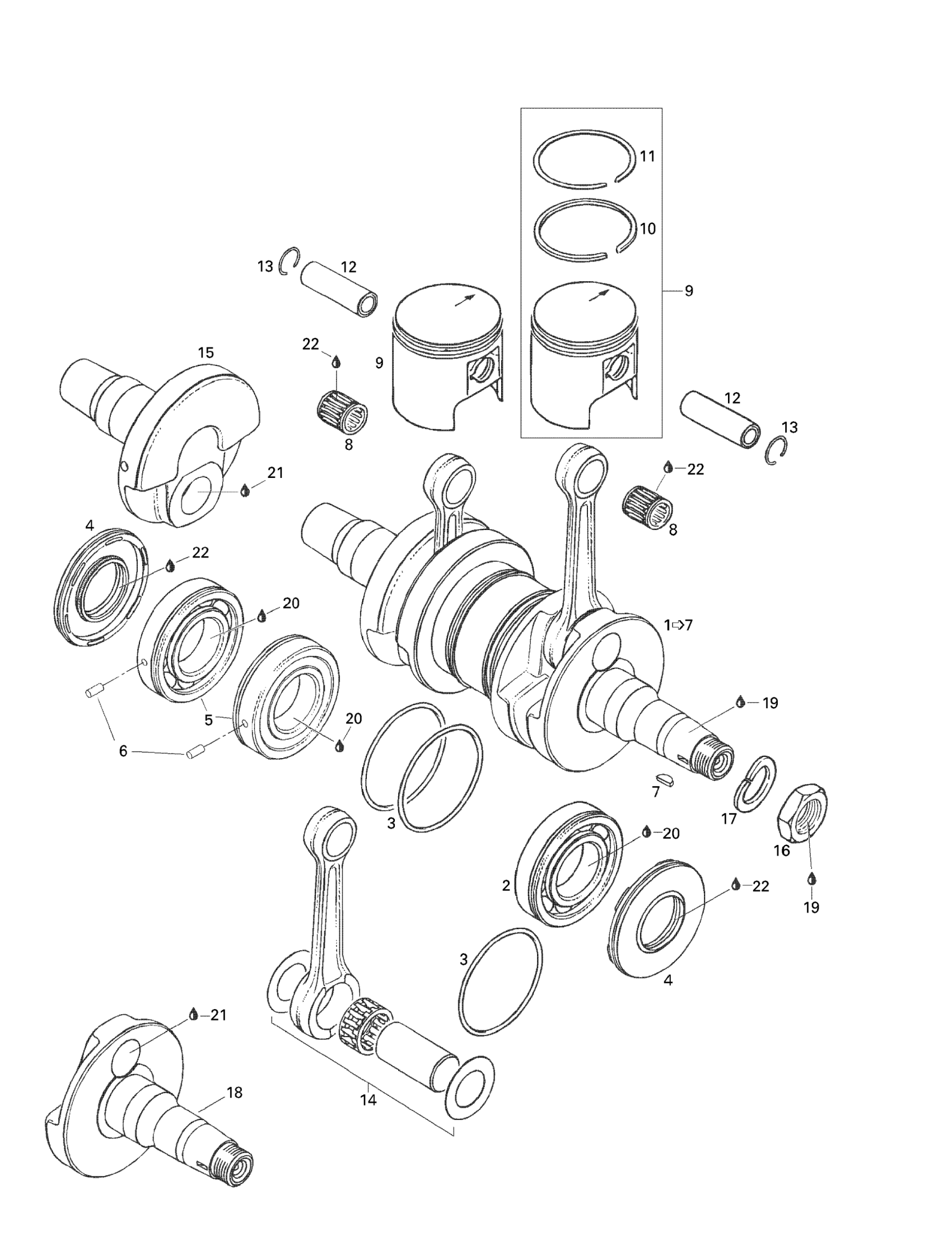

Ski-Doo MX Z 440 F, 1998 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 7.

420887247

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

Ball Bearing

420832573

$44.49

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

NEEDLE BEARING - Call your local BRP dealership

420832325

Unavailable

9

PISTON - Call your local BRP dealership | Includes 11 to 13

420887485

Unavailable

PISTON - Call your local BRP dealership | Includes 11 to 13

420887486

Unavailable

Oversize Piston Ass'y 67.93 mm

420887482

Unavailable

10

RING R 67.5 - Call your local BRP dealership

420915960

Unavailable

RING R 67.75 - Call your local BRP dealership

420915961

Unavailable

RING R 68 - Call your local BRP dealership

420915962

Unavailable

11

RING L 67.5 - Call your local BRP dealership

420915845

Unavailable

RING L 67.75 - Call your local BRP dealership

420915846

Unavailable

RING L 68.0 - Call your local BRP dealership

420915847

Unavailable

12

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

13

Piston Circlip

420945735

$4.46

14

Rod repair kit

420996334

Unavailable

15

Crankshaft half PTO

420818203

Unavailable

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Lock Washer, 22 mm

420945759

$1.90

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Sealant Loctite 648

219703000

$45.99

22

Dow Corning 111, 150 g

413707000

$59.99
