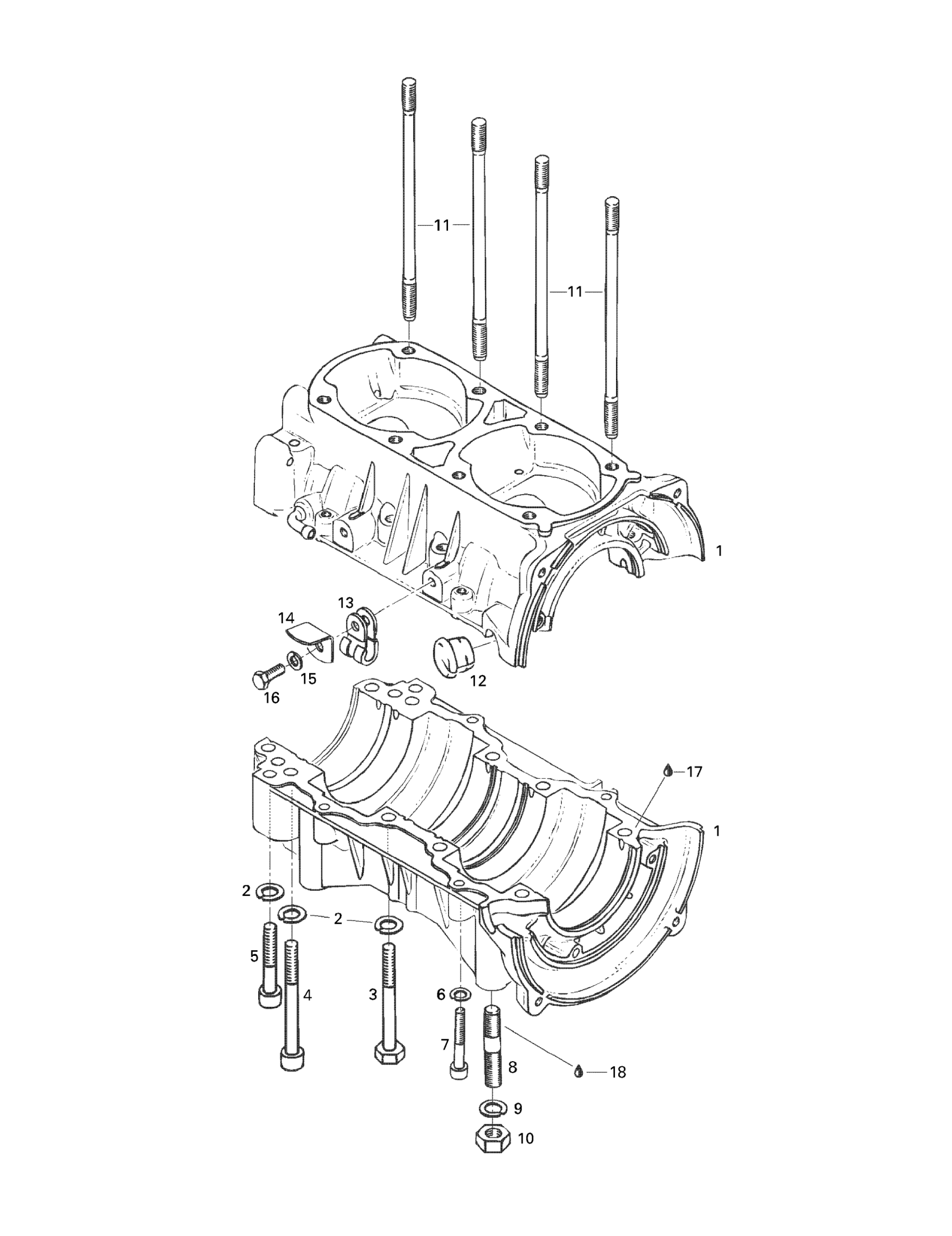

Ski-Doo MX Z 440 F, 1998 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7. Touring E. Touring E LT (2). Touring LE.

420887781

Unavailable

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Screw M8 X 70

420841201

$3.06

4

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

8

Stud M10 x 17 | Touring E. Touring E LT (2). Touring LE.

420840010

Unavailable

9

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.37

11

STUD M8 X 167 - Call your local BRP dealership

420841149

Unavailable

12

Cable Crommet | Touring E. Touring E LT (2). Touring LE.

420960288

Unavailable

13

Open Clamp

414176000

$1.99

14

Wire Support | Touring E. Touring E LT (2). Touring LE.

420953310

Unavailable

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Hex. Screw M6 X 16

207161644

$0.74

17

Sealant, 100 gr

413707100

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49
