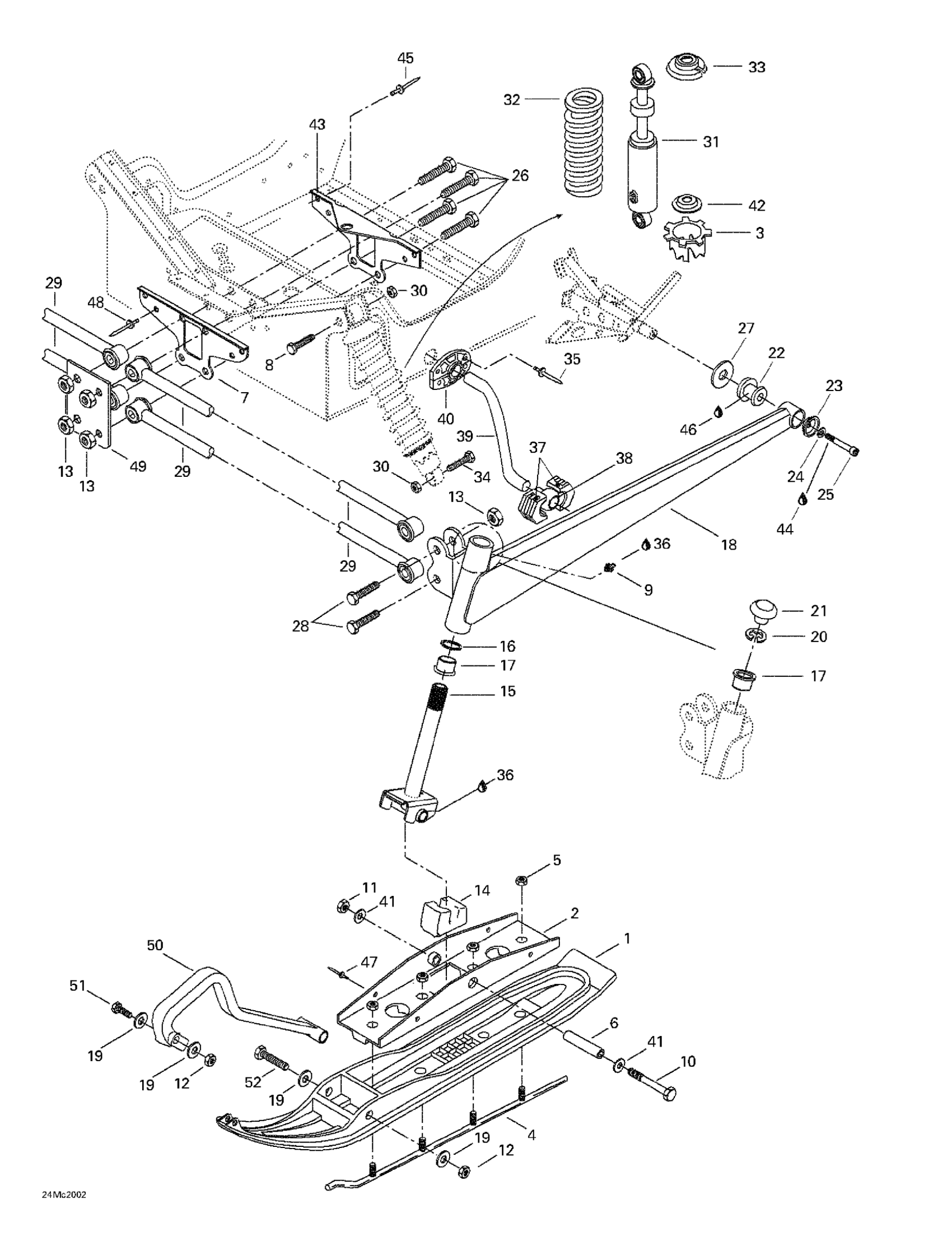

Ski-Doo MX Z 440, 2000 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$127.99

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

3

Adjustment Cam

505073625

$12.99

4

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

Spacer

506133300

$23.99

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Hex. Elastic Stop Nut M8

232581414

$0.56

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

15

Ski Leg

506151234

Unavailable

16

WASHER - Call your local BRP dealership

505070004

Unavailable

17

Cushion

505070003

$9.23

18

LH Swing Arm | Formula S. Formula DLX 380.

505070377

Unavailable

RH Swing Arm | Formula S. Formula DLX 380.

505070376

Unavailable

19

Flat Washer 8 mm

234081410

$0.83

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 100

230020044

Unavailable

27

WASHER - Call your local BRP dealership

503146700

Unavailable

28

Hex. Screw M12 x 50

207025044

Unavailable

29

Arm Ass'y

580650800

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Front Shock

505070015

Unavailable

32

Shock Spring (Black) | Formula DLX 500 LC.

415035900

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

Pop Rivet 3/16"

390402300

$0.75

36

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

37

Block Sliding

572069800

Unavailable

38

Ball Joint

506127300

Unavailable

39

Stabilisator

506145100

Unavailable

40

Bushing | 550F

505070191

Unavailable

41

Washer

732900049

$0.58

42

Spring Guide

503187500

$10.49

43

Rear Link Plate

517254900

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Grease, Super Lube

293550030

$28.99

47

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

48

Rivet pop 1/4"

390404900

Unavailable

49

Support

518306700

Unavailable

50

Black, Handle

505070963

$35.99

51

Hex. Screw M8 X 50

207085044

$1.48

52

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable
