2000 Ski-Doo MX Z 440 Driven Pulley Diagram

← All diagrams

Find the part on the Driven Pulley diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

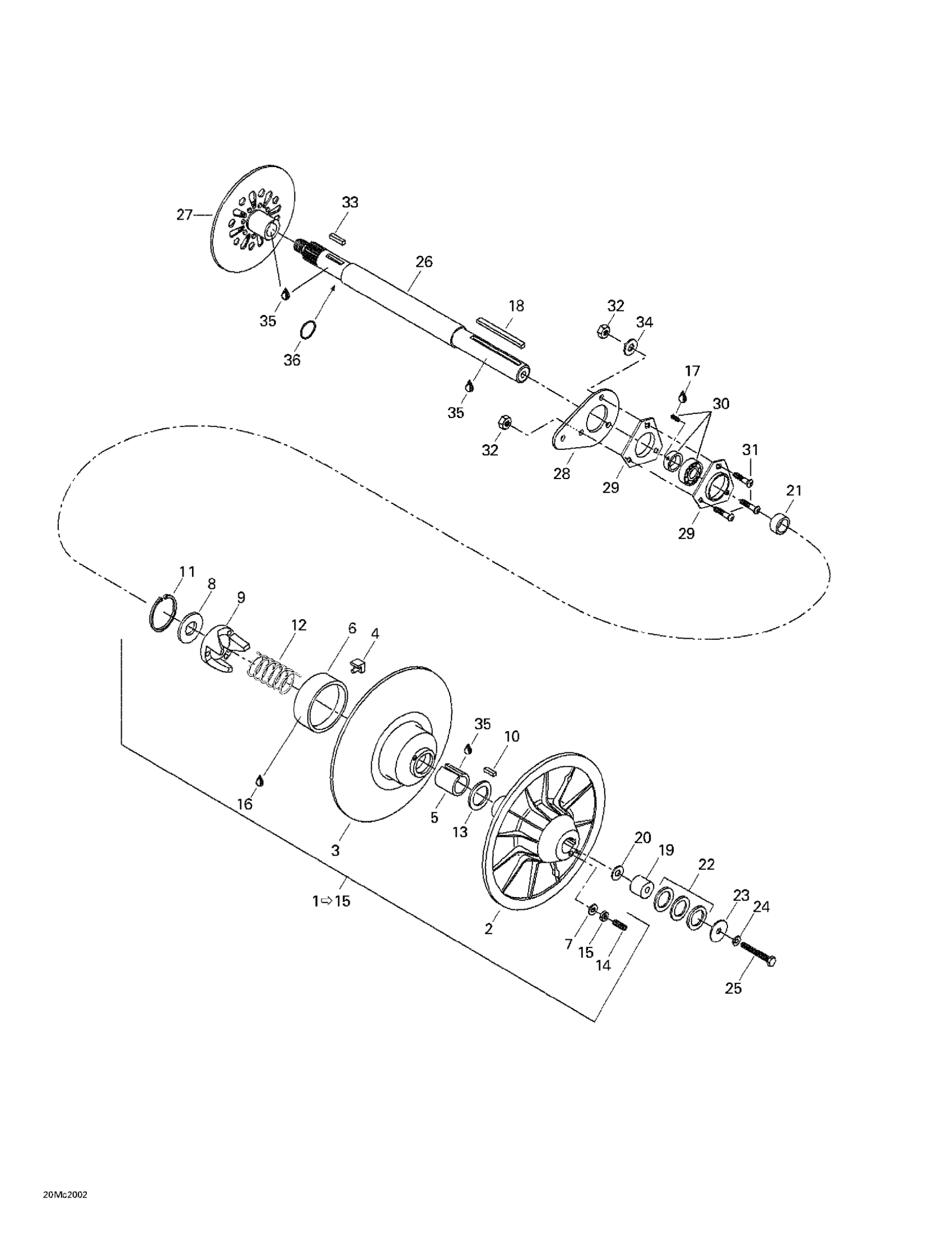

2000 Ski-Doo MX Z 440 Driven Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Not Available As Spare Part - Friction Washer

—
Out of stock

2

Fixed Flange

504141600

—
Out of stock

3

Sliding Pulley | Includes 24 - 27.

504143400

—
Out of stock

4

CAM SLIDER SHOE - Call your local BRP dealership

414918000

—
Out of stock

5

BUSHING - Call your local BRP dealership

415011200

—
Out of stock

6

GARLOCK BUSHING - Call your local BRP dealership

414876600

—
Out of stock

7

WASHER - Call your local BRP dealership

420245370

—
Out of stock

8

Washer

504141800

—
Out of stock

9

Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.

417126337

—
Out of stock

10

Key

414820800

—
Out of stock

11

CIRCLIP - Call your local BRP dealership

371903100

—
Out of stock

12

RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.

414505800

—
Out of stock

13

Thrust Washer

504141900

—
Out of stock

14

Socket Set Screw M6 X 30

206263044

—
Out of stock

15

Hex. Nut M6

232061414

3
Out of stock

16

Loctite 609, 10 ml

413703100

1

$24.58

In stock

17

Loctite 243, 10 ml

293800060

1
Out of stock

18

Key

414581300

—
Out of stock

19

Countershaft Extension | Formula S.

504260700

—
Out of stock

20

—

$0.70

In stock

21

Shim | Formula S.

504094000

—
Out of stock

22

—

$3.85

In stock

23

WASHER - Call your local BRP dealership

517078700

—
Out of stock

24

Lock Washer 8 mm

234181401

1
Out of stock

25

Hex. Screw M8 x 65

207086544

1

$1.42

In stock

26

Countershaft

504149300

—
Out of stock

27

Brake Disk

507032203

—
Out of stock

28

Spacer

501022300

—
Out of stock

29

FLANGE - Call your local BRP dealership

501025000

—
Out of stock

30

BALL BEARING WITH COLLAR - Call your local BRP dealership

405408300

—
Out of stock

32

Hex. Elastic Stop Nut M8

232581414

3
Out of stock

33

KEY - Call your local BRP dealership

507021300

—
Out of stock

34

Flat Washer 8 mm

234081410

1
Out of stock

35

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

36

Circlip

371910000

1

$0.98

In stock
