2000 Ski-Doo MX Z 440 Drive Pulley Diagram

← All diagrams

Find the part on the Drive Pulley diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

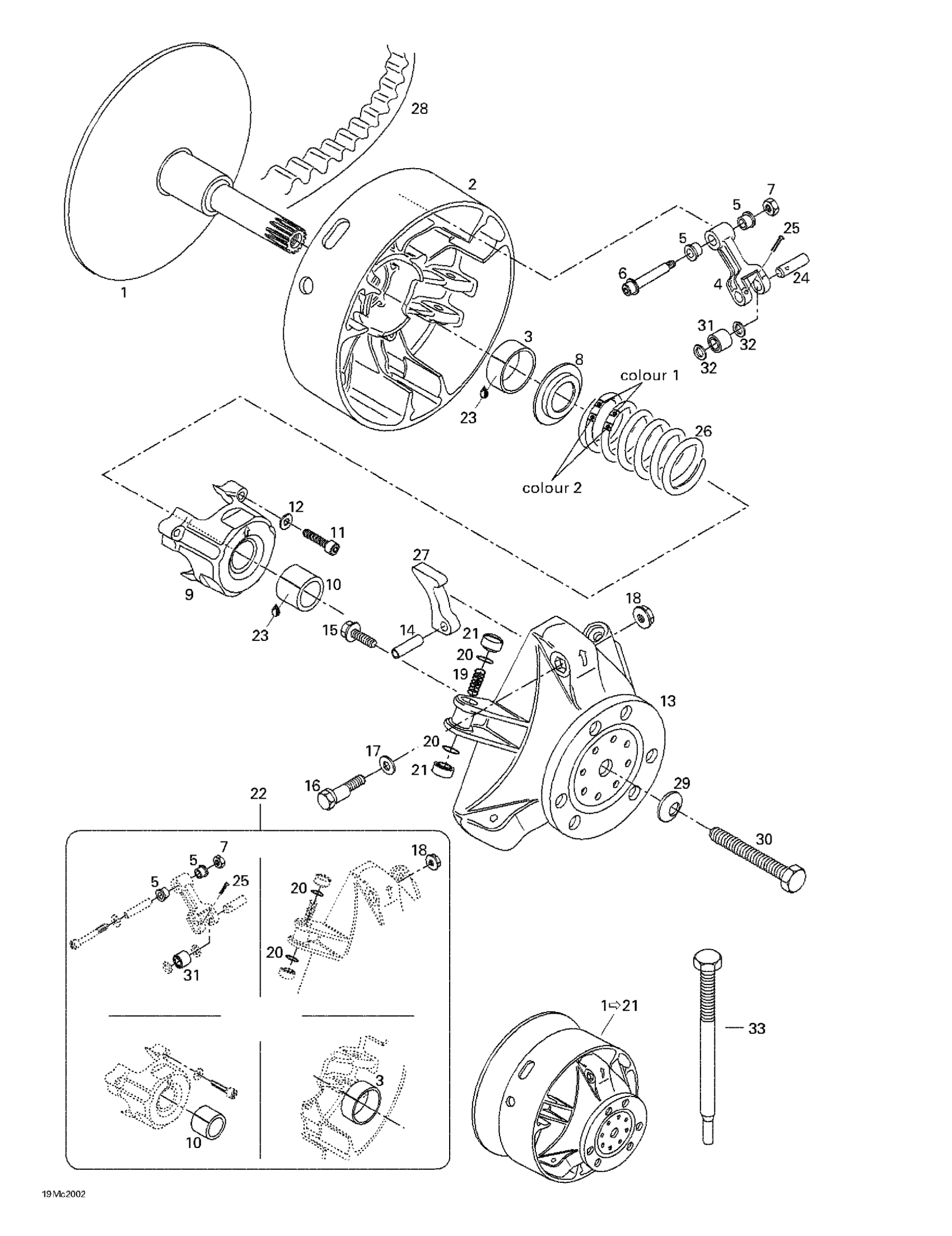

2000 Ski-Doo MX Z 440 Drive Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Drive Pulley Ass'y | Includes 1 - 21. Formula DLX 500.

417222284

—
Out of stock

1

Fixe Flange | Formula DLX 500.

417222071

—
Out of stock

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

—
Out of stock

3

Bushing

417004201

1

$23.82

In stock

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

—
Out of stock

5

Bushing

417004305

6

$4.62

In stock

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

—
Out of stock

7

Elastic Stop Nut M6

232561414

3
Out of stock

8

Spring Seat

417222044

—
Out of stock

9

Spring Cover Ass'y | Includes 9 - 10.

417222157

—
Out of stock

10

Bushing

417004501

1
Out of stock

11

Socket Screw M6 X 40

205064086

—
Out of stock

12

WASHER - Call your local BRP dealership

420245370

—
Out of stock

13

—

$349.20

In stock

14

Pin M8 X 24

732804009

—
Out of stock

16

—

$33.05

In stock

17

Washer

417005600

3
Out of stock

18

Hex. Flange Nut M6

233061414

3

$1.34

In stock

19

Spring

417005700

3

$4.65

In stock

20

O-Ring

732401030

6
Out of stock

21

Slider Shoe This part replaces 420460045.

417223021

6
Out of stock

22

Clutch Repair Kit

417006100

1

$175.35

In stock

23

Loctite 609, 10 ml

413703100

1

$24.58

In stock

24

Pin

417004309

3

$24.58

In stock

25

Cotter Pin

250400060

3
Out of stock

26

1

$14.75

In stock

27

Ramp 291X | Formula DLX 500 F.

417005291X

—
Out of stock

28

Drive Belt

415060600

1

$154.58

In stock

29

1

$2.65

In stock

30

—

$10.17

In stock

31

Roller

417222947

3
Out of stock

32

Stopper Washer

417004302

6
Out of stock

33

Puller Inner Half

529007900

1

$58.99

In stock
