2000 Ski-Doo MX Z 440 Rewind Starter Diagram

← All diagrams

Find the part on the Rewind Starter diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

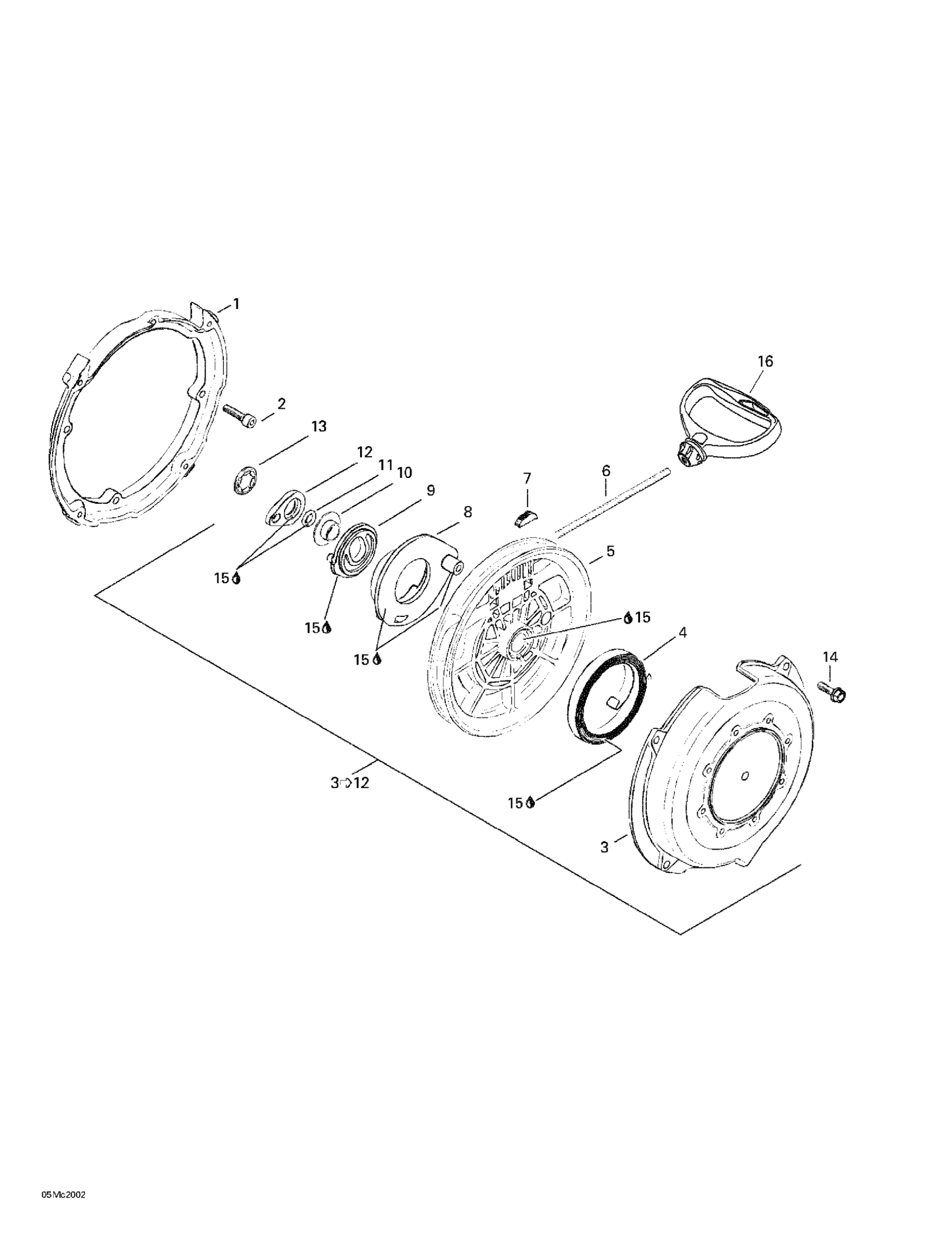

2000 Ski-Doo MX Z 440 Rewind Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Flange Connector

420810955

1

$105.35

In stock

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

4
Out of stock

3

Rewind Starter Assy | Includes 3 - 12.

420888212

—
Out of stock

3

Starter Housing

420811340

—
Out of stock

4

Rewind Spring

420939115

1
Out of stock

5

Rope Sheave

420852480

1

$65.99

In stock

6

Was 412500100 Rope-Starter

219704403

1
Out of stock

7

Key Clamp

420852070

1

$3.50

In stock

8

Pawl

420852296

1

$19.20

In stock

9

PAWL LOCK - Call your local BRP dealership

420852302

—
Out of stock

10

Stage Sleeve

420847926

1

$14.54

In stock

11

O-Ring

420250400

1

$5.22

In stock

12

Lock Ring

420852520

1

$8.34

In stock

13

Locking Element

420845560

1

$2.03

In stock

14

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

4
Out of stock

15

1

$37.66

In stock

16

Starter Grip

572084400

1

$14.54

In stock
