2000 Ski-Doo MX Z 440 Cooling System And Fan Diagram

← All diagrams

Find the part on the Cooling System And Fan diagram for your 2000 Ski-Doo MX Z 440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

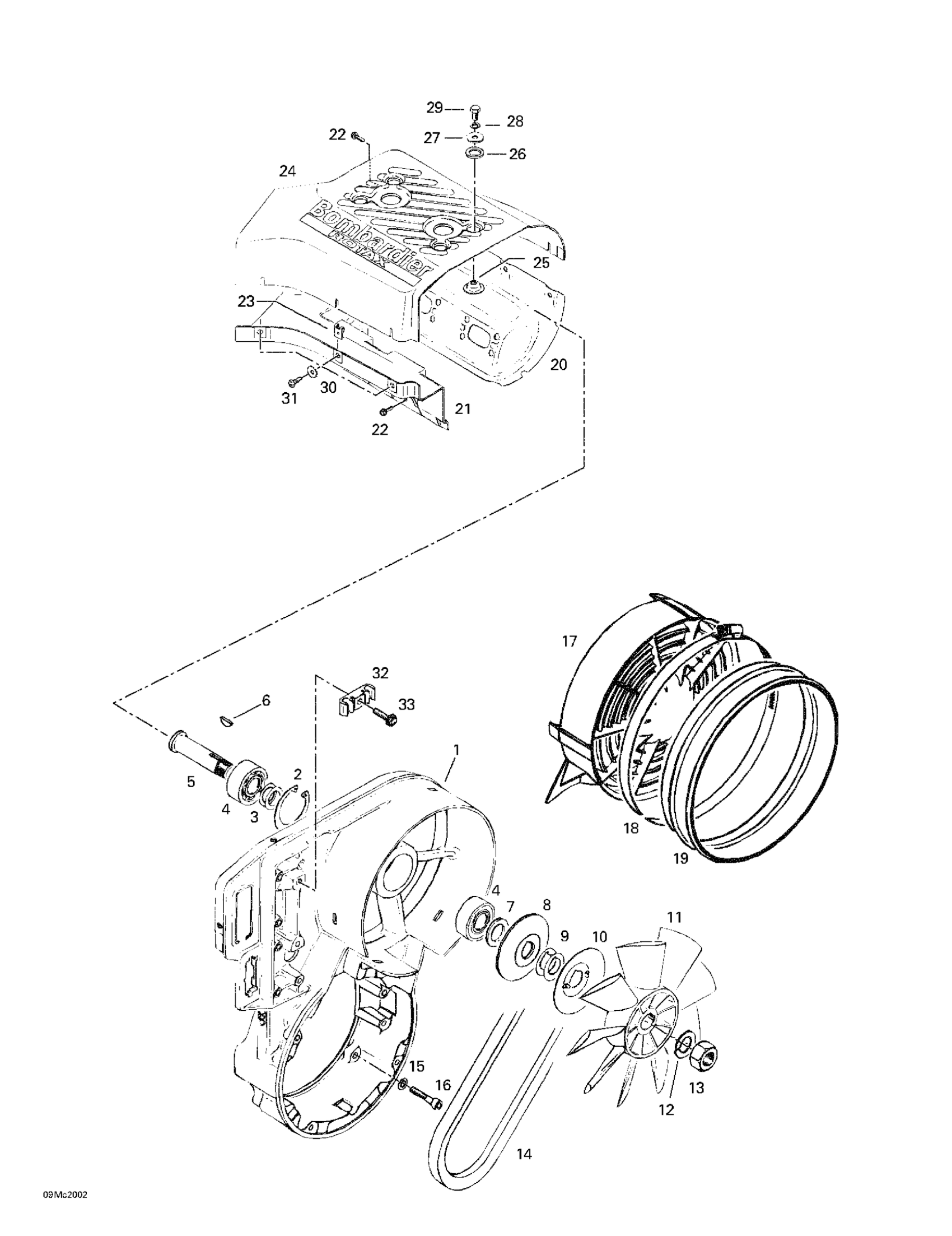

2000 Ski-Doo MX Z 440 Cooling System And Fan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Fan Housing | Formula SL.

420912204

—
Out of stock

2

Lock Ring

420945880

1
Out of stock

3

Shim

420244585

2
Out of stock

4

Ball Bearing

420832161

2
Out of stock

5

Fan Axle This part replaces 420937940.

420937941

1
Out of stock

6

Woodruff Key

420246015

1
Out of stock

7

Spacer Bushing

420827650

1
Out of stock

8

Flange

420980496

1
Out of stock

9

Shim 0.5 mm

420827080

1
Out of stock

Shim 0.2 mm

420827082

1
Out of stock

10

Protection Washer

420980523

1
Out of stock

11

FAN - Call your local BRP dealership

420866292

1
Out of stock

12

Lock Washer

420945756

1
Out of stock

13

Nut M16 This part replaces 420942285.

420942289

1
Out of stock

14

V-Belt

414630800

1
Out of stock

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

—
Out of stock

16

Socket Head Screw M6 X 30

205063044

4
Out of stock

17

FAN COVER - Call your local BRP dealership

420975695

—
Out of stock

18

Rubber Adaptor | MX Z 440 F.

570068200

—
Out of stock

19

Tridon Gear Clamp | MX Z 440 F.

408803700

—
Out of stock

20

CYLINDER COWL - Call your local BRP dealership | 380 F.

420810764

—
Out of stock

21

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810792

—
Out of stock

22

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

—
Out of stock

23

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

—
Out of stock

24

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810776

—
Out of stock

25

Cup Washer

420827817

4
Out of stock

26

Rubber Washer

420960865

4
Out of stock

27

Washer This part replaces 420227935.

420227936

4
Out of stock

28

Washer-Lock Din.128

420945832

4
Out of stock

29

Hex. Screw M8 x 16

207181644

4
Out of stock

30

FLAT WASHER - Call your local BRP dealership

420926180

—
Out of stock

31

Tapping Screw M4.8 X 16

417300006

8
Out of stock

32

CLAMP - Call your local BRP dealership

420860940

—
Out of stock

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

1
Out of stock
