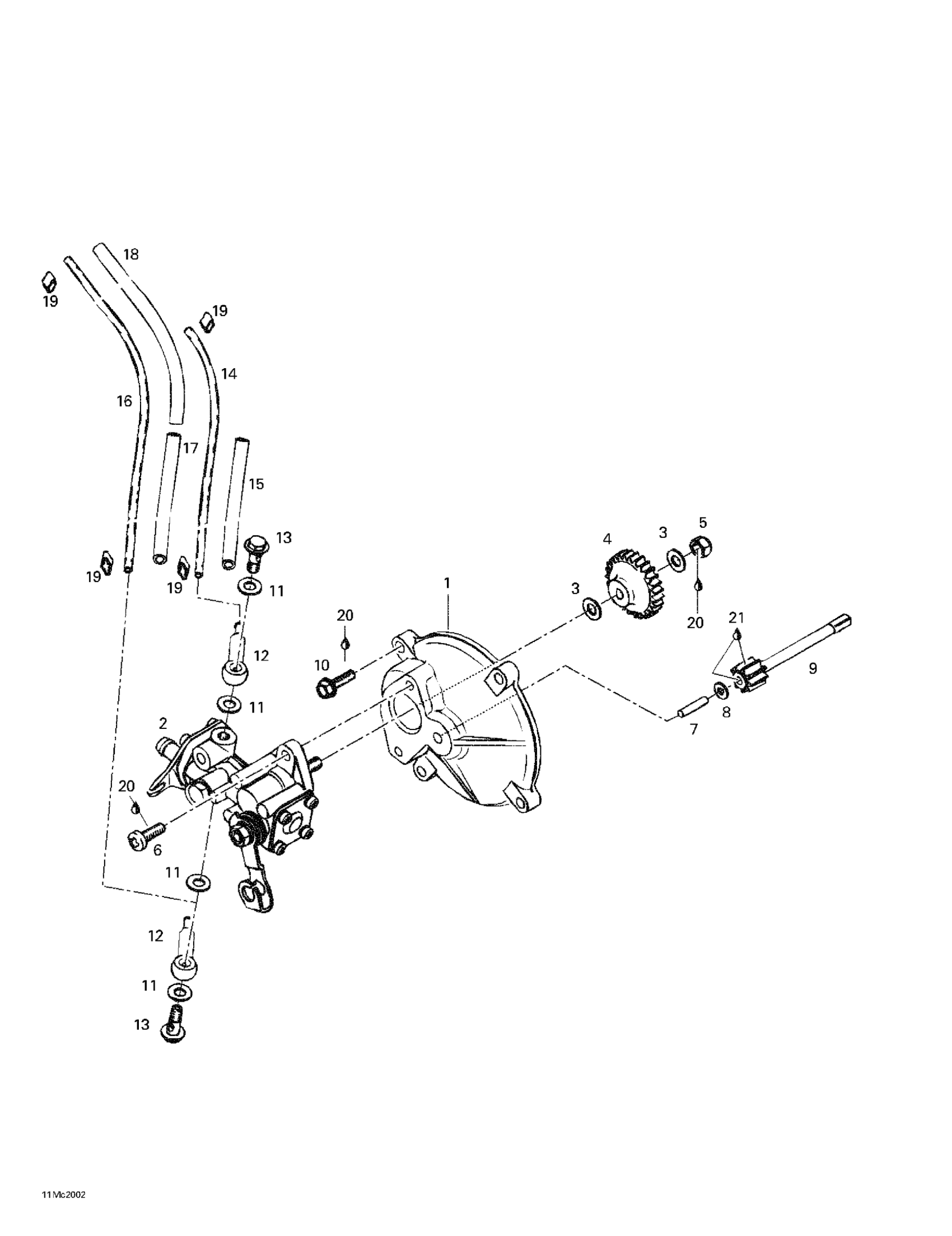

Ski-Doo MX Z 440, 2000 02- Oil Injection System Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

Oil Pump Ass'y

420887993

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

Screw

420841971

$2.96

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$1.01

9

Gear, 9 Teeth

420935970

$15.89

10

Screw

420841971

$2.96

11

Sealing Washer

404146600

$2.97

12

Valve Ass’Y

420956010

$17.53

13

Banjo Bolt M6 X 16

404146800

Unavailable

14

Oil Hose 1500Mm Long

219704404

$17.26

15

Isolation Line 90 mm | 380 F.

420960750

Unavailable

16

Oil Hose 1500Mm Long

219704404

$17.26

17

Isolation Line

420960728

$4.44

18

Hose 6 Mm 15000Mm Long

219704360

$132.49

19

Clamp

420853840

$4.44

20

Loctite 243, 10 ml

293800060

$21.49

21

Dow Corning 111, 150 g

413707000

$59.99
