Description

Price

1

WASHER - Call your local BRP dealership

503183500

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

Pilot Lamp (Red)

410109500

Unavailable

4

Pilot Lamp (Blue)

410109600

Unavailable

5

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Projector Nut

572078600

Unavailable

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Clip

414227300

$1.67

16

Brake Switch

515175653

$19.49

17

Spring

517168600

$7.39

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

20

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Drive Angle | Formula S.

572022300

Unavailable

23

Open Clamp

414176000

$1.99

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Switch (Heating Grip) | FREERIDE

410107300

$35.99

26

Switch Cover

515175281

$15.99

27

Case Holder

414806500

Unavailable

28

Headlamp Support

517218500

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

31

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

32

Flat Washer

517225900

$0.18

33

Speedometer Cable

414761400

Unavailable

34

Lock Washer

414806700

Unavailable

35

Nut

414806900

Unavailable

36

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

37

Adjuster Screw Ass'y | Includes 44 - 46.

415100700

Unavailable

38

Handle

572106600

$10.33

39

Screw M4 x 40

732603004

Unavailable

40

O-Ring

414807100

Unavailable

41

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

42

Tachometer

415096500

Unavailable

43

Washer

517258500

Unavailable

44

Headlamp | Includes 42 to 45

410609100

Unavailable

45

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

46

Headlamp | Includes 53 to 56

410609300

Unavailable

47

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

48

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

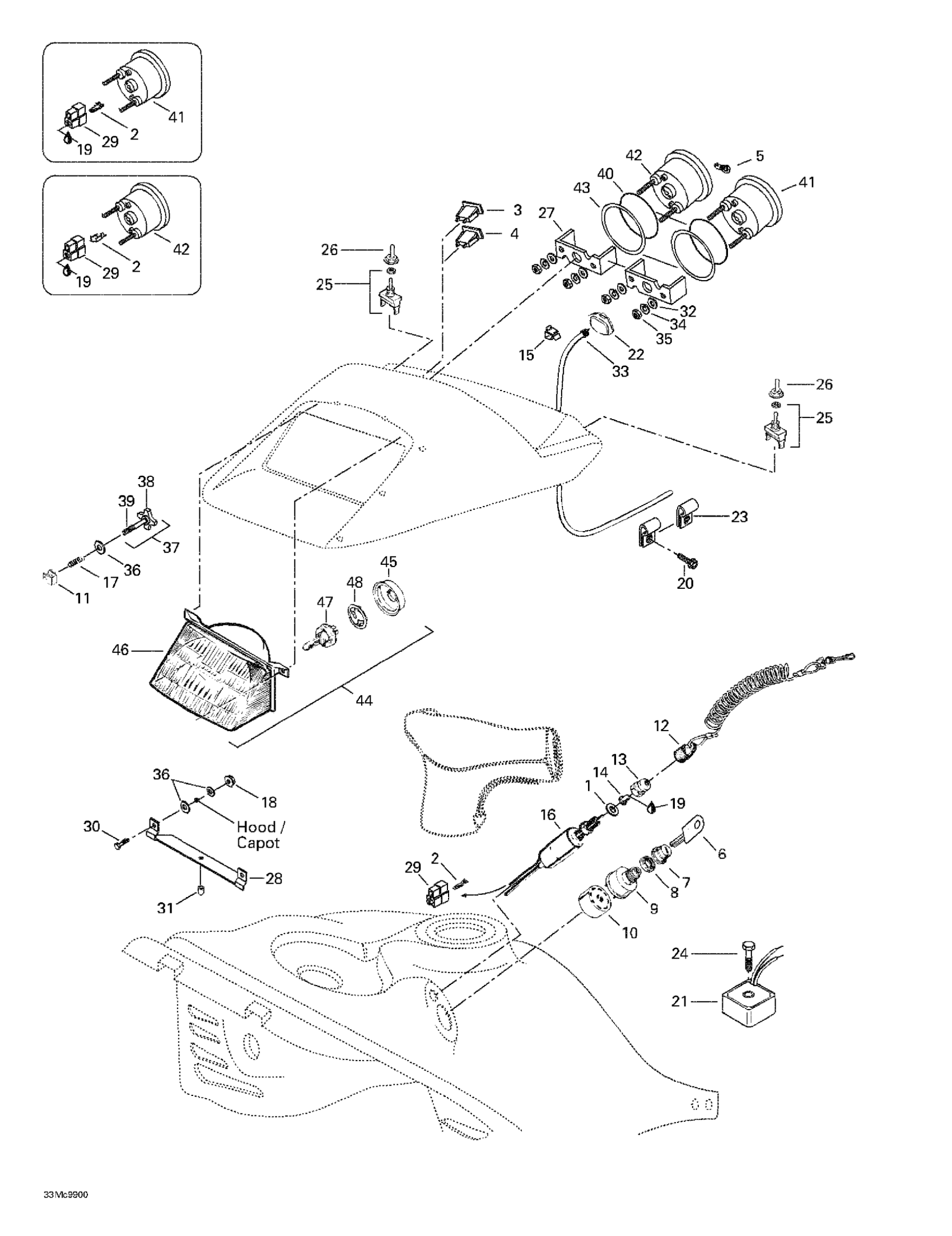

Ski-Doo MX Z 440, 1999 10- Electrical System Diagram
