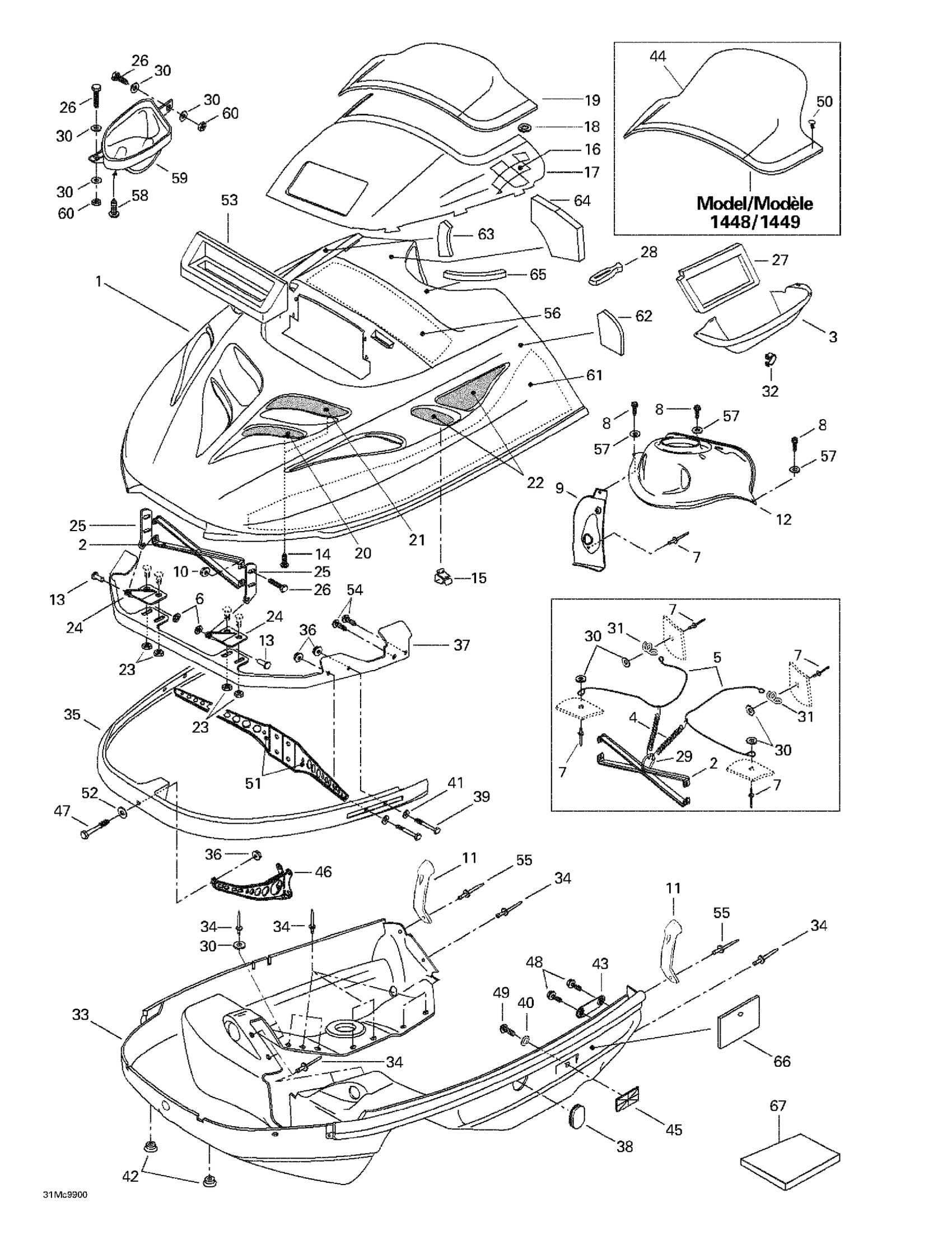

Ski-Doo MX Z 440, 1999 09- Cab, Console Diagram

#

Description
Price

1

Cab (Yellow) | MX Z 380 F.

517302201

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Air Deflector

572083800

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch | Formula S.

517302160

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

$0.88

16

Checker Decal Kit

415127524

Unavailable

17

Windshield Support

572101800

Unavailable

18

Push Nut

732610072

$2.19

19

WINDSHIELD LOW - Call your local BRP dealership

414795900

Unavailable

20

LH Front Grill

517265903

Unavailable

21

LH Upper Grill

517277102

Unavailable

22

Side Grill (Black)

517280200

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Seal

415036500

Unavailable

28

Windshield Latch

570023800

$4.49

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

Clip

414479100

$1.90

33

Bottom Pan (Yellow)

572076211

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Medium Windshield

415050500

Unavailable

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Dart

414939500

$1.04

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

$1.37

53

Sealing Foam

415077300

Unavailable

54

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

55

Pop Rivet 3/16"

390906800

$0.93

56

Center Foam

414985100

Unavailable

57

Washer | DS 650 X

391301600

$0.48

58

Tapping Screw

732601292

Unavailable

59

Inlet Duct

572097800

Unavailable

60

Elastic Stop Nut M5

232551414

$0.87

61

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

62

LH Rear Foam

414883700

Unavailable

63

R.H Rear Foam

414883800

Unavailable

64

Upper Foam

414975000

Unavailable

65

Foam

415050900

Unavailable

66

Foam

415028100

Unavailable

67

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable
