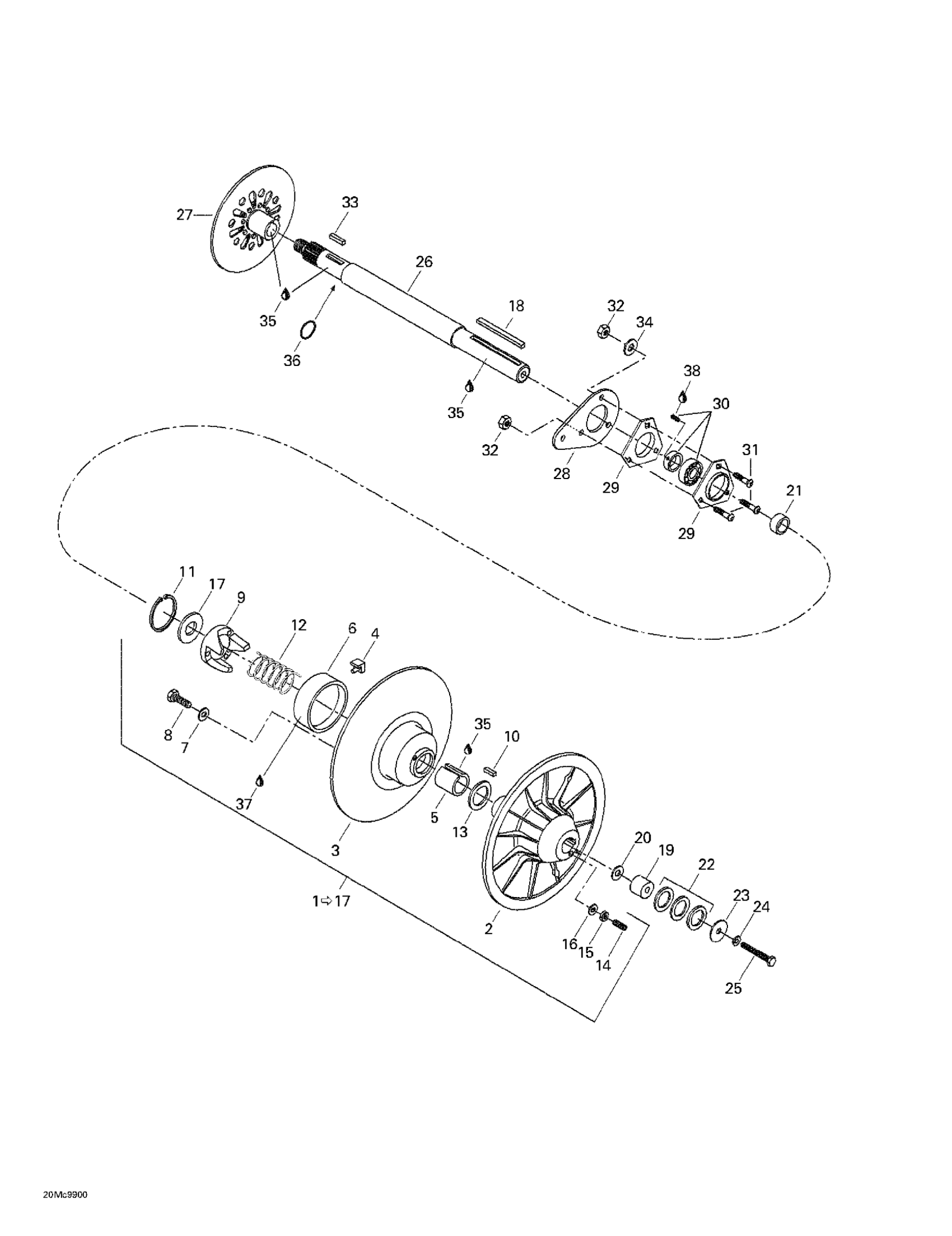

Ski-Doo MX Z 440, 1999 05- Driven Pulley Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Flange
504141600
Unavailable
3
Sliding Flange Ass'y | Includes 24 - 31. Formula III 800.
504143200
Unavailable
4
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
5
BUSHING - Call your local BRP dealership
415011200
Unavailable
6
Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).
860423000
Unavailable
7
Flat Washer
399910000
Unavailable
8
SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership
732600022
Unavailable
9
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
10
Key
414820800
Unavailable
11
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
12
RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.
414505800
Unavailable
13
Thrust Washer
504141900
Unavailable
14
Allen Screw M6 x 30
223563065
Unavailable
16
WASHER - Call your local BRP dealership
420245370
Unavailable
17
Washer
504141800
Unavailable
18
Key
414581300
Unavailable
19
Countershaft Extension | Formula S.
504260700
Unavailable
20
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
21
Shim | Formula S.
504094000
Unavailable
22
SHIM - Call your local BRP dealership
504108200
Unavailable
23
WASHER - Call your local BRP dealership
517078700
Unavailable
25
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086044
Unavailable
26
Countershaft
504149300
Unavailable
27
Brake Disk
507032203
Unavailable
28
Spacer
501022300
Unavailable
29
FLANGE - Call your local BRP dealership
501025000
Unavailable
30
BALL BEARING WITH COLLAR - Call your local BRP dealership
405408300
Unavailable
31
Allen Screw M8 x 25
732601156
Unavailable
33
KEY - Call your local BRP dealership
507021300
Unavailable
35
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
