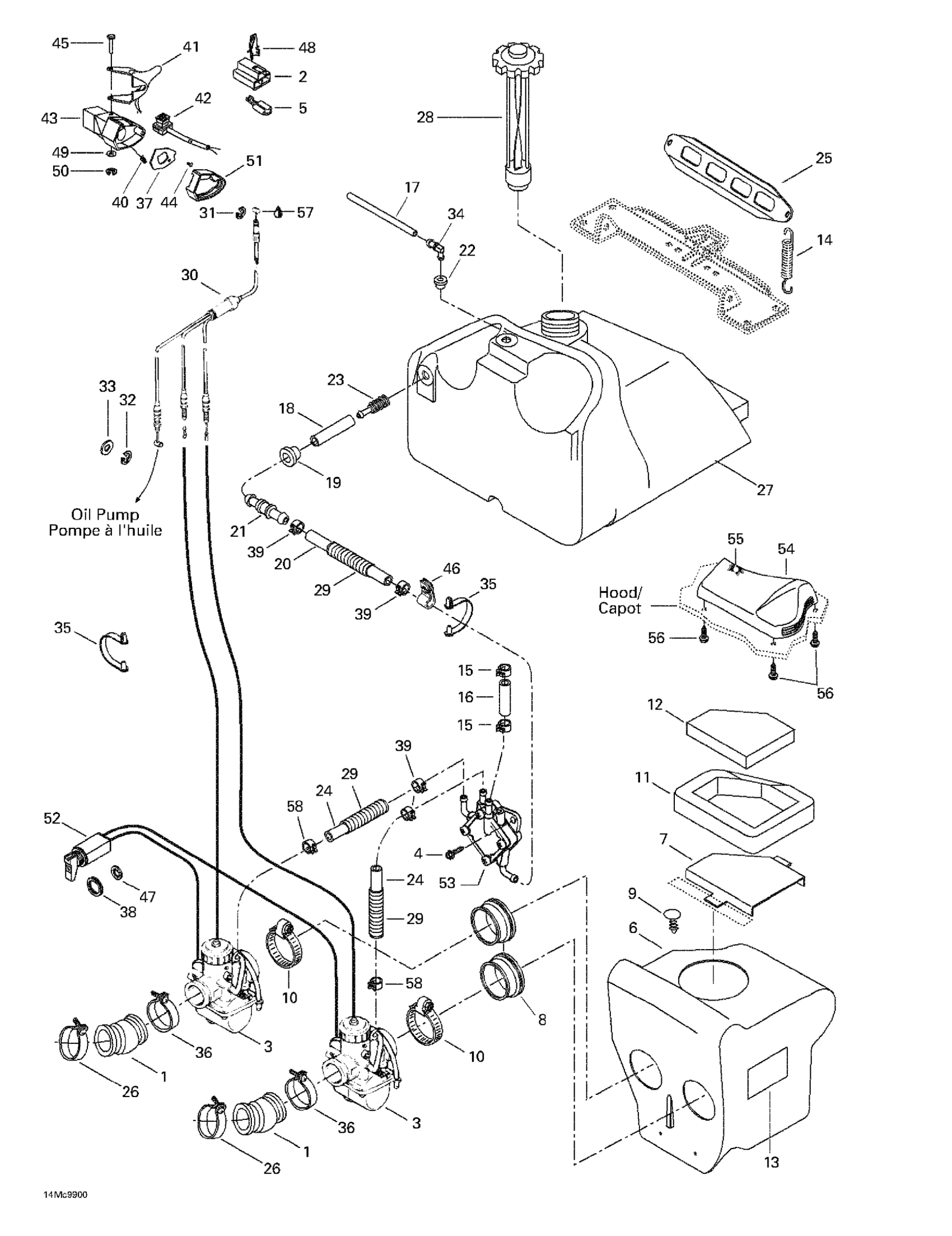

Ski-Doo MX Z 440, 1999 02- Fuel System Diagram

#

Description
Price

1

CARBURATOR ADAPTOR - Call your local BRP dealership

570066800

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 34-530 (PTO) | Includes 1 - 36.

403138543

Unavailable

Carburetor VM 34-531 (MAG)

403138544

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.67

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

Air Intake Ass'y | Includes 1 - 8.

508000014

Unavailable

7

Intake Grill

517285900

Unavailable

8

Adaptor 34 mm

570043600

Unavailable

9

Black, Dart

414644300

$0.98

10

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

11

Lower Foam

415106000

Unavailable

12

Air Filter

415037600

Unavailable

13

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.88

16

Hose

219704549

$50.99

17

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Grommet

570045500

$6.69

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Male Connector

414518500

$4.23

22

Grommet

709200285

$9.69

23

Fuel Filter

414865700

$10.99

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Fuel Tank Bracket

517249200

Unavailable

26

COLLAR - Call your local BRP dealership

414532700

Unavailable

27

Fuel Tank

572093100

Unavailable

28

Fuel Tank Cap

415074400

Unavailable

29

Tubing 10 MM 1000MM Long

219704407

$2.79

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.90

32

Circlip

414753500

$0.71

33

Flat Washer 8 mm, Nylon

234081100

$1.39

34

Male Connector

414814100

$2.22

35

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

36

Gear Clamp (47 mm)

408803800

Unavailable

37

Plate

512060390

$10.33

38

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

39

Spring Clamp

414554800

$0.88

40

Socket Set Screw M8 X 10

414440800

$4.12

41

Handle Ass'y

512060214

$124.99

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

43

Throttle Housing

512060603

$12.49

44

Screw

414473200

Unavailable

45

Lever Pin

414438700

$11.64

46

CLIP - Call your local BRP dealership

415018200

Unavailable

47

Lock Washer, Interior Teeth

394103300

Unavailable

48

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

49

Flat Washer M5, Stainless

234051600

$0.77

50

Circlip | Model-RS

414439000

$4.23

51

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

52

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

53

Fuel Pump

403801000

Unavailable

54

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

55

Air Filter

414972600

$63.99

56

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

57

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

58

Spring Clamp

414420700

$0.72
