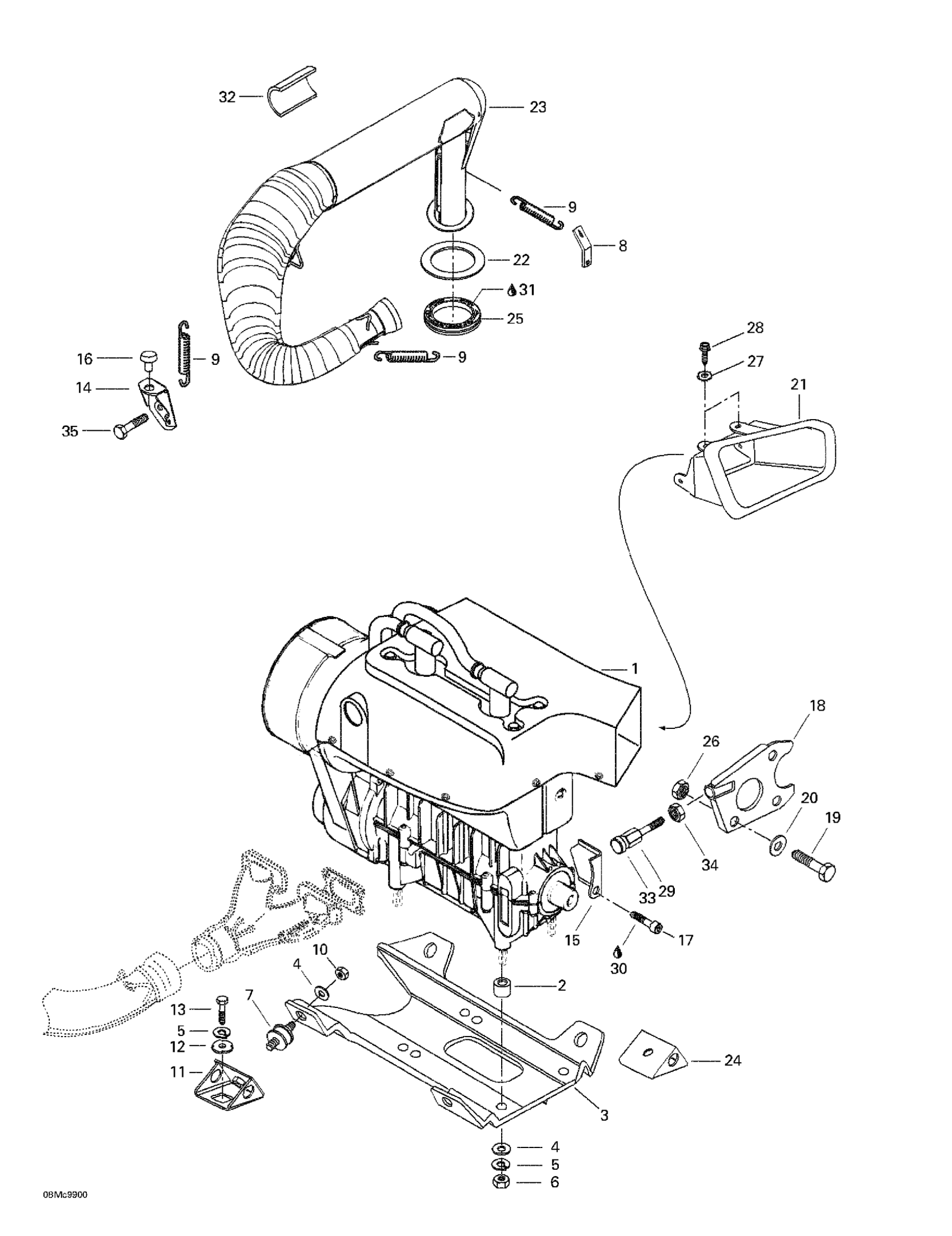

Ski-Doo MX Z 440, 1999 01- Engine Support And Muffler Diagram

<<443>> Engine

400409403

Unavailable

Spacer

512057700

Unavailable

Engine Support

512054500

Unavailable

Flat Washer 10 mm

234001410

$1.26

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.37

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

Spring Bracket

514054522

$8.45

Spring

415107100

$6.35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Support (Exhaust Side)

512057600

Unavailable

Lock Washer

512056700

$3.17

Hex. Screw M10 X 25

207102544

$1.37

Muffler Support

514044100

Unavailable

Stopper Plate

512058911

Unavailable

Rubber Bumper

514053654

$50.99

Hex. Screw M8 X 20

236282084

$1.48

Support Plate

517271800

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Flat Washer 8 mm

234081410

$0.83

OUTLET DUCT - Call your local BRP dealership

572083700

Unavailable

Aluminum Washer

514049300

Unavailable

Muffler-Pipe | MX Z 440 F.

514046400

Unavailable

Engine Support

512050900

Unavailable

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Screw

517244200

Unavailable

Loctite 271, 10 ml

293800005

$26.99

Grease, Super Lube

293550030

$28.99

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

Rod retainer

570025100

Unavailable

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable
