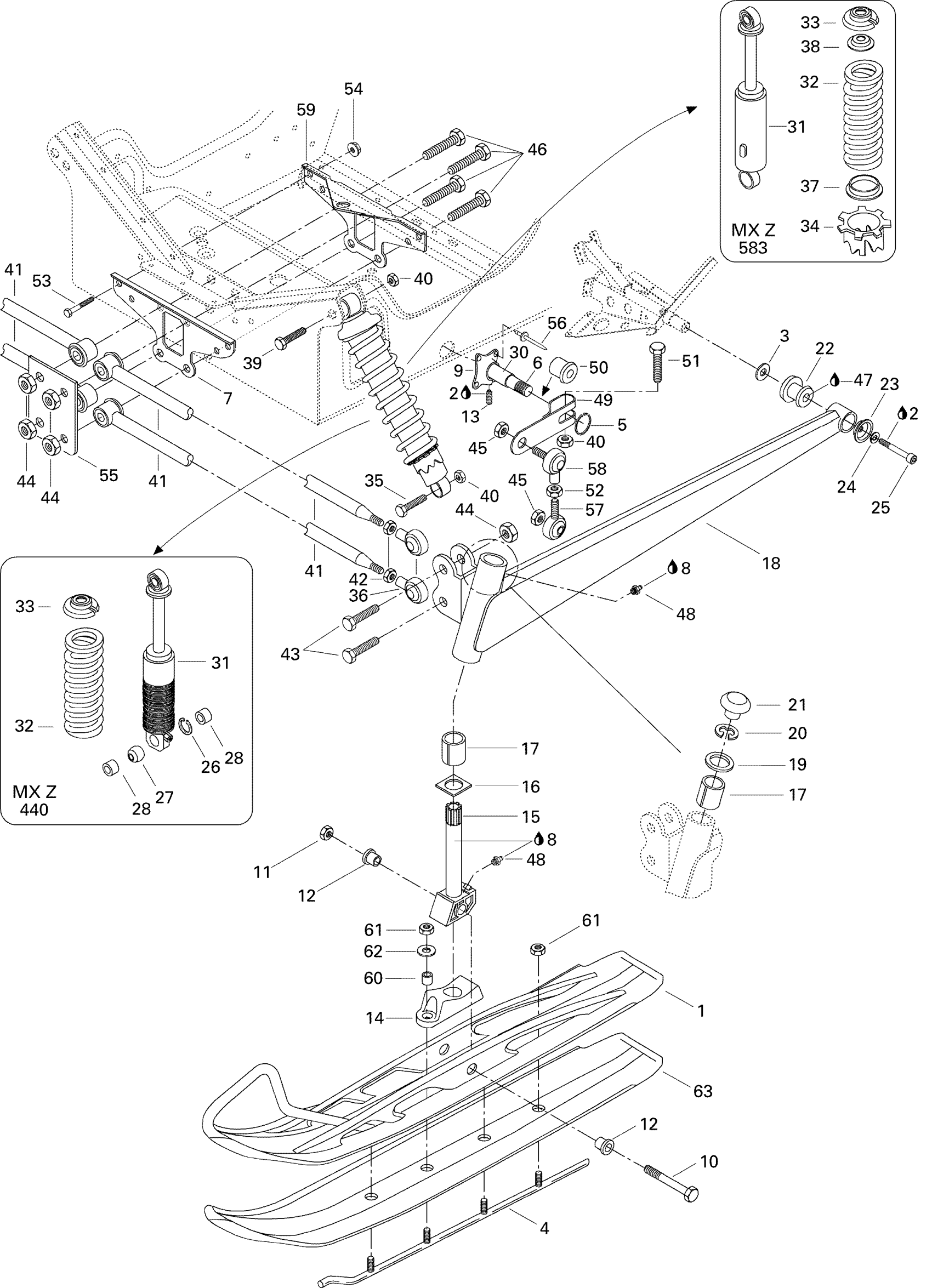

Ski-Doo MX Z 440, 1996 07- Front Suspension And Ski 440 Diagram

#

Description
Price

1

Ski (Narrow)

505066610

Unavailable

2

Loctite 243, 10 ml

293800060

$21.49

3

WASHER - Call your local BRP dealership

503146700

Unavailable

4

Runner (6 Carbide)

505066720

Unavailable

5

Circlip

371901600

Unavailable

6

Stabilizator Bar

506131900

Unavailable

6

Stabilisator Bar

506132700

Unavailable

6

Stabilisator Bar

506132800

Unavailable

7

Front Link Plate

517254800

Unavailable

8

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

9

Housing

506122800

Unavailable

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

Socket Set Screw M8 X 10

414440800

$4.12

14

Ski Stopper

570053500

Unavailable

15

Ski Leg

506130900

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm (Yellow)

506126310

Unavailable

18

RH Swing Arm (Yellow)

506126210

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

CAP - Call your local BRP dealership

572079100

Unavailable

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

CUP - Call your local BRP dealership

506079600

Unavailable

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Circlip

371905000

Unavailable

27

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

28

BUSHING - Call your local BRP dealership

506120200

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

30

Tube

506118600

Unavailable

31

Front Shock | MX Z 440 LC.

414956600

Unavailable

32

Shock Spring (Yellow) | Mach 1. Mach Z.

414956300

Unavailable

33

Spring Stopper

706200881

$12.99

34

Not Available As Spare Parts

XXX

Unavailable

35

Hex. Screw M10 x 60

222006000

Unavailable

36

RH BJoint

414976400

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Hex. Screw M10 X 55

207005544

$2.22

40

Elastic Locking Nut M10 X 1.5

233601416

$1.69

41

Arm Ass’y

580638900

Unavailable

42

Hex. Jam Nut M14

232170411

$1.48

43

Hex. Screw M12 x 50

222025075

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Elastic Flange Nut M10

232501416

$1.48

46

Hex. Screw M12 x 100

732601113

Unavailable

47

Grease, Super Lube

293550030

$28.99

48

Grease Fitting

408200700

$3.49

49

Lever-Stabilizer

506132000

Unavailable

50

Cushion

414878500

Unavailable

51

Hex. Screw M10 X 45

207004544

$1.69

52

RH Threaded Hex. Jam Nut M10

732610010

$0.74

53

Hex. Screw M6 X 55

207065544

$2.11

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

Support

518306700

Unavailable

56

Avex Rivet

390909100

$0.30

57

BJoint RH

414942100

Unavailable

58

BJoint

414778400

Unavailable

59

Rear Link Plate

517254900

Unavailable

60

BUSHING - Call your local BRP dealership

506117300

Unavailable

61

Hex. Elastic Stop Nut M8

232581414

$0.56

62

Flat Washer 8 mm

234082410

$1.47

63

5" Plastic Ski Sole | MX Z 440 LC.

486071600

Unavailable
