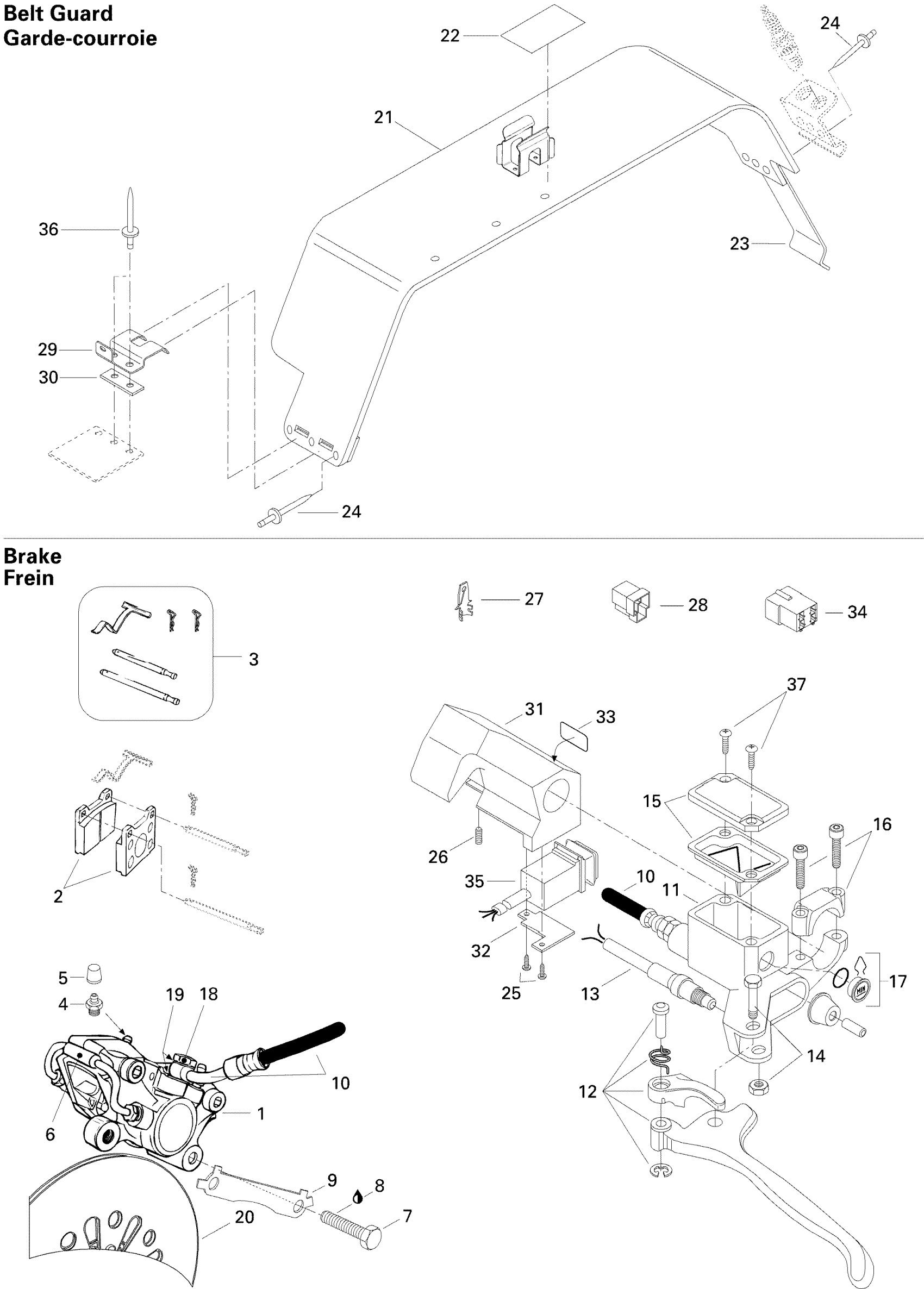

Ski-Doo MX Z 440, 1996 06- Brake Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.58

8

Loctite 243, 10 ml

293800060

$21.49

9

Locking Tab

507029900

Unavailable

10

Hose

414972700

Unavailable

11

Master Cylinder | Formula 500 Deluxe.

415034600

Unavailable

12

Lever Ass'y

415029700

Unavailable

13

Microswitch

507032366

$98.99

14

Pin Ass'y

415030000

$19.99

15

Cap

415029900

$41.49

16

Clamp And Screw Kit

507032477

$23.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Washer

414920600

$1.90

20

Brake Disk Ass’y

507029800

Unavailable

21

Belt Guard Ass’y | Includes 19 to 20

517284100

Unavailable

22

Warning Decal

414108700

Unavailable

23

Tool Box Spring

414941800

Unavailable

24

Pop Rivet 3/16"

390402200

$0.35

25

Screw

414473200

Unavailable

26

Socket Set Screw M8 X 10

414440800

$4.12

27

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

28

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

29

Pulley Guard Bracket

518314200

Unavailable

30

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

31

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

32

Plate | SWT 550

517283800

Unavailable

33

Switch Decal

415025500

Unavailable

34

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

35

Dimmer Switch

515163100

Unavailable

36

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

37

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
