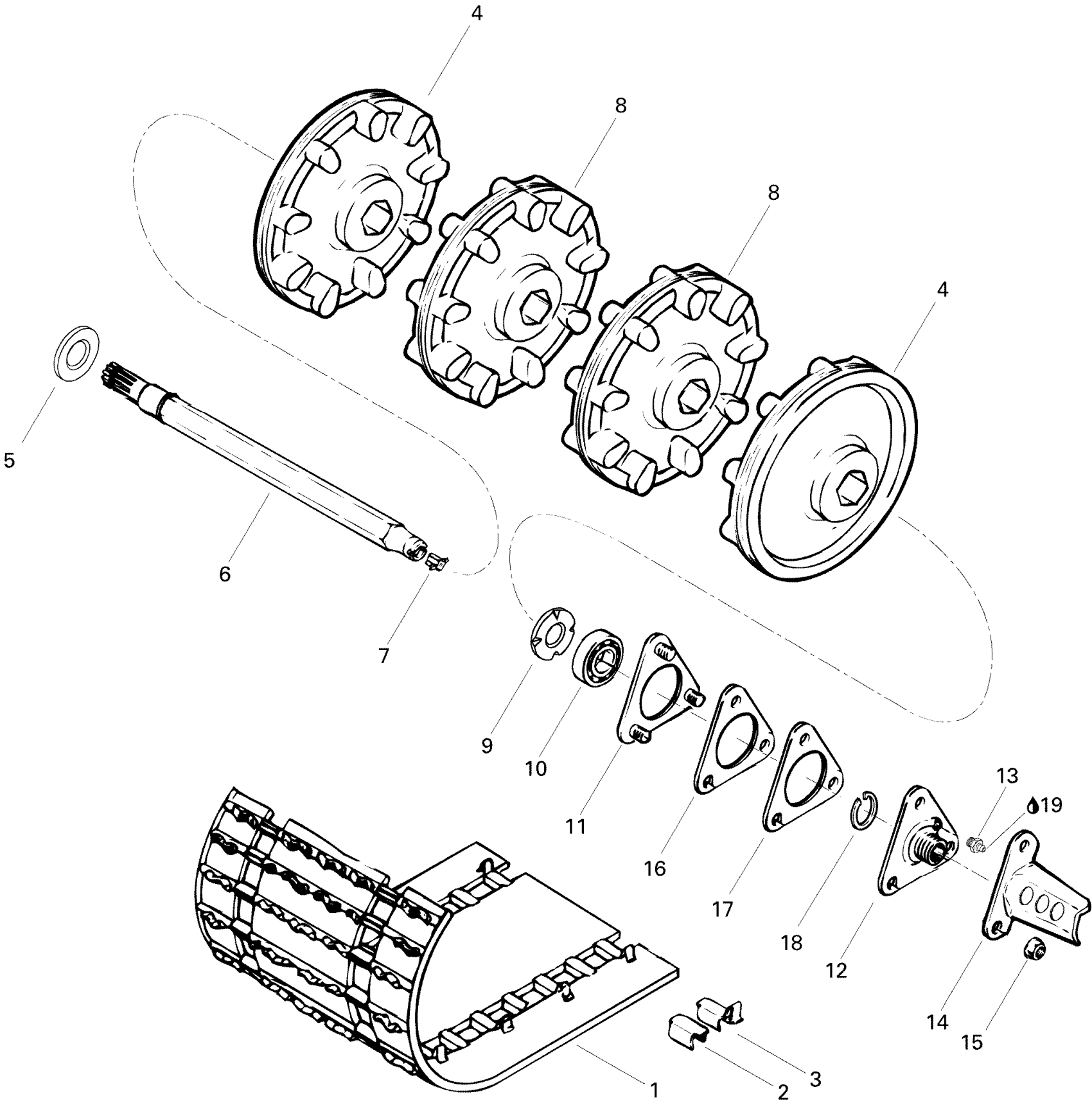

Ski-Doo MX Z 440, 1996 05- Drive System 440 Diagram

#

Description
Price

1

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

2

Cleat

504152651

$9.69

3

Track Guide | Track Width 16''

415129528

$3.29

4

9 Tooth Half Sprocket

414990800

Unavailable

5

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

6

Drive Axle

501025500

Unavailable

6

Drive Axle (Drilled)

501025400

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

9 Tooth Sprocket

414663900

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350115

$12.11

11

Retainer Ring

501024100

Unavailable

12

Ball Bearing Housing | Includes 12 - 13.

501017500

Unavailable

13

Grease Fitting

408200700

$3.49

14

Cable Protector

517243600

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

Spacer

501024200

Unavailable

17

Spacer

501022200

Unavailable

18

CIRCLIP - Call your local BRP dealership

371910200

$2.09

19

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
