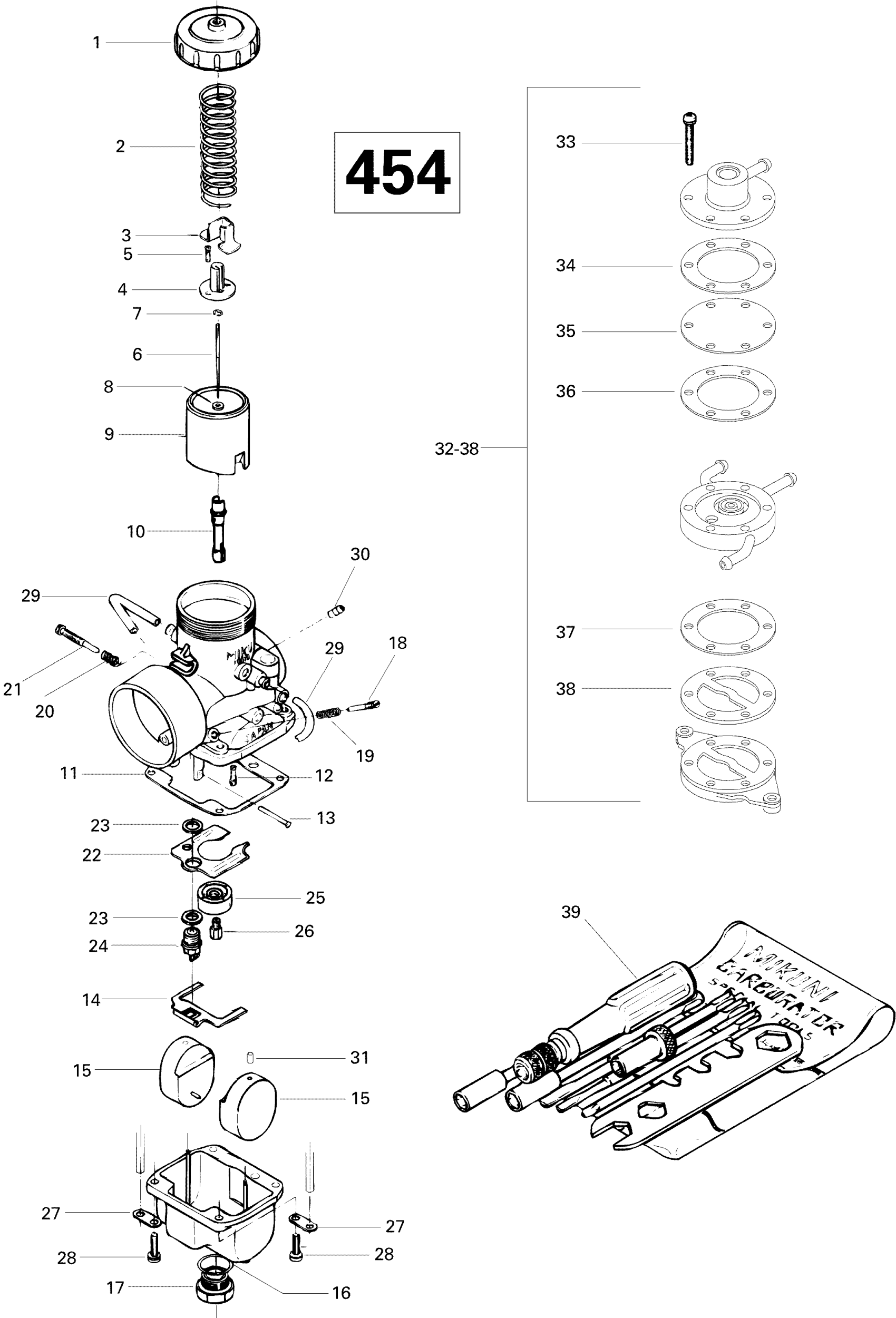

Ski-Doo MX Z 440, 1996 02- Carburetor 440 Diagram

#

Description
Price

1

VM 34-469Carburetor (PTO Side) | Includes 1 to 32

403123800

Unavailable

1

VM 34-470Carburetor (MAG Side) | Includes 1 to 32

403125300

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Jet Needle | .

404157200

Unavailable

7

E-Ring

404152400

$7.27

8

Packing

404117000

$3.29

9

Piston Valve 2.5

404128400

$127.49

10

Needle Jet

404162124

$41.49

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Lever

404107600

$22.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$9.06

17

Drain Plug Screw

404107400

$22.99

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.14

21

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404147400

$42.49

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

MAIN JET, MJ 230 - Call your local BRP dealership | Skandic Super Wide Track.

404118900

Unavailable

26

Main Jet Mj 210

404119100

$5.21

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Hose | Grand Touring SE.

404109800

Unavailable

30

Nipple

404153400

$12.16

31

Cap

404105800

$6.38

32

Fuel Pump

403900900

Unavailable

33

Screw

404900500

Unavailable

34

Packing

404900400

Unavailable

35

Gasket

404902000

Unavailable

36

Diaphragm

404901500

Unavailable

37

Gasket

404901900

Unavailable

38

PACKING - Call your local BRP dealership

404900000

Unavailable

39

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

40

High Altitude Kit, (Not Shown)

861750800

Unavailable
