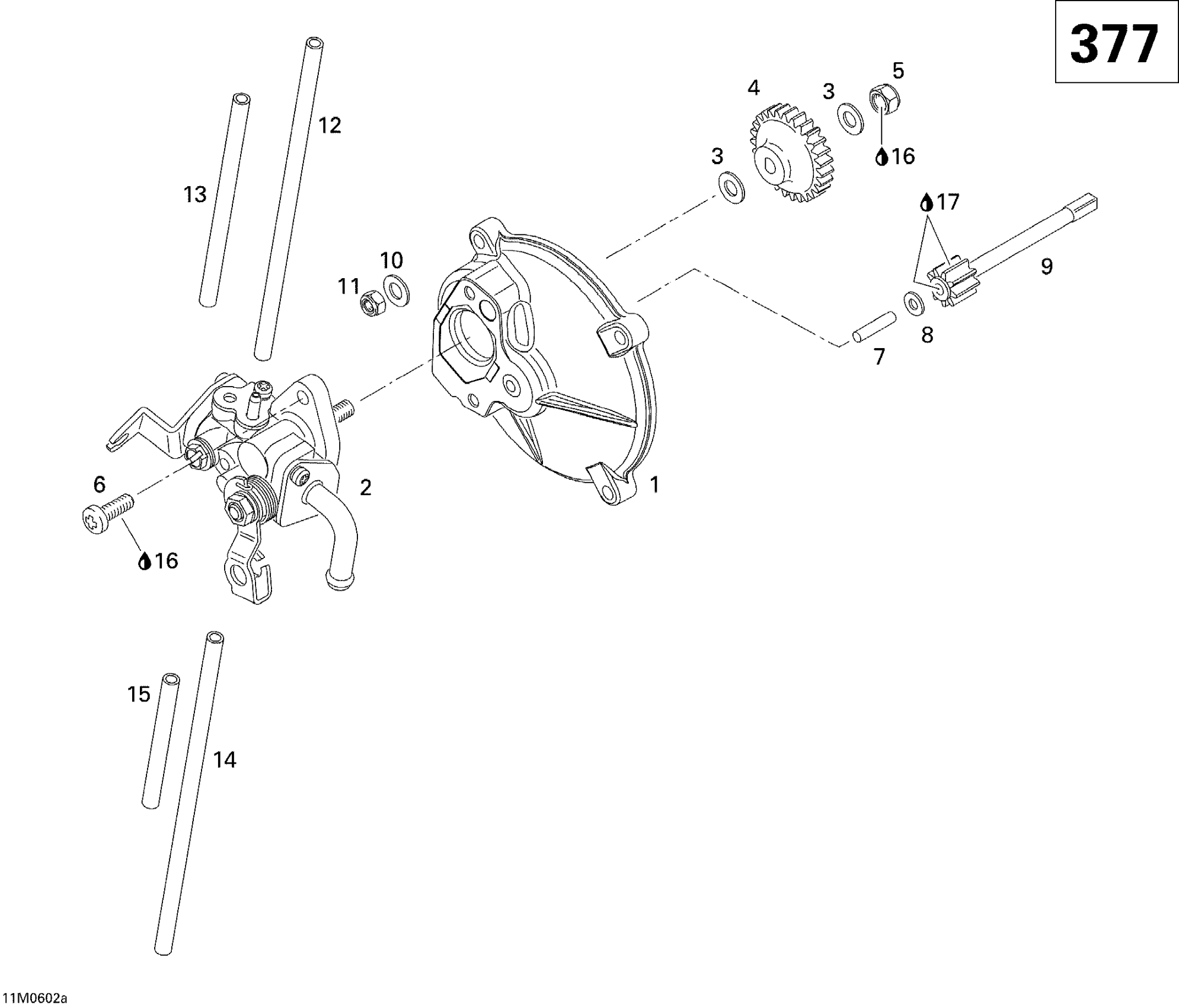

Ski-Doo MX Z 380F, 2006 02- Oil Pump MX Z 377 Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910162

Unavailable

2

OIL PUMP ASS'Y - Call your local BRP dealership

420889800

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

Screw

420841971

$2.96

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$1.01

9

Gear, 9 Teeth

420935970

$15.89

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

NUT M5 - Call your local BRP dealership

420942025

Unavailable

12

Oil Hose 1500Mm Long

219704404

$17.26

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

Oil Hose 1500Mm Long

219704404

$17.26

15

Hose 6 Mm 15000Mm Long

219704360

$132.49

16

Loctite 243, 10 ml

293800060

$21.49

17

Dow Corning 111, 150 g

413707000

$59.99
