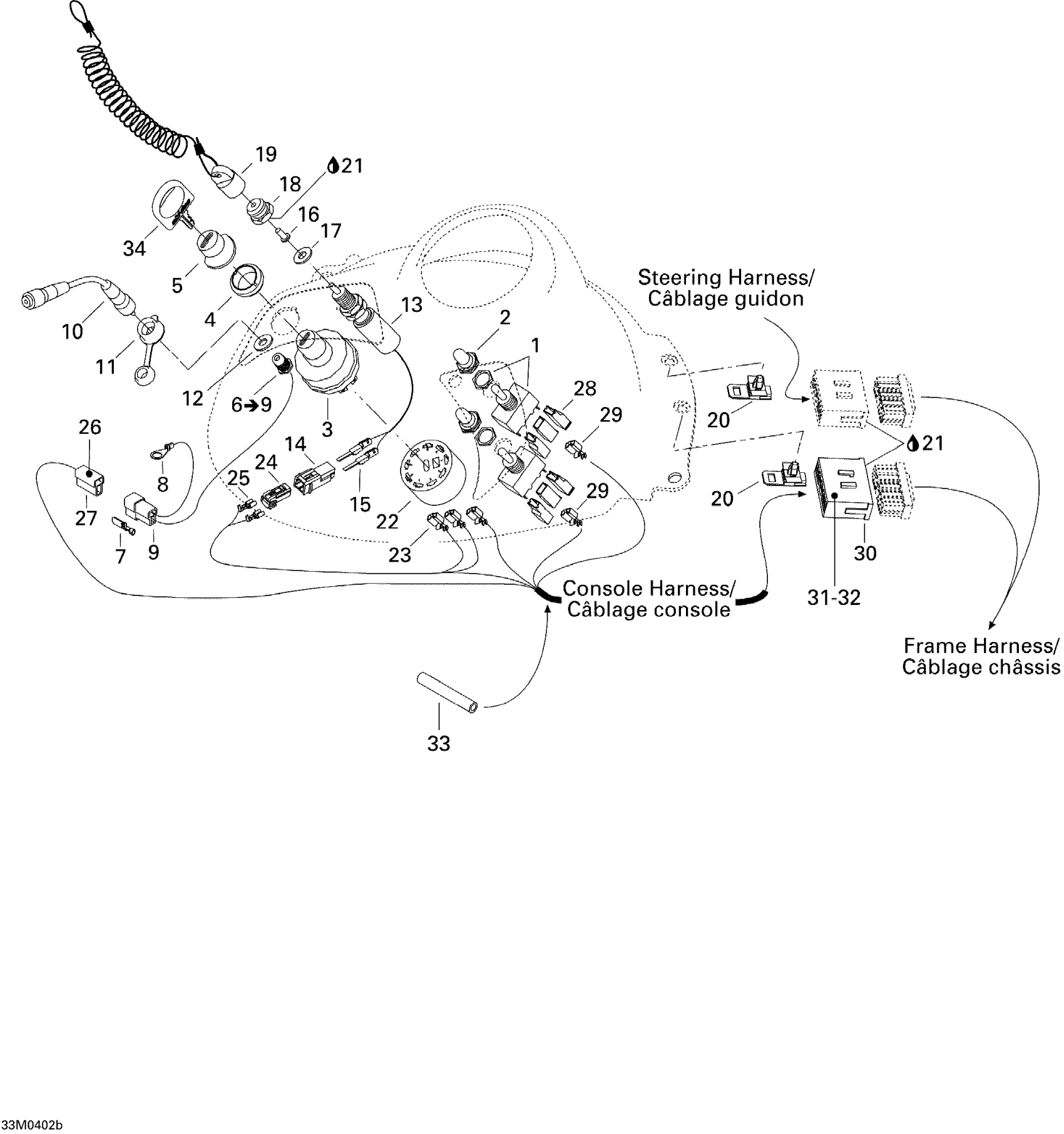

Ski-Doo MX Z 380F, 2004 10- Console Harness (MX Z) Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Switch Cover

515175281

$15.99

3

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

4

FACE NUT - Call your local BRP dealership

410112100

Unavailable

5

Switch Boot

570013700

$11.49

13

Brake Switch

515175653

$19.49

14

Male Terminal Housing, 2 Circuits

515175654

$9.12

15

Male Terminal

515175232

$1.58

16

Plunger Cap

570151100

$9.85

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Switch Nut

515145900

$12.12

19

Cap Ass'y

515178283

$38.99

20

Housing Support

515175283

$9.19

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

23

Female Terminal

561503100

$2.41

24

Female Housing, 2 Circuits

515175658

$16.18

25

Female Terminal

515175231

$4.39

28

Female Terminal Housing, 1 Circuit

409010400

$7.62

29

Female Terminal

409010100

$5.61

30

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

31

Male Terminal

515175232

$1.58

32

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

33

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

34

Blank Key

415129350

$26.49

35

Console Harness, Not Shown

515175623

Unavailable
