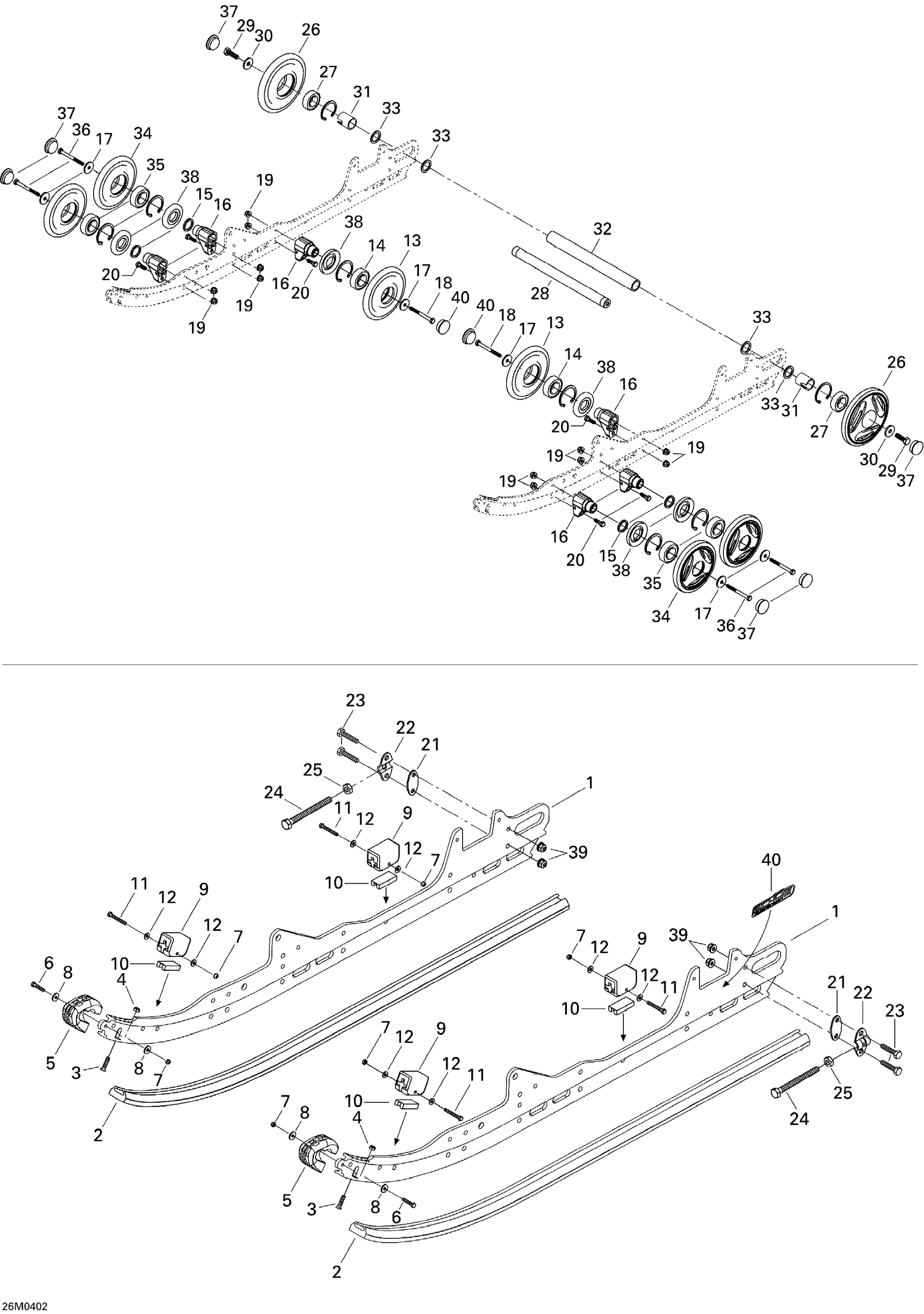

Ski-Doo MX Z 380F, 2004 08- Rear Suspension (MX Z) Diagram

#

Description
Price

1

Runner

503189830

Unavailable

2

Runner Shoe

503189643

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$12.99

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Wheel 135

503191029

$33.99

14

Ball Bearing

293350115

$12.11

15

WASHER - Call your local BRP dealership

503173700

Unavailable

16

SUPPORT - Call your local BRP dealership

503190389

Unavailable

17

Washer

503183100

$3.17

18

Hex. Screw M8 X 80

207088044

$1.68

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Hex. Screw M8 X 25

207182544

$0.90

21

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

22

Tensioner

503155300

Unavailable

23

Hex. Screw M6 X 30

207063044

$1.26

24

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.69

26

Wheel 165 mm Yellow

503190817

$51.99

27

Ball Bearing

293350115

$12.11

28

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

29

Hex. Screw With Nylon

250000019

$1.69

30

Washer

503183300

$5.82

31

Outer Spacer

503189809

$18.89

32

SPACER - Call your local BRP dealership

503188941

Unavailable

33

Washer

503180400

$3.49

34

Wheel 135, Yellow

503190785

$33.99

35

Ball Bearing

293350115

$12.11

36

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

37

Wheel Cap

570063600

$3.49

38

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Suspension Decal

516001248

Unavailable
