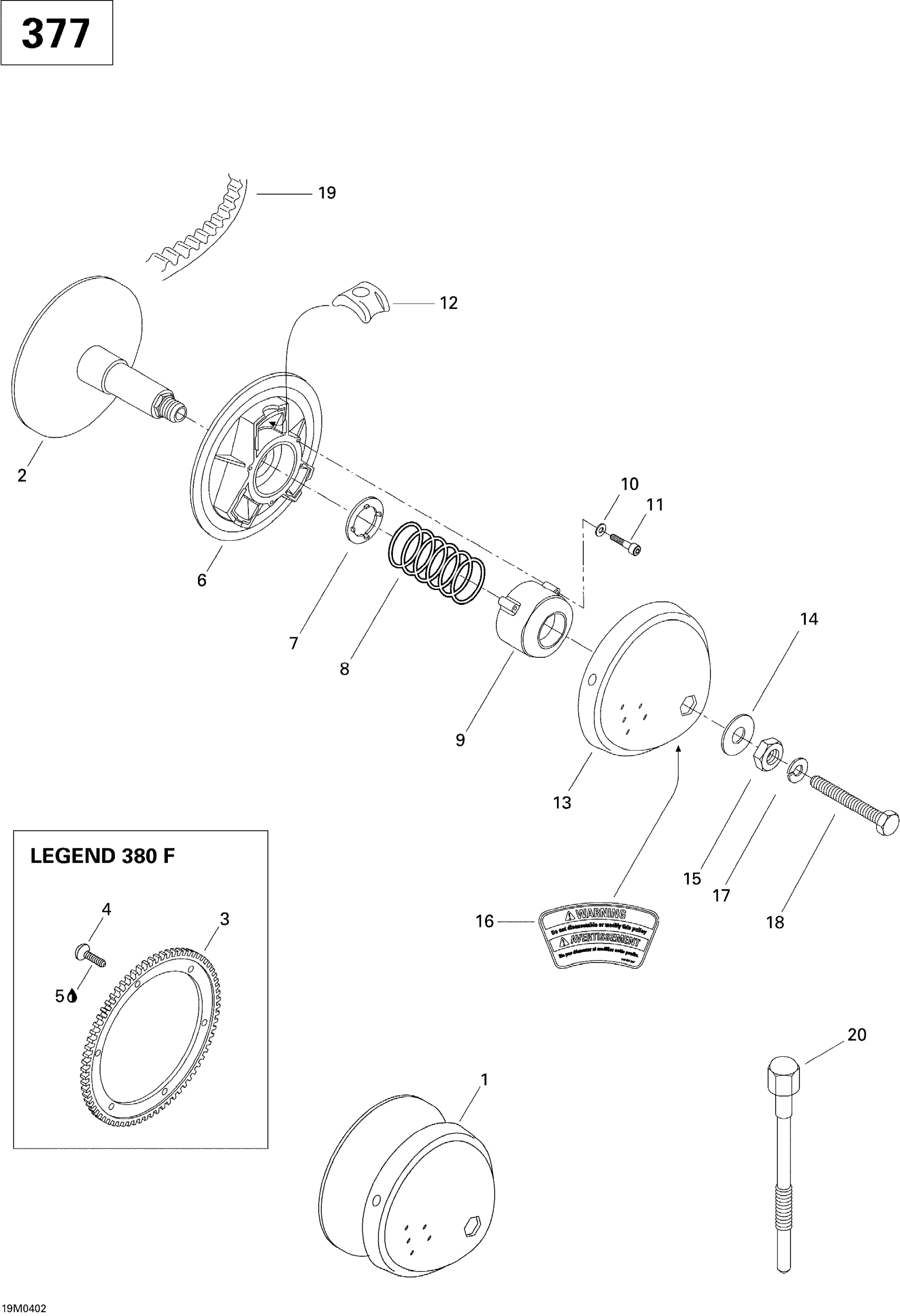

Ski-Doo MX Z 380F, 2004 Drive Pulley (MX Z 380F) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Inner Flange

417126690

Unavailable

6

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

7

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

8

Spring Violet (Blue/Green)

417126621

Unavailable

9

SPRING COVER - Call your local BRP dealership

417126622

Unavailable

10

WASHER - Call your local BRP dealership

420245370

Unavailable

11

Socket Screw M6 X 40

205064086

Unavailable

12

Centrifugal Block

417126623

Unavailable

13

Cap

417126696

Unavailable

14

Washer

417122400

Unavailable

15

NUT - Call your local BRP dealership

417118300

Unavailable

16

Security Label

516001247

Unavailable

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Drive Belt

415060600

$104.99

20

Puller This part replaces 529022400.

529000064

$71.99
