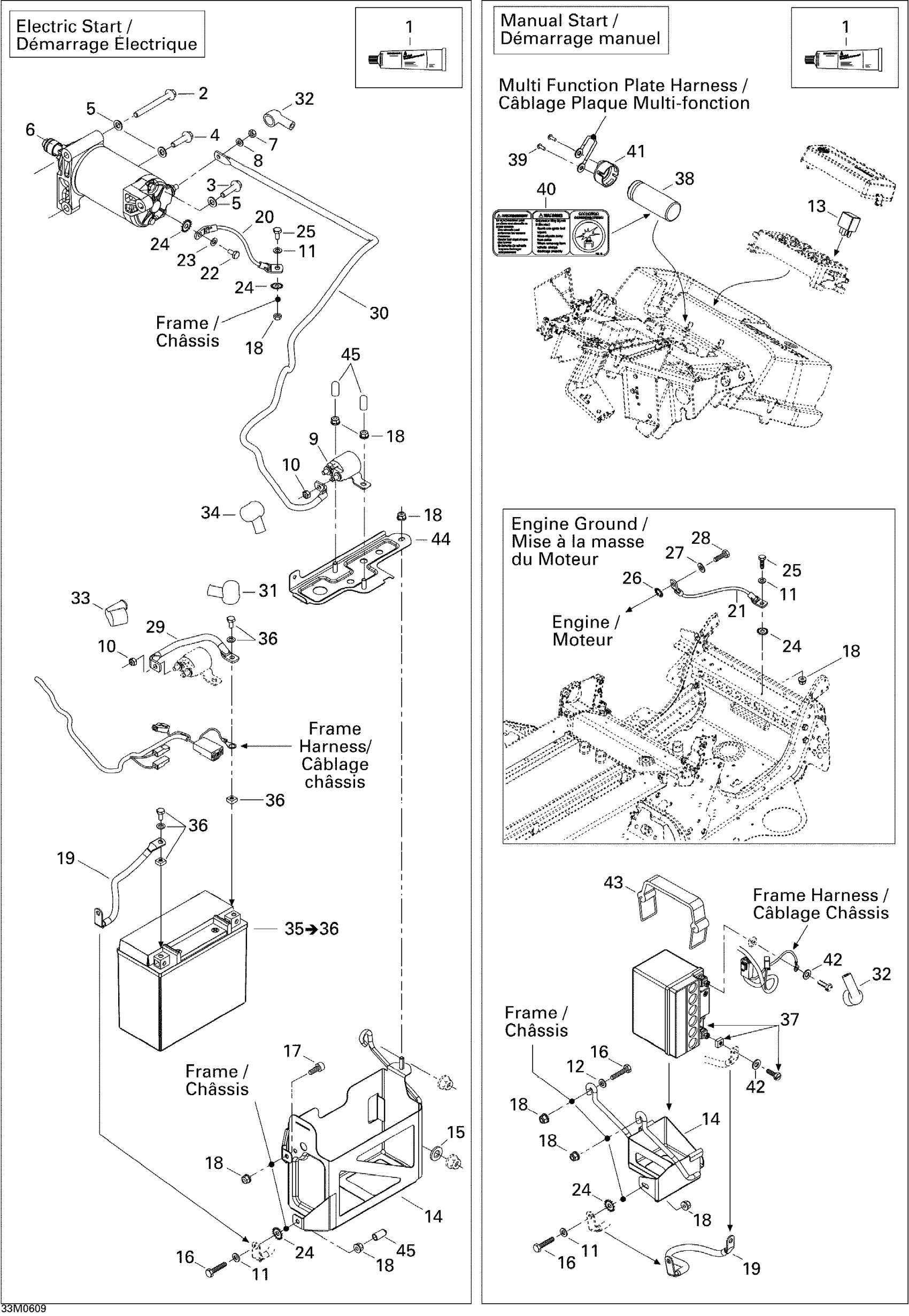

Ski-Doo MX Z 1000 SDI Renegade X, 2006 Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

5

Flat Washer With Teflon 8 mm

250200008

$3.58

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$1.78

8

Flat Washer 6 mm

234061410

$1.19

9

Starter Relay

515176011

$59.67

10

Elastic Stop Nut M6

232561414

$1.78

11

Flat Washer 6 mm

234061410

$1.19

12

Flat Washer

224061121

$0.51

13

Relais *Relay This part replaces 410113604.

515177672

$43.25

14

BATTERY SUPPORT - Call your local BRP dealership | Electric Start

515176048

Unavailable

14

Battery Support | Manual Start

515176142

Unavailable

15

Flat Washer M10 | 4X4

250200014

$1.34

16

Hex. Screw M6 X 25

207162544

$1.01

16

Hex. Screw M6 X 25

207162544

$1.01

17

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

19

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

20

GROUND WIRE - Call your local BRP dealership | Electric Start

515176277

Unavailable

21

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

22

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

23

Flat Washer 6 mm

234061410

$1.19

24

Lock Washer Serrated M6

250200041

$1.06

24

Lock Washer Serrated M6

250200041

$1.06

25

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

26

Serrated Lock Washer 8 mm

234481608

$1.06

27

Flat Washer 8 mm

234081410

$0.79

28

Hex. Screw M8 x 16

207181644

$1.00

29

Battery Wire

515175904

$17.88

30

BATTERY WIRE - Call your local BRP dealership | Electric Start

515176259

Unavailable

31

Protection Cap

570151000

$17.88

32

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

33

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

34

Protector Cap | XT

515175919

$16.39

35

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

36

Battery Bolt Kit

250000282

$3.39

37

Battery 12 Volt 4 Ah

415130961

Unavailable

38

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

39

Mechanical Screw | Manual Start

515176257

Unavailable

40

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

41

CAP - Call your local BRP dealership

515176211

Unavailable

42

Flat Washer M5

234051410

$0.51

43

Battery Strap

515176044

$16.39

44

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

45

Cap

515176141

$2.82
