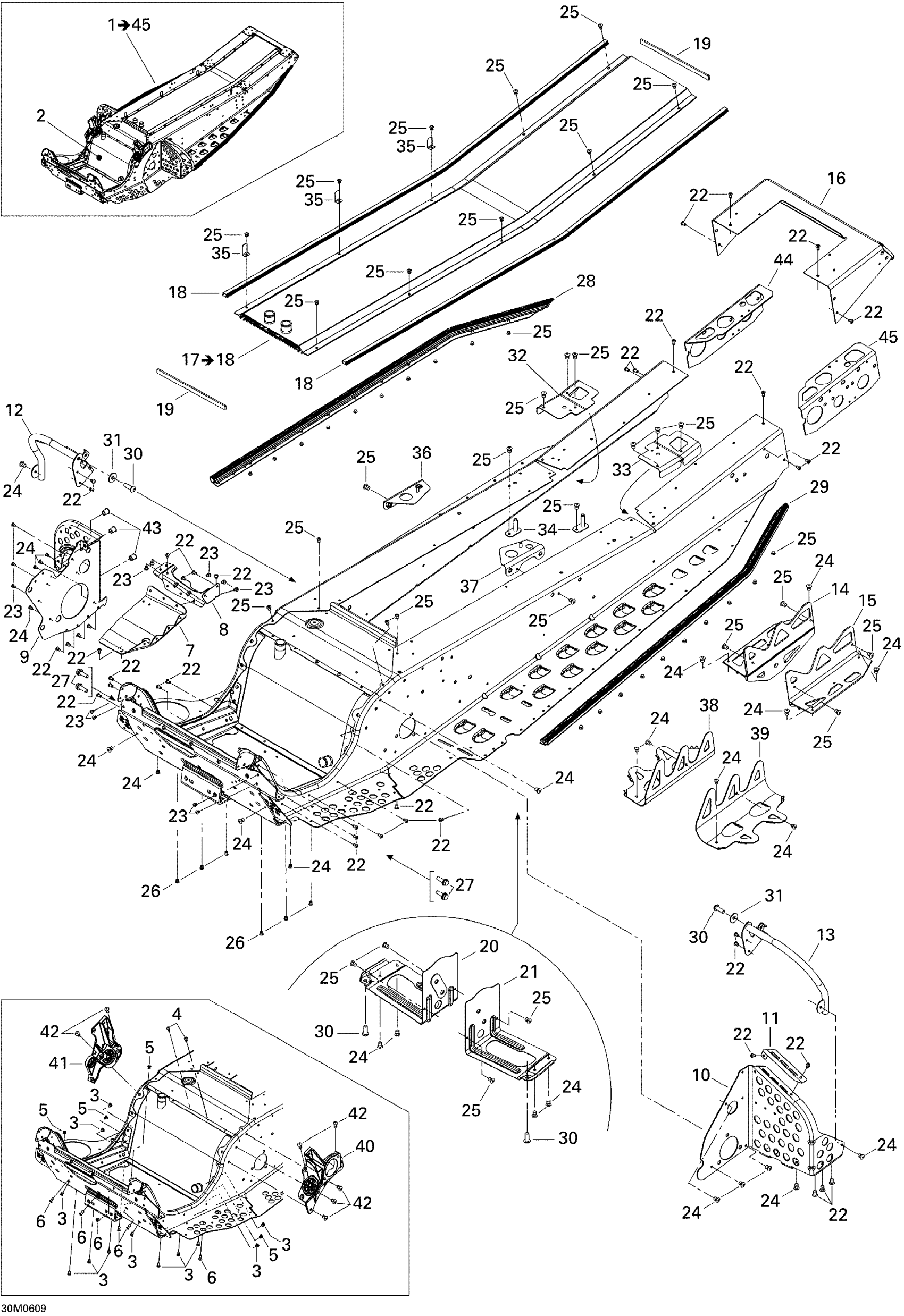

Ski-Doo MX Z 1000 SDI Renegade X, 2006 09- Frame Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 to 45

415129138

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Avex Rivet

390909200

$0.30

4

Avex Rivet

390909100

$0.30

5

Pop Rivet 3/16"

390402200

$0.35

6

Pop Rivet 3/16"

390402300

$0.75

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

12

RH Toe Hold Support

518324098

Unavailable

13

LH Toe Hold Support

518324097

Unavailable

14

RH Slide Bracket

518324686

Unavailable

15

LH Slide Bracket

518324687

Unavailable

16

Rear Cap

518323734

Unavailable

17

Rear Radiator | Includes 14 to 15

518324245

Unavailable

18

Radiator Protector

518324068

Unavailable

19

GASKET - Call your local BRP dealership | LTD

293200097

Unavailable

20

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518323952

Unavailable

21

LH Footrest Reinforcement

518323954

Unavailable

22

Avex Rivet

390909200

$0.30

23

Avex Rivet

390909100

$0.30

24

Pop Rivet 3/16"

390402200

$0.35

25

Pop Rivet 3/16"

390402400

$0.35

26

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

27

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

28

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

29

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

30

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

31

Flat Washer 8 mm

234082410

$1.47

32

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

33

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

34

Tank Bracket

518322791

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

37

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

38

RH TUNNEL LINER - Call your local BRP dealership

518324759

Unavailable

39

LH TUNNEL LINER - Call your local BRP dealership

518324760

Unavailable

40

LH Engine Support

518323715

Unavailable

41

RH ENGINE SUPPORT - Call your local BRP dealership

518323716

Unavailable

42

Hemlock Rivet 6.5 mm

293150120

$7.41

43

Insert

293450275

$12.99

44

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

45

LH Reinforcement

518324960

Unavailable
