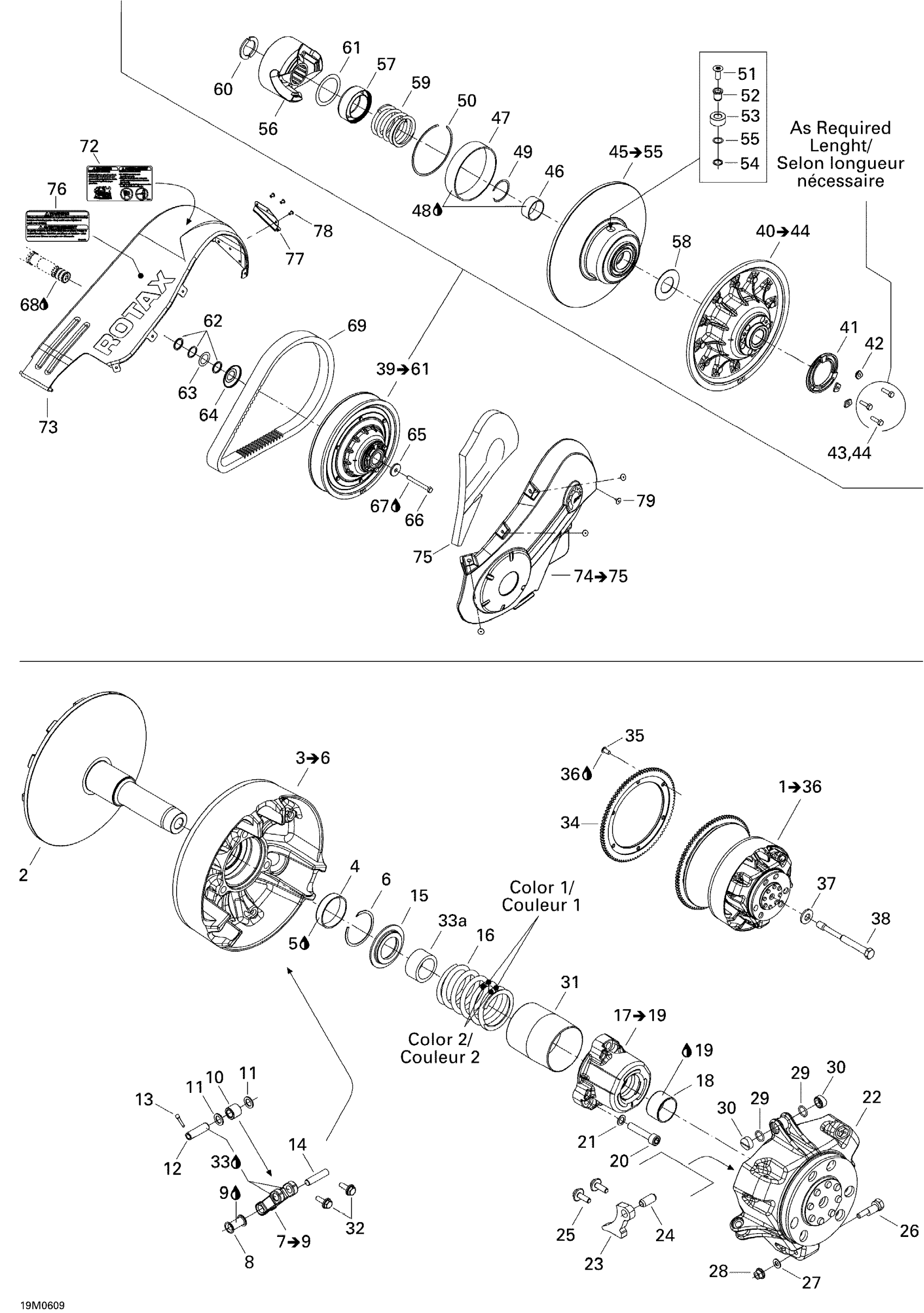

Ski-Doo MX Z 1000 SDI Renegade X, 2006 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222966

$459.99

3

Sliding Flange Ass'y

417223093

$299.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

LEVER ASS'Y - Call your local BRP dealership | Includes 7 to 9

417222812

Unavailable

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Threaded Pin, M6 | High Altitude

417222595

$23.49

13

Pin Screw

417222813

$22.49

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

SPRING - Call your local BRP dealership

415074800

Unavailable

17

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

GOVERNOR CUP - Call your local BRP dealership

417222634

Unavailable

23

RAMP 434 - Call your local BRP dealership

417222815

Unavailable

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Guard

417009205

$21.99

32

Serrated Hex. Flange Bolt M6

250000416

$4.23

33

Loctite 609, 10 ml

413703100

$26.99

33a

BUSHING - Call your local BRP dealership

417222826

Unavailable

34

Ring Gear

417222951

$319.99

35

Torx Screw M8 X 16

250000751

$6.11

36

Loctite 271, 10 ml

293800005

$26.99

37

Spring Washer 14 mm

250200006

$6.99

38

DRIVE PULLEY BOLT - Call your local BRP dealership

417300296

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.15

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

Sliding Flange Ass'y

417127014

Unavailable

46

BUSHING - Call your local BRP dealership

417126901

Unavailable

47

BUSHING - Call your local BRP dealership

417126902

Unavailable

48

Loctite, Black Max, 3 ml

413408300

$26.99

49

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

50

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

51

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

52

Stud

417127015

$46.99

53

Roller

417126892

$36.99

54

V-CIRCLIP - Call your local BRP dealership

417126823

Unavailable

55

WASHER - Call your local BRP dealership

417126797

$6.99

56

Cam Ass'y

417126933

Unavailable

57

GUARD - Call your local BRP dealership

417126381

Unavailable

58

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

59

Release Spring, Purple | North America

414978300

$33.99

60

HALF KEY - Call your local BRP dealership

417126734

Unavailable

61

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

62

Spacer

417300252

$5.49

62

Spacer

417300265

$2.29

63

Shim

504112000

$8.59

64

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

65

Strength Washer

517302322

$12.63

66

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

67

Loctite 243, 10 ml

293800060

$21.49

68

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

69

Drive Belt

417300189

$219.99

72

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

73

Belt Guard

417300256

Unavailable

74

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

75

Foam

417300246

Unavailable

76

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

77

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

78

Avex Rivet

390909200

$0.30

79

Pop Rivet 3/16"

293150103

$0.55
